Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

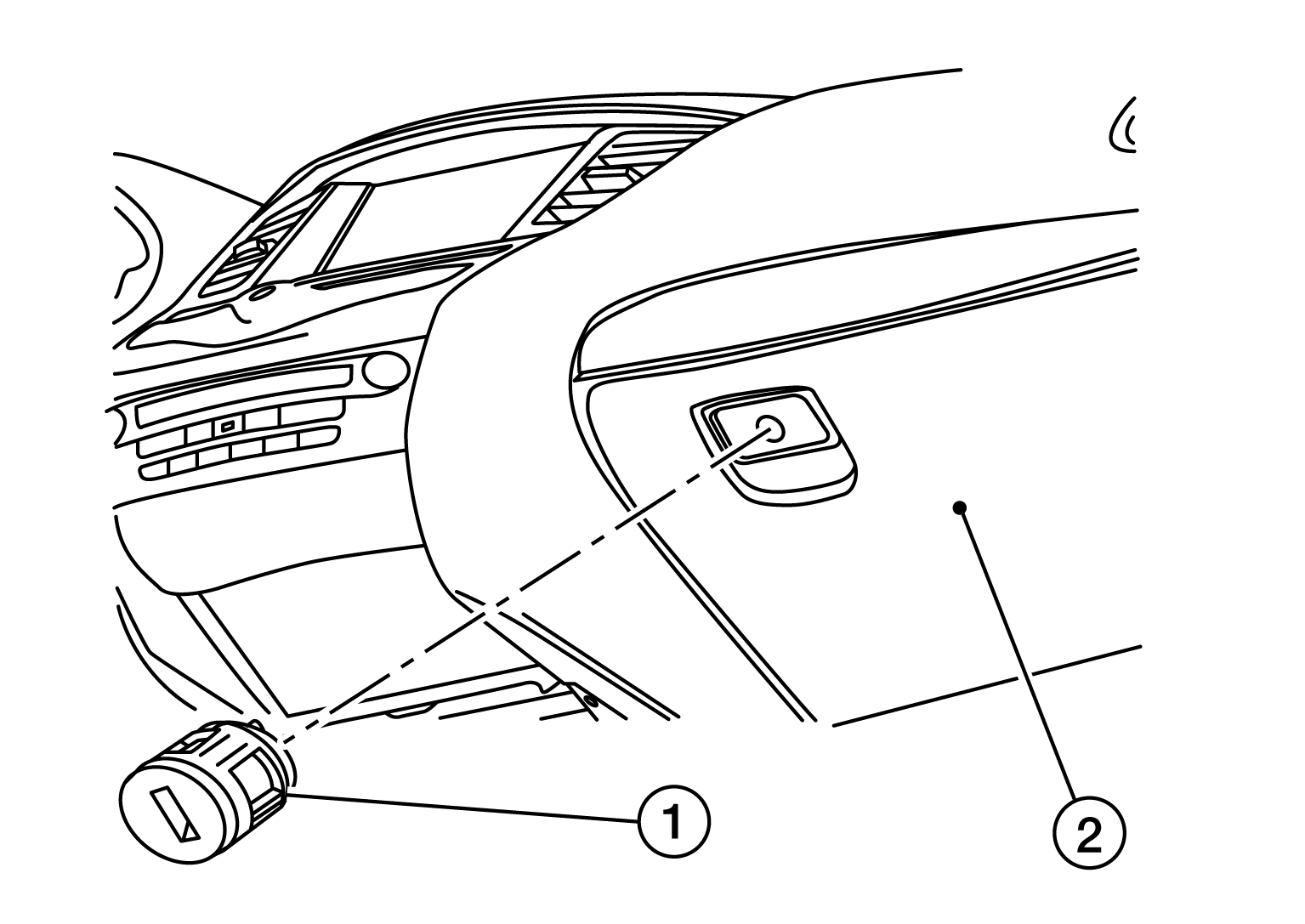

Remove glove box assembly (2) to access glove box lid key cylinder (1). Refer to Removal and Installation .

Courtesy of NISSAN NORTH AMERICA, INC.

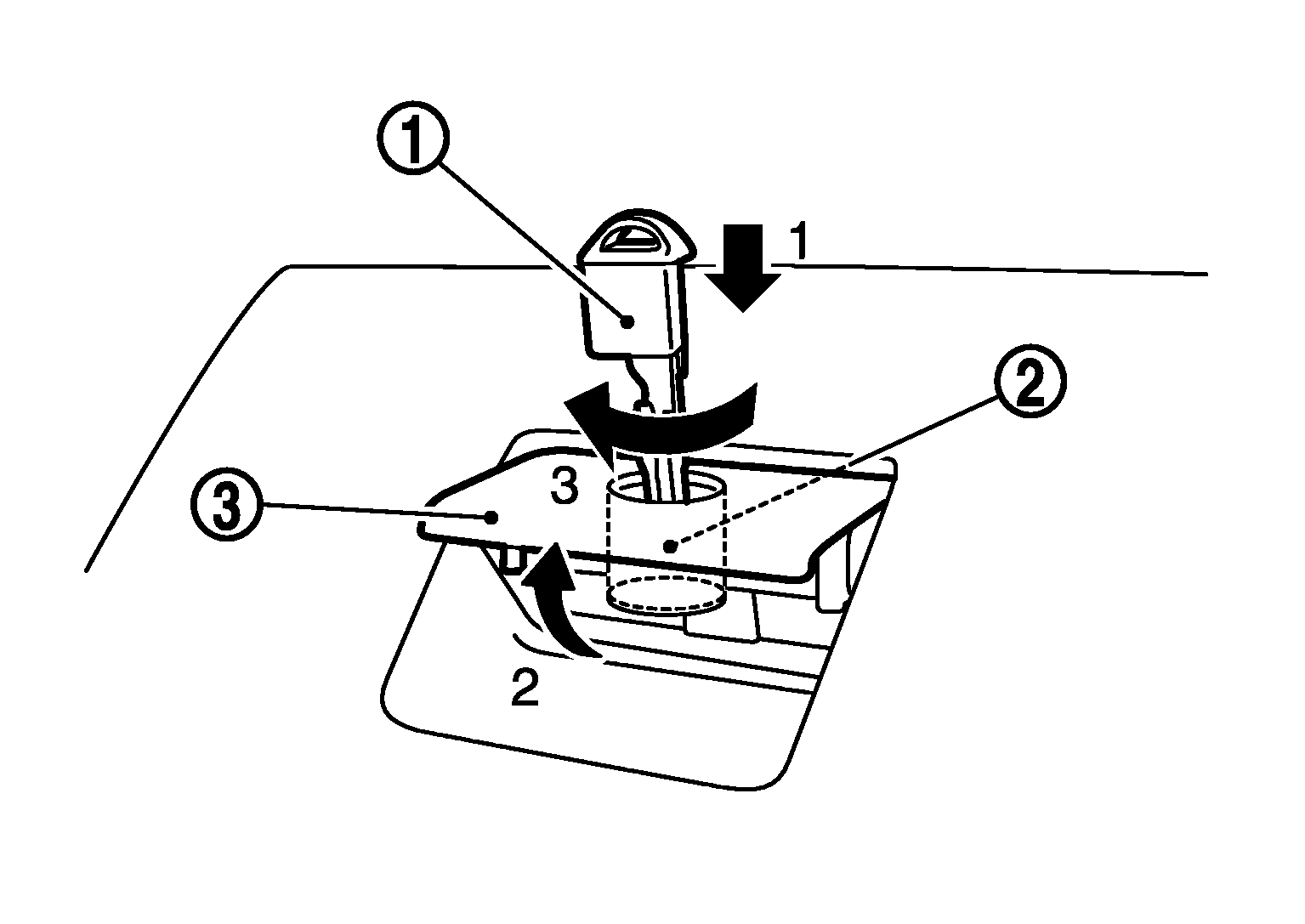

Insert key (1) into glove box lid lock cylinder (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Pull upward on glove box lid release handle (3).
Rotate key (1) and turn glove box lid key cylinder (2) to the lock position.

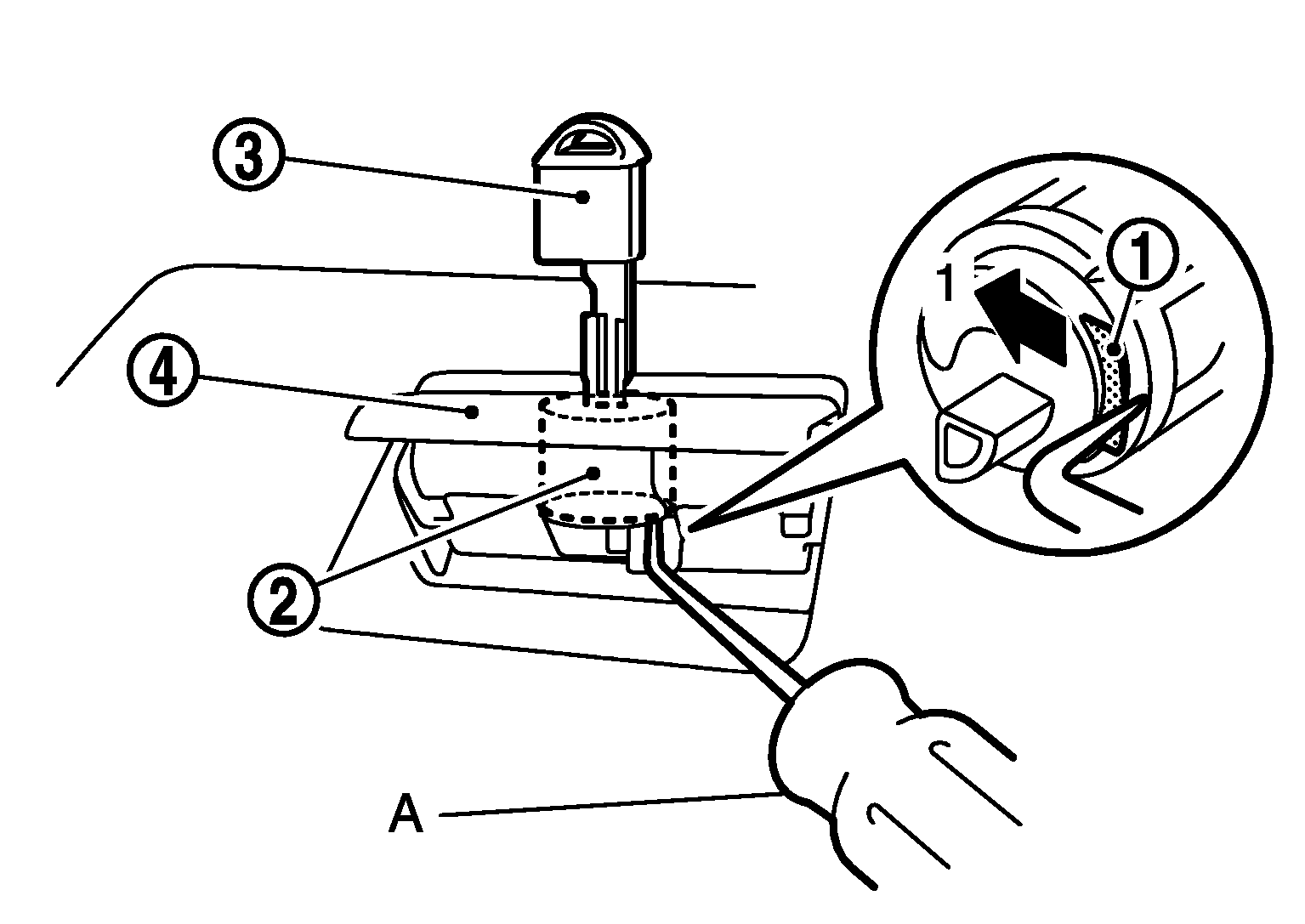

Press tumbler stopper (1) into glove box lid lock cylinder (2) using a suitable tool (A), and then remove key (3) and glove box lid lock cylinder together from glove box lid release handle (4).

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: When removing glove box lid lock cylinder (2) note the position of cylinder to glove box lid release handle (4).

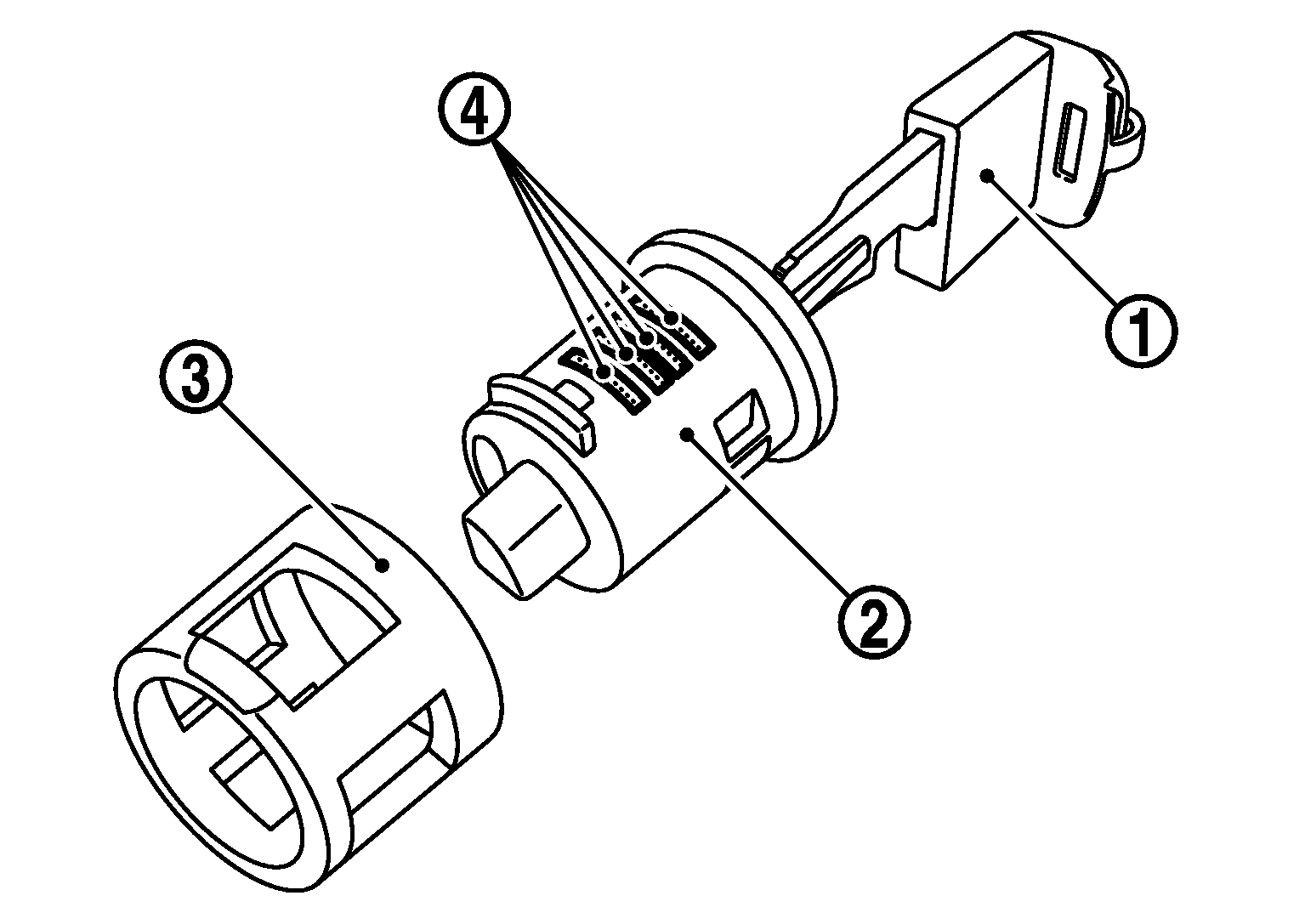

Remove sleeve (3) from glove box lid release handle and then install sleeve to glove box lid lock cylinder.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: When removing sleeve note the position of sleeve to glove box lid release handle.

CAUTION: Do not pull out key (1) from glove box lid lock cylinder (2) while sleeve (3) is removed. Otherwise, tumblers (4) may be lost from glove box lid lock cylinder.
