Removal and Installation

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

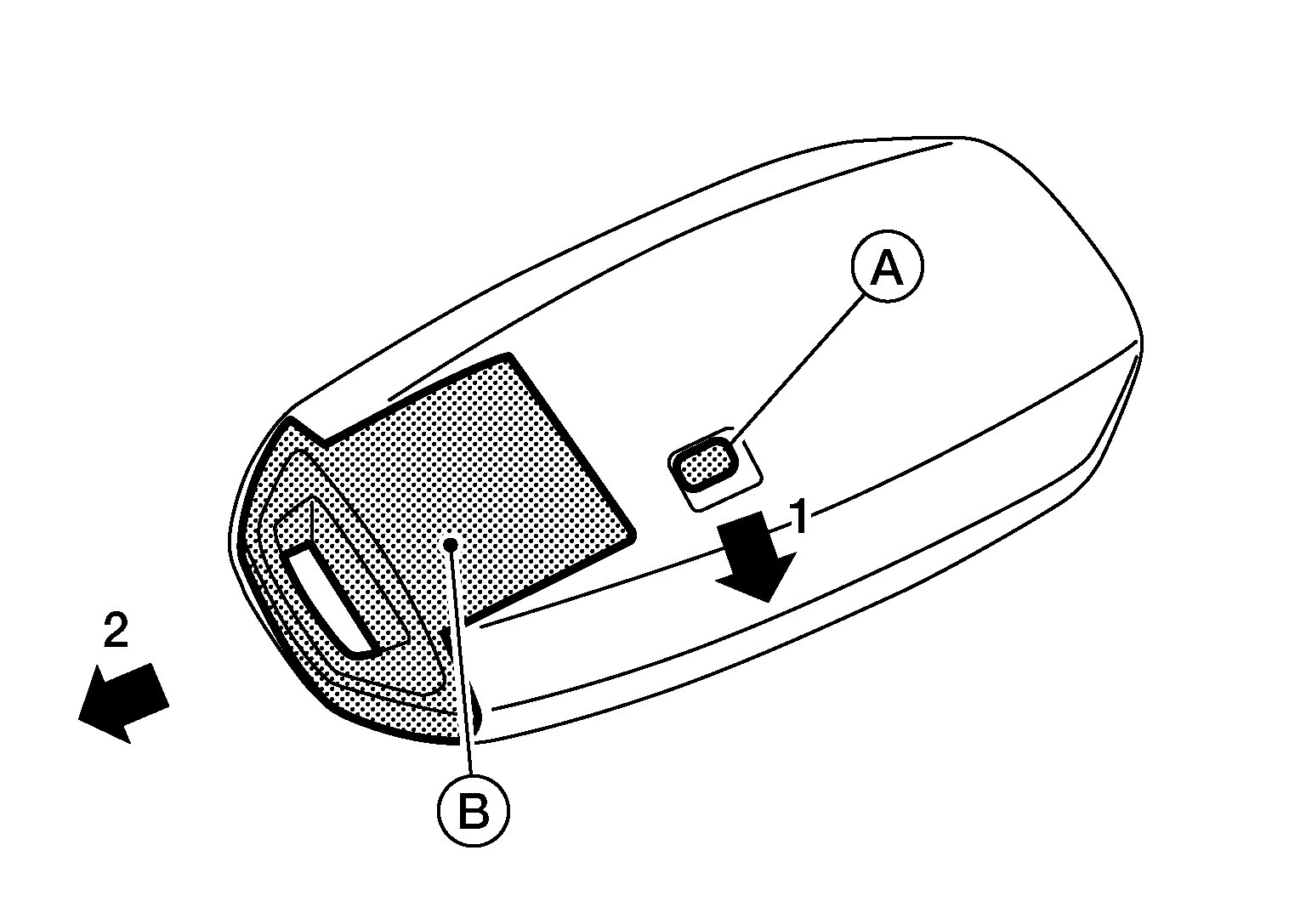

Release the lock knob (A) on the back of the Intelligent Key and remove the key (B) in direction shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

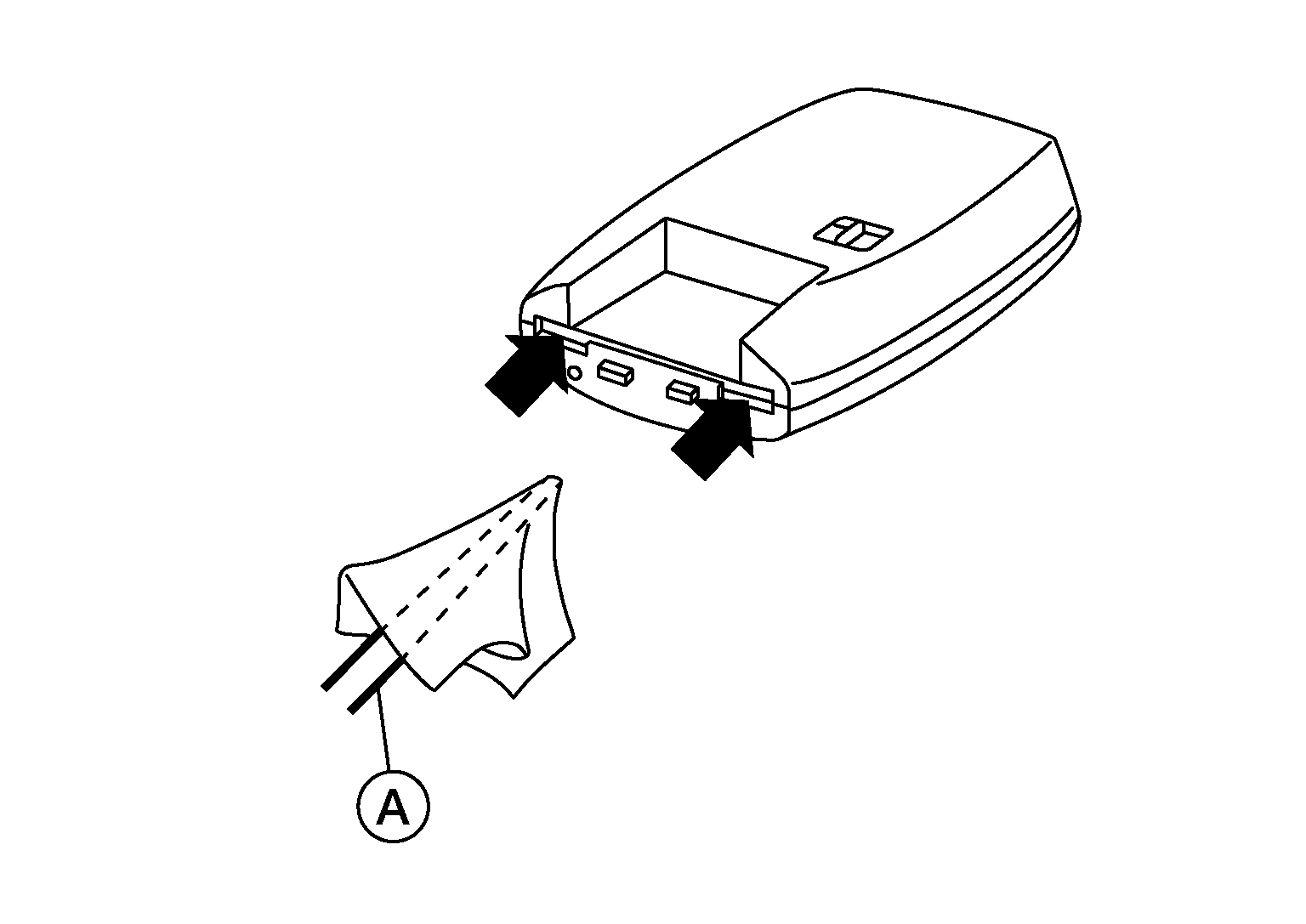

Insert a suitable tool (A) wrapped with a cloth into the slits on the corners as shown below ( ) and twist it to separate the upper part from the lower part.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Do not touch the circuit board or battery terminal.
- The key fob is water-resistant. However, if it does get wet, immediately wipe it dry.

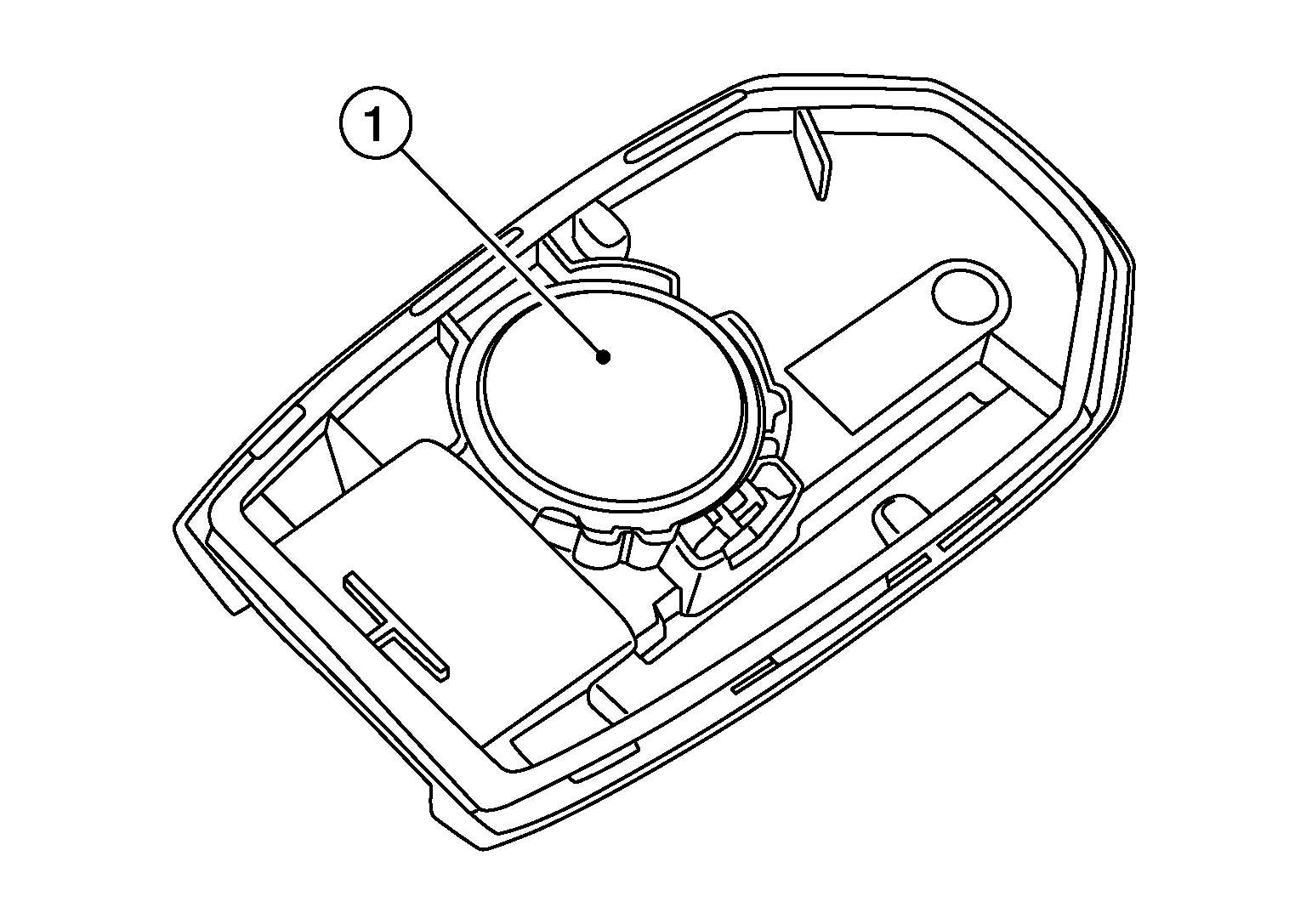

Replace the battery (1) with a new one.

CAUTION:

Hold the battery by the edges. Holding the battery across the contact points will seriously deplete the storage capacity.
Make sure that the (+) side faces the bottom of the case.

Courtesy of NISSAN NORTH AMERICA, INC.

Battery replacement

:Coin-type lithium battery (CR2032)

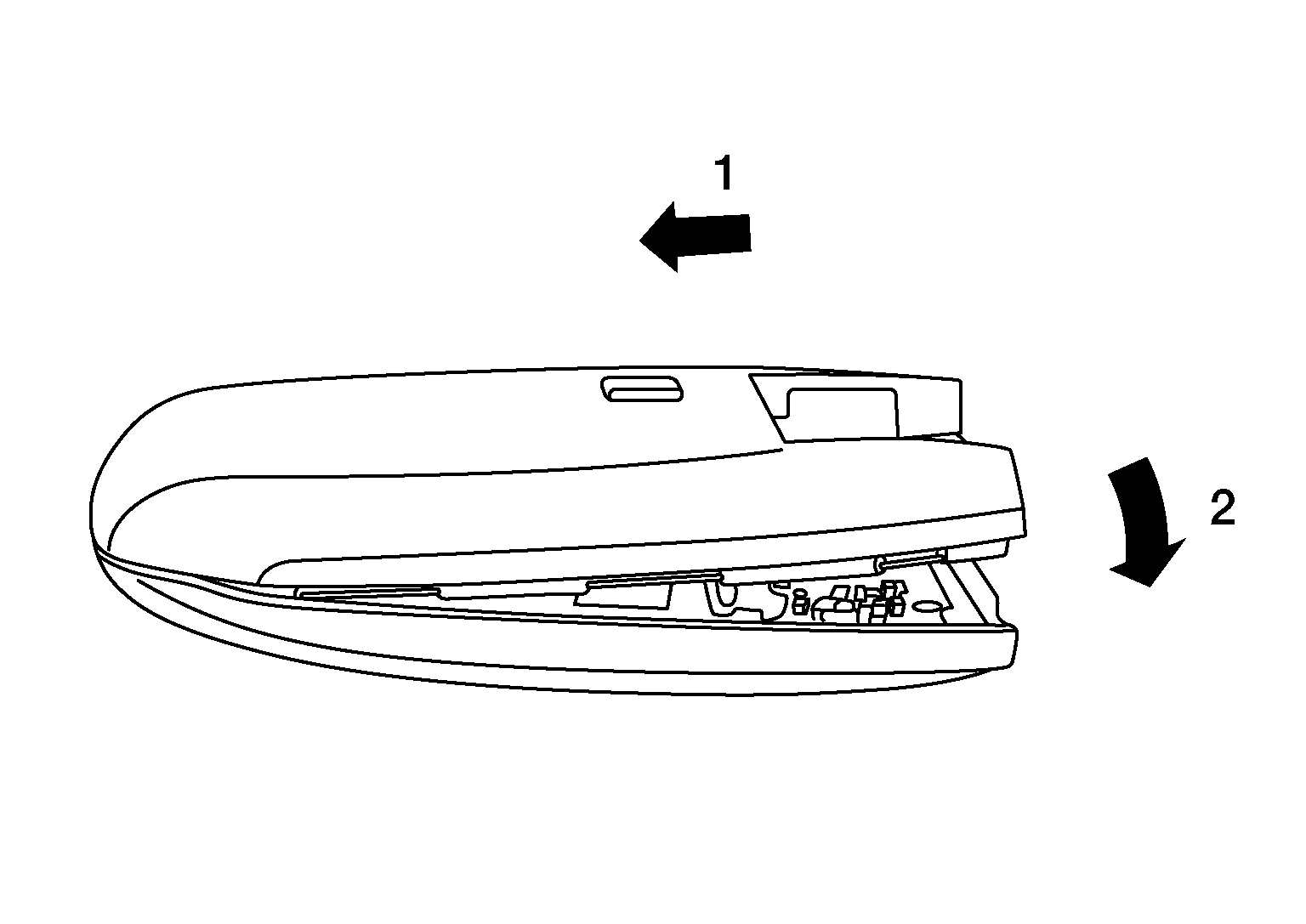

Align the tips of the upper and lower parts, and then push them together as shown below, until unit is securely closed.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- When replacing battery, keep dirt, grease, and other foreign materials off the electrode contact area.
- After replacing the battery, check that all Intelligent Key functions work normally.
Place the key back into its housing.
