Hood Stay: Disposal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

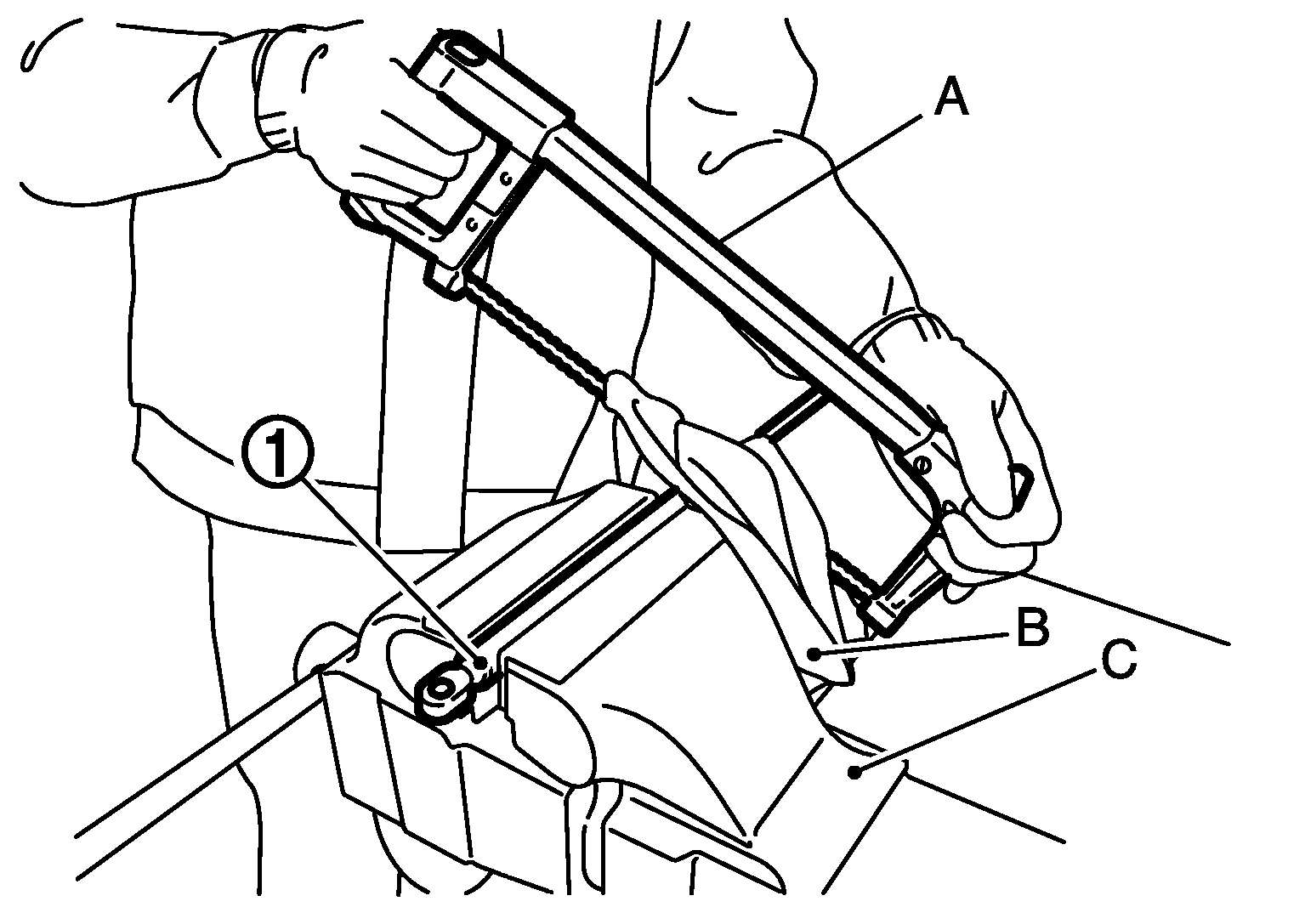

- Fix hood stay (1) using a vise (C).
- Using a hacksaw (A) slowly make two holes in the hood stay (1), in numerical order as shown in the figure, above.CAUTION:
- When cutting a hole on hood stay (1), always cover hacksaw (A) with a shop cloth (B) to avoid scattering metal fragments or oil.
- Wear eye protection (safety glasses).
- Wear gloves.

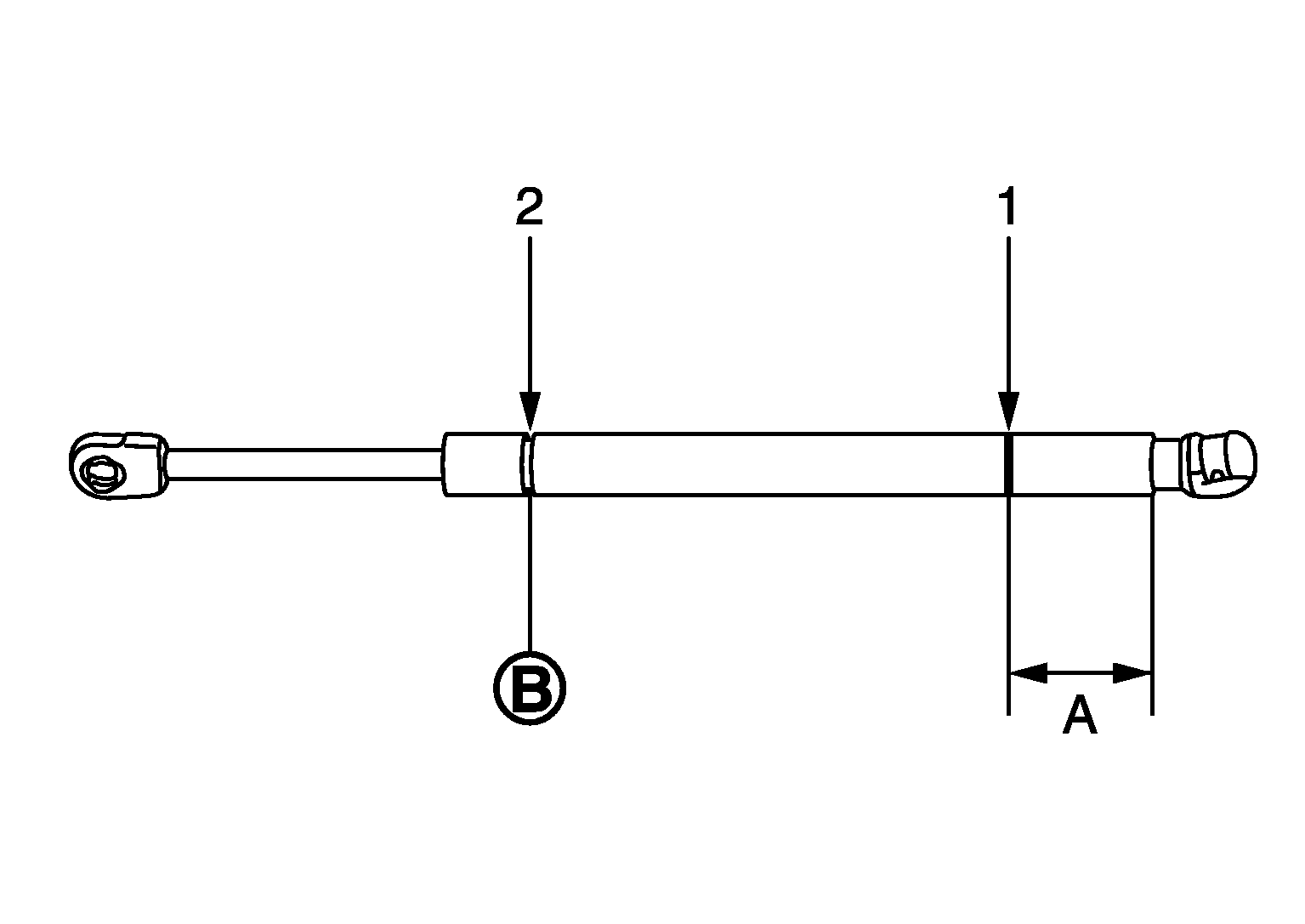

A:
20 mm (0.79 in)
B:
Cut at the groove.
