Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

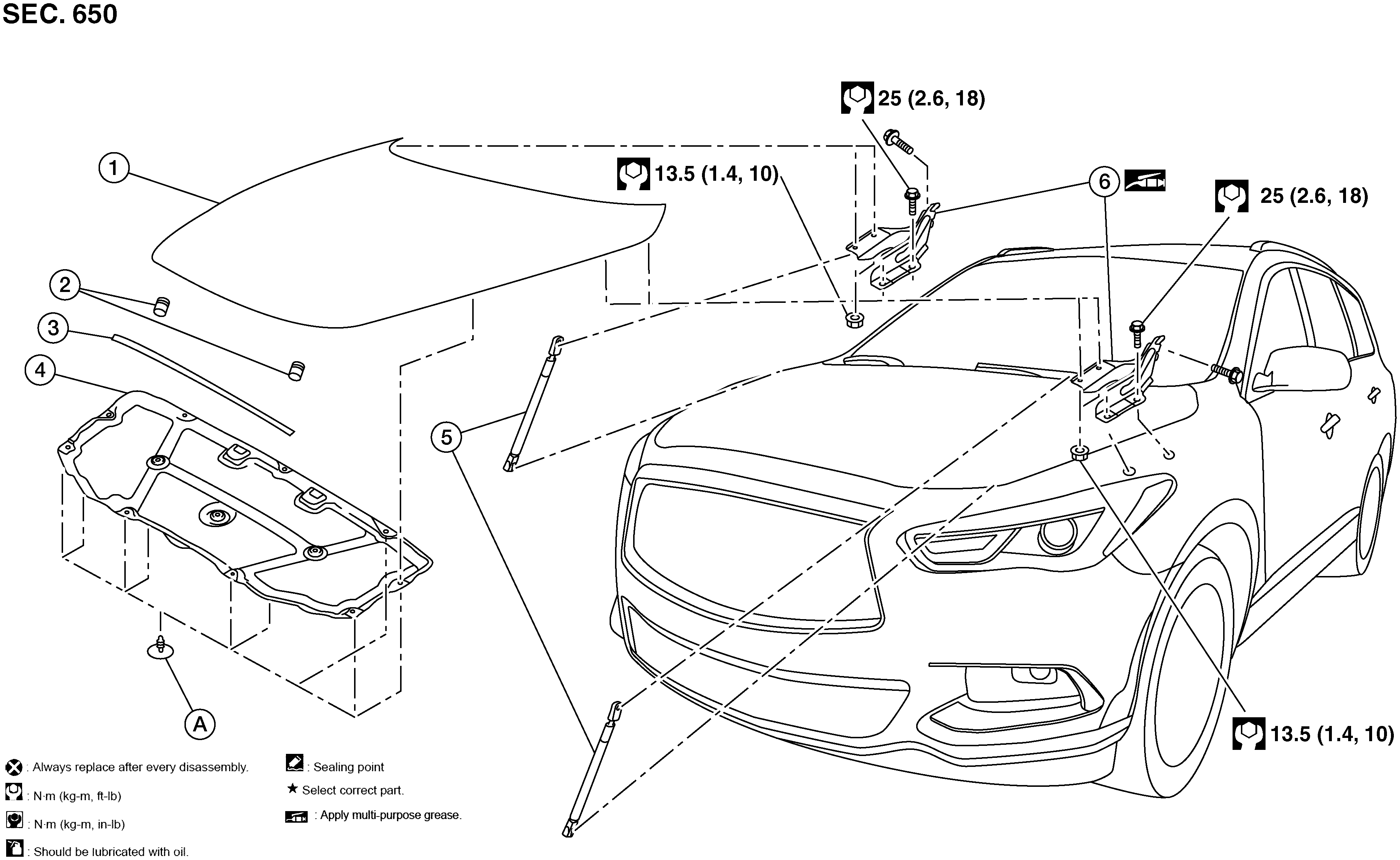

Fig 1: Hood Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Hood assembly	2.	Hood bumper rubber	3.	Hood seal
4.	Hood insulator	5.	Hood stay (LH/RH)	6.	Hood hinge (LH/RH)
A.	Clip
