Removal And Installation: Hood: Adjustment: Notes
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Hood assembly |
2. |
Front bumper fascia |
3. |
Front fender |
|
4. |
Hood bumper rubber |
5. |
Hood hinge |
6. |
Hood lock assembly |

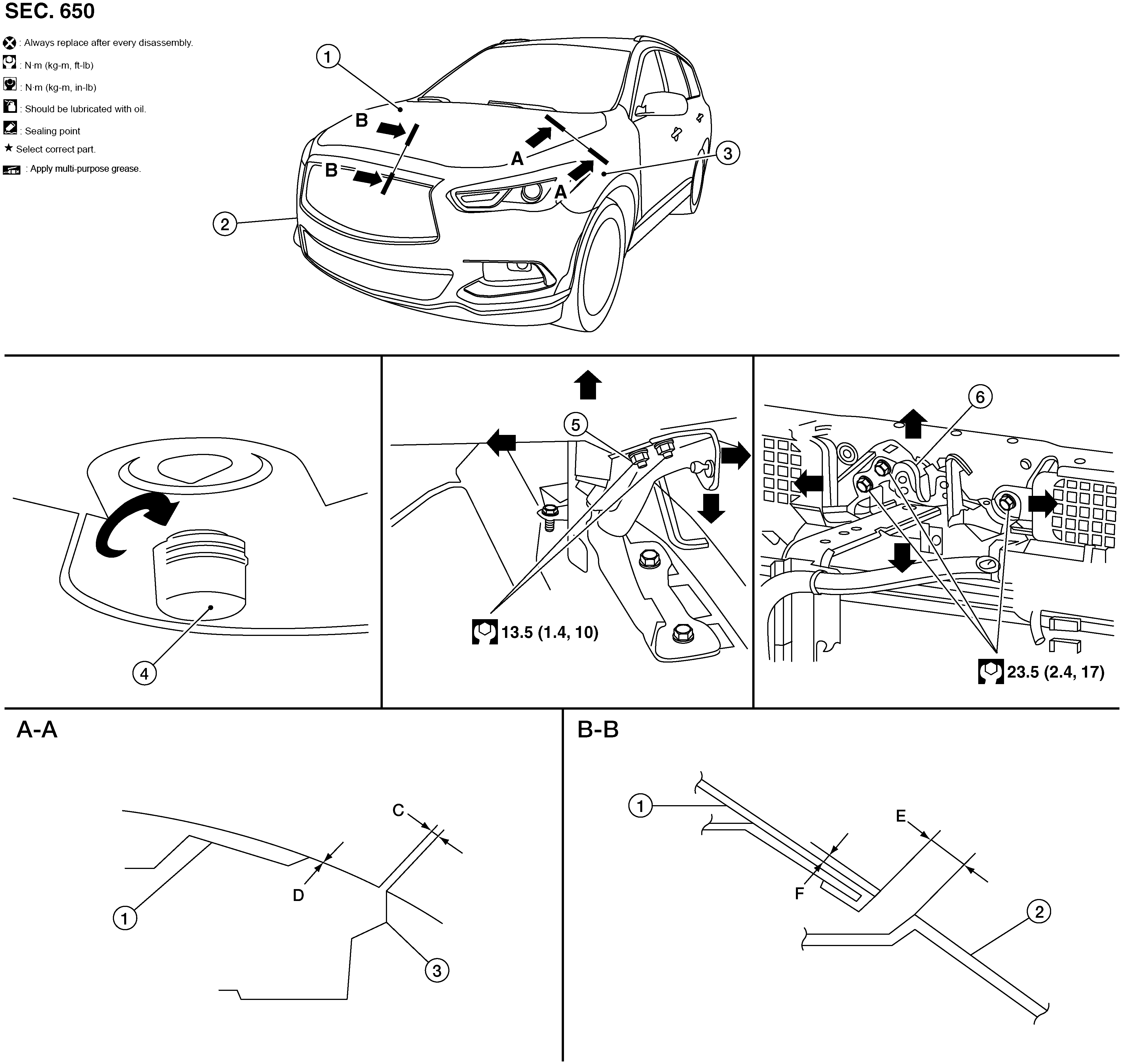

Check the clearance and the surface height between hood and each part by visual inspection and tactile feel.
If the clearance and the surface height are out of specification, adjust them according to the adjustment procedures.
Unit: mm (in)
|
Portion |
Section |
Item |
Measurement |
Standard |
Parallelism |
|
Hood - Front fender |
A - A |
C |
Clearance |
3.5 +/- 1.0 (0.14 +/- 0.04) |
≤ 1.5 (0.06) |
|
D |
Surface height |
1.0 +/- 1.5 (0.04 +/- 0.06) |
-- |
||
|
Hood - Front bumper fascia |
B - B |
E |
Clearance |
4.1 +/- 2.0 (0.16 +/- 0.08) |
< 2.0 (0.08) |
|
F |
Surface height |
1.0 +/- 1.5 (0.04 +/- 0.06) |
< 2.0 (0.08) |
