Height Adjustment
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen the hood lock assembly bolts.
- Adjust the surface height of hood assembly to front bumper fascia and front fender according to the specified values by rotating hood bumper rubber.
- Temporarily tighten hood lock assembly bolts.

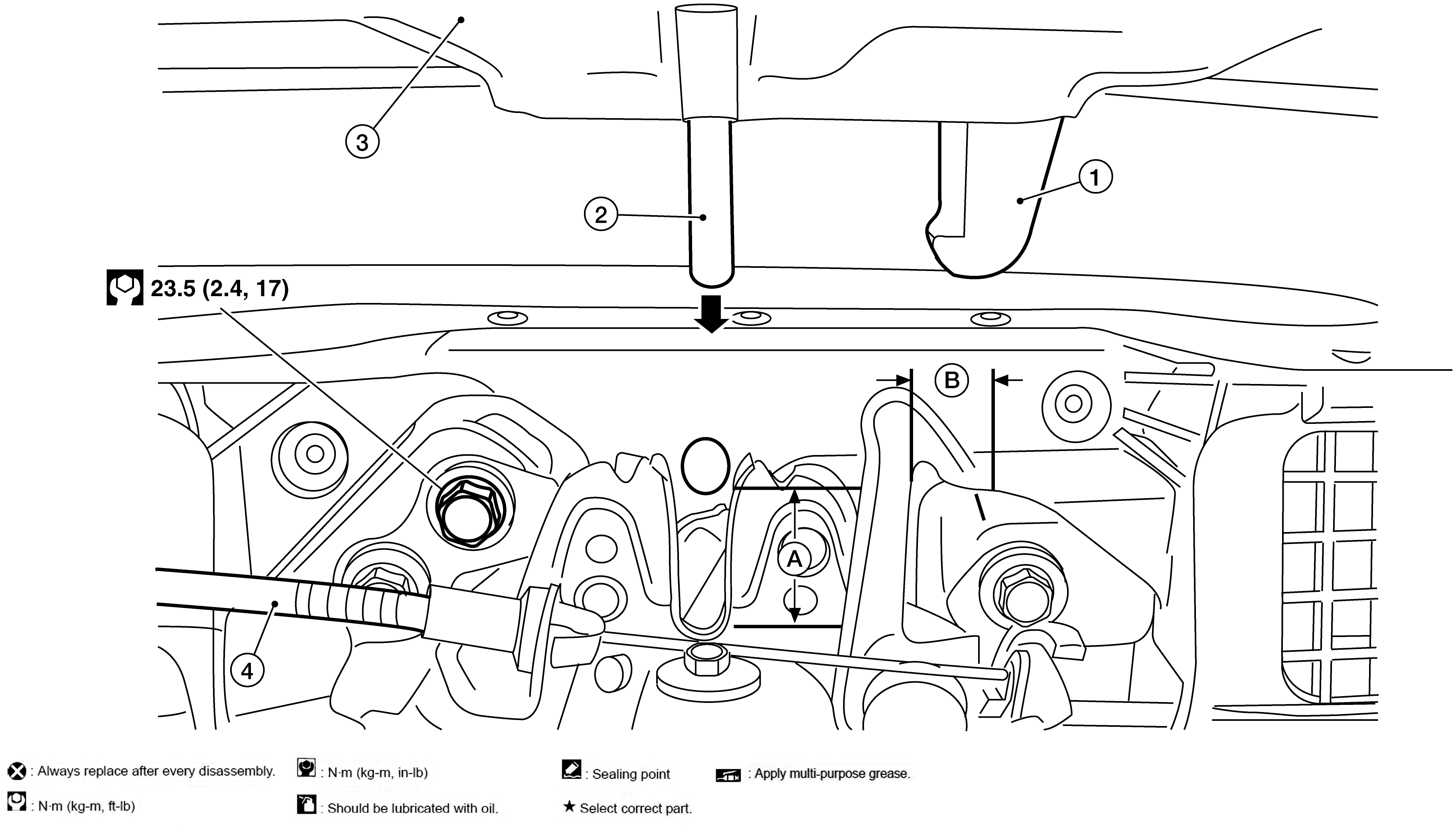

- Adjust (A) and (B) as shown to the following value with hood's own weight by dropping it from approximately 200 mm (7.87 in) height or by pressing hood lightly [approximately 29 N (3.0 kg-f, 6.5 ft-lb)].
1.
Secondary striker
2.
Primary striker
3.
Hood assembly
4.
Secondary latch control cable
A.
20 mm (0.79 in)
B.
6.8 mm (0.27 in)
- After adjustment, tighten hood hinge nuts and bolts to the specified torque.CAUTION:
- Check hood hinge rotating part for poor lubrication. If necessary, apply a suitable multi-purpose grease.
- After adjusting, apply touch-up paint (body color) onto the head of hood hinge bolts and nuts.
