Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

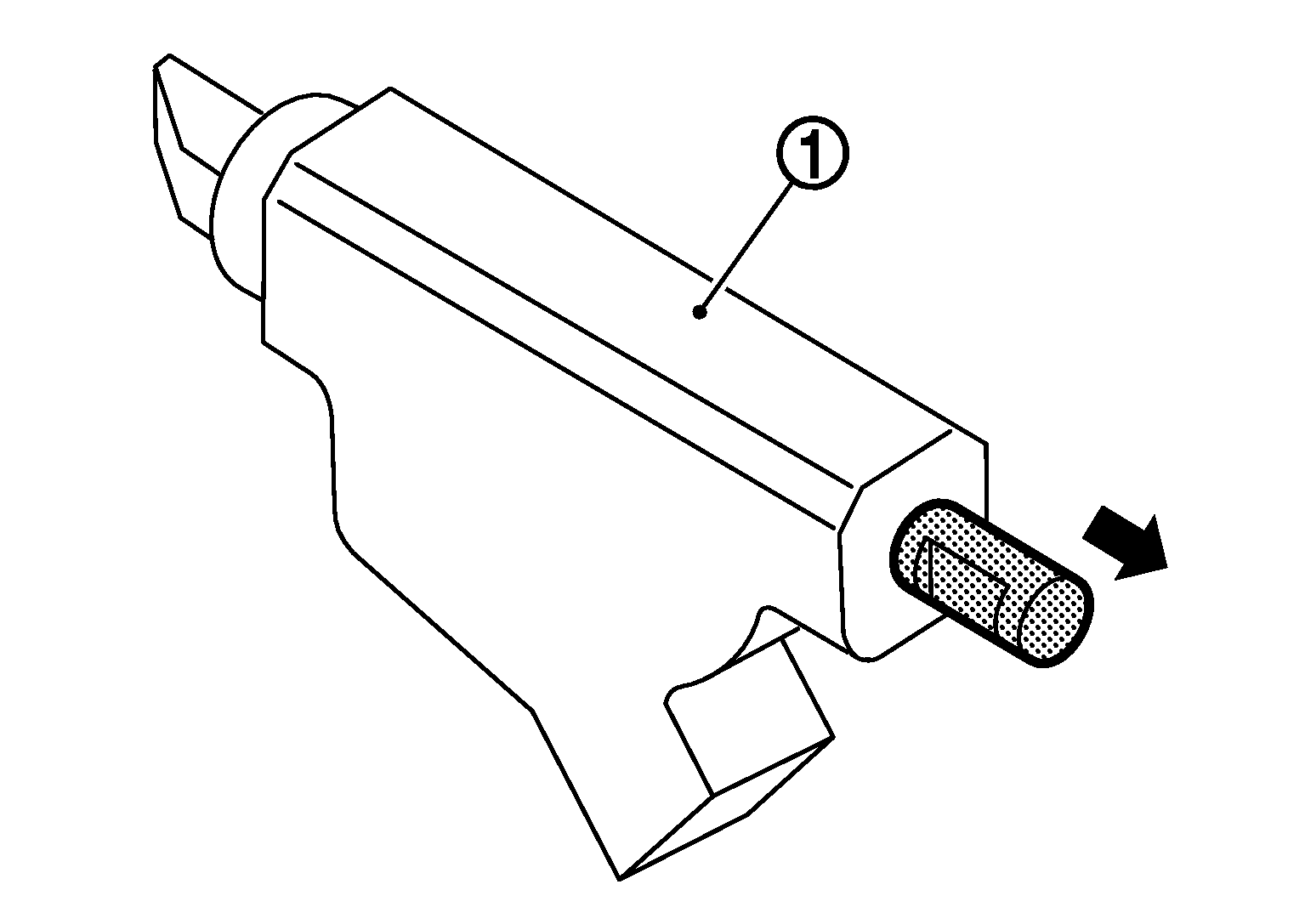

NOTE: When fuel filler lid lock actuator [1 (if equipped)] is not functioning correctly, pull the rod from inside the vehicle to open fuel filler lid.

Courtesy of NISSAN NORTH AMERICA, INC.

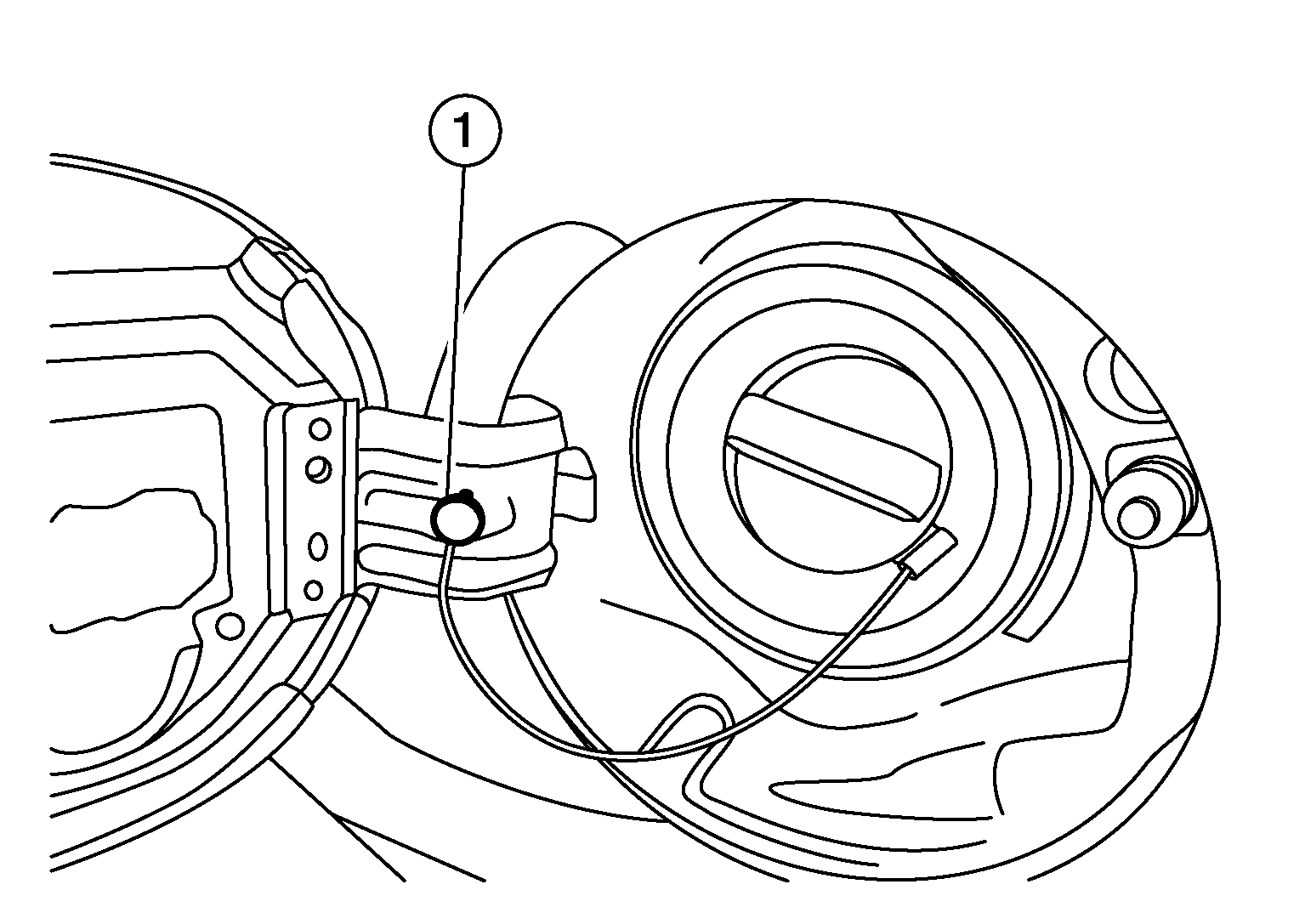

Remove fuel cap pin (1).

Courtesy of NISSAN NORTH AMERICA, INC.

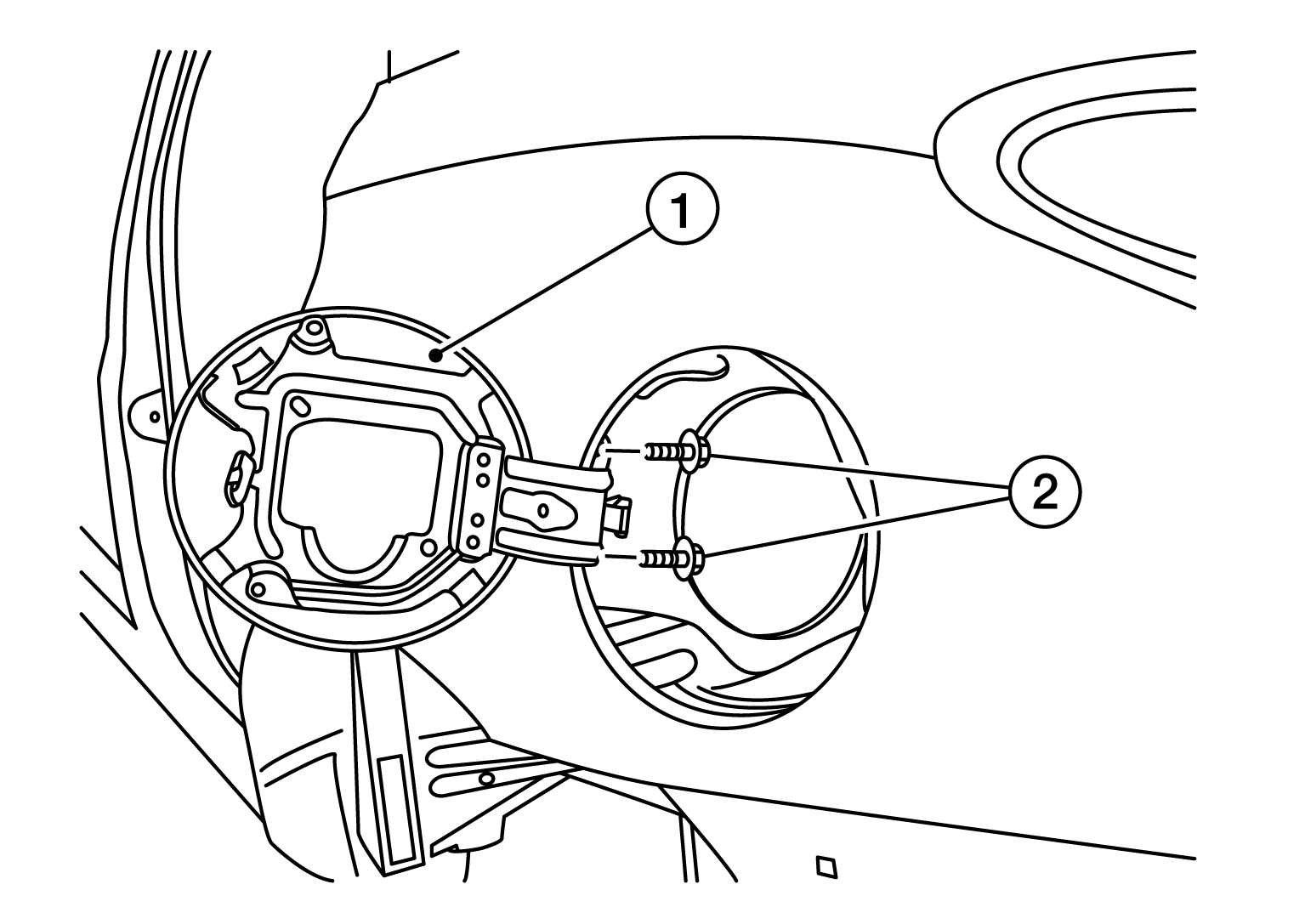

Remove bolts (2) and fuel filler lid (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove luggage side lower finisher (LH). Refer to Removal and Installation .
Rotate lock nut counterclockwise and then remove lock nut.
Remove fuel filler lid lock actuator (if equipped) by releasing the pawl.
Disconnect harness connector from fuel filler lid lock actuator (if equipped).
Remove fuel filler lock (if equipped) by releasing the pawls.
