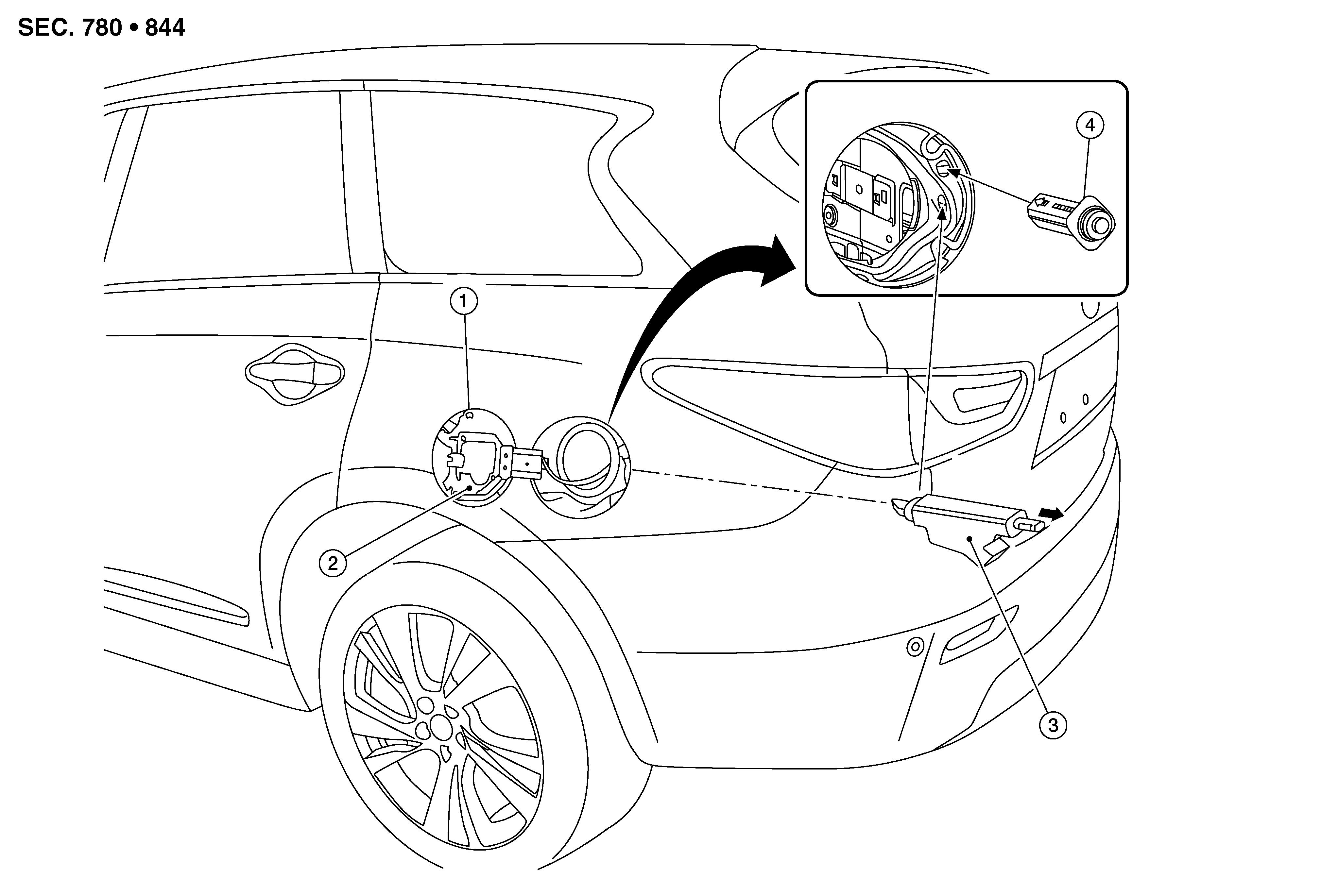

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Fuel lid bumper rubber
|
2.
|
Fuel filler lid
|
3.
|
Fuel filler lid lock actuator (if equipped)
|
|
4.
|
Fuel filler lid lock (if equipped)
|
