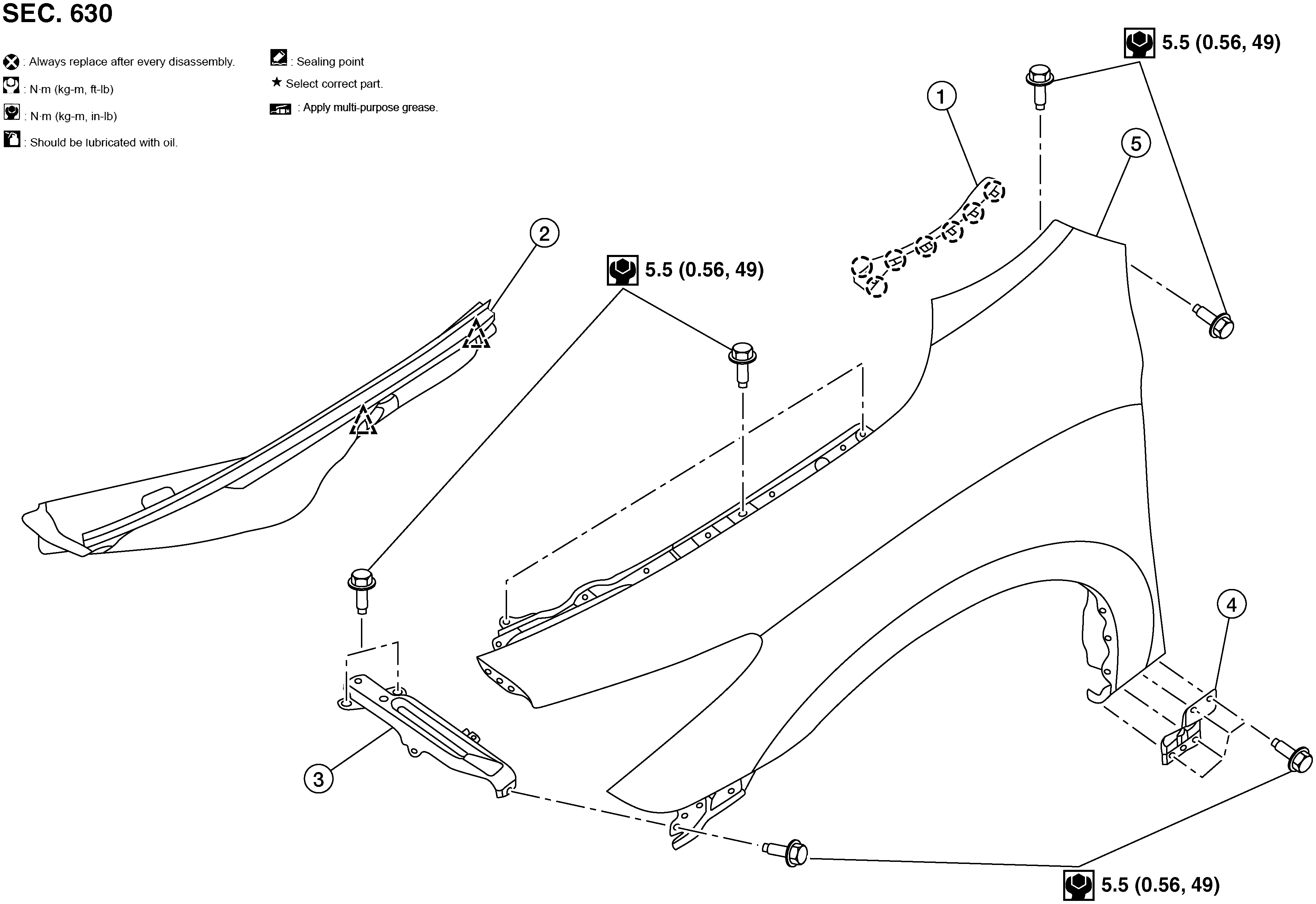

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Cowl top side trim cover
|
2.
|
Hood Ledge finisher
|
3.
|
Front fender bracket
|
|
4.
|
Front fender lower bracket
|
5.
|
Front fender
|
|
Pawl
|
|
|
Clip
|
