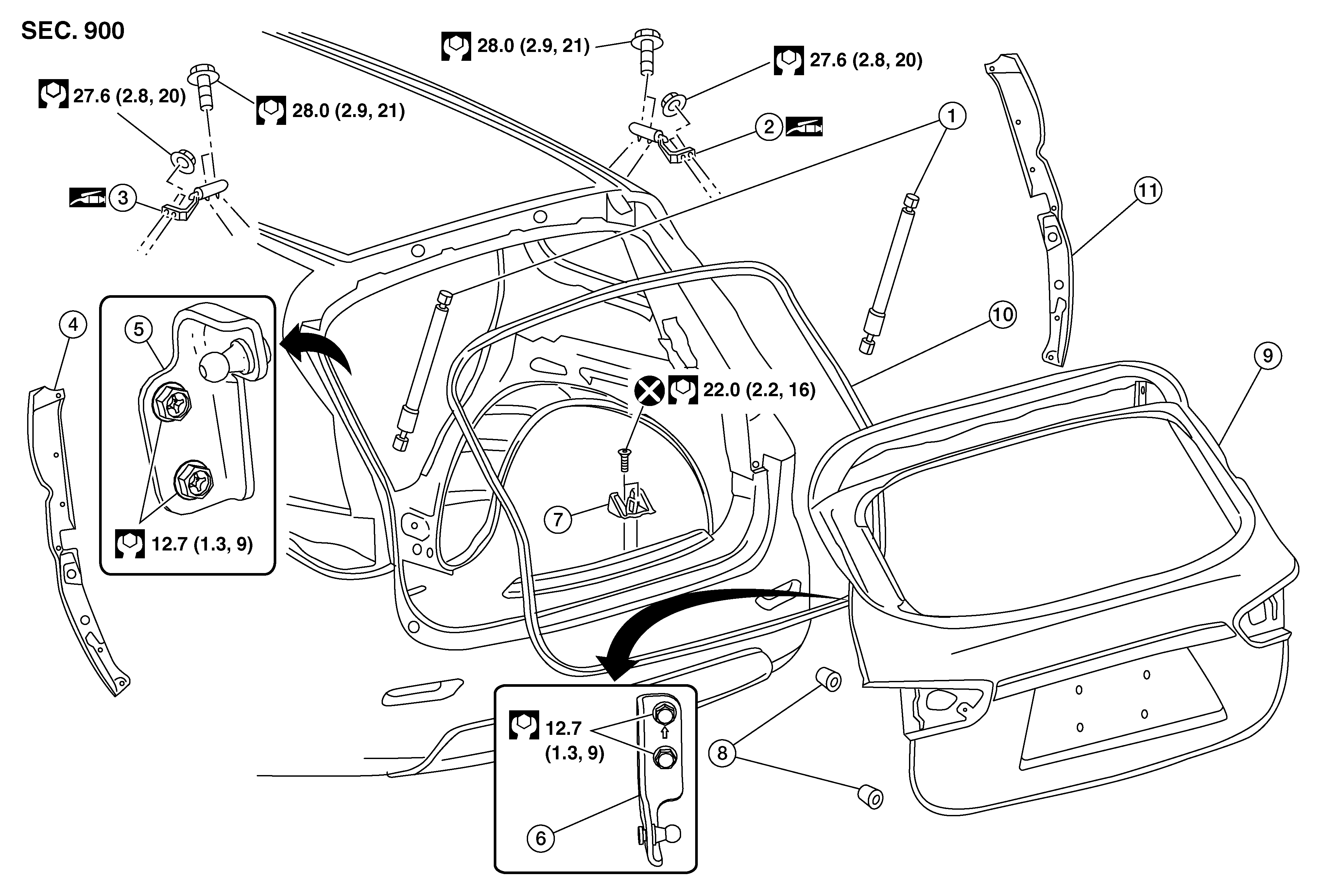

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Spindle unit (LH/RH)
|
2.
|
Back door hinge (RH)
|
3.
|
Back door hinge (LH)
|
|
4.
|
Back door touch sensor (LH)
|
5.
|
Spindle unit upper hinge
|
6.
|
Spindle unit lower hinge
|
|
7.
|
Back door striker
|
8.
|
Bumper rubber
|
9.
|
Back door assembly
|
|
10.
|
Back door weatherstrip
|
11.
|
Back door touch sensor (RH)
|
