Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

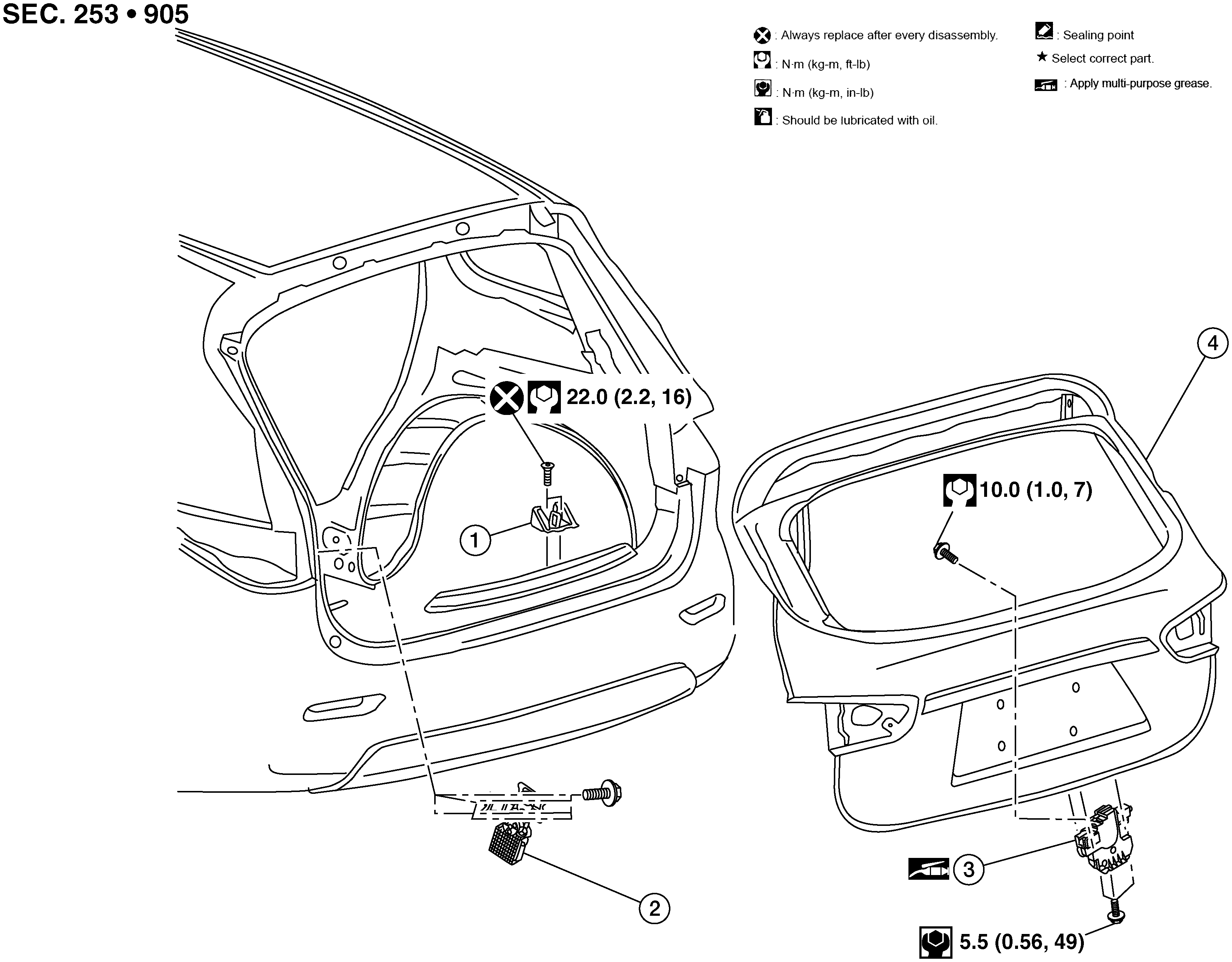

Fig 1: Back Door Lock Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Door striker	2.	Automatic back door control module	3.	Back door lock
4.	Back door panel
