Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to Removal and Installation .
  2. Remove the steering wheel. Refer to Removal and Installation .
  3. Remove the steering column upper and lower covers. Refer to Removal and Installation .
  4. Disconnect the harness connectors (A) from the spiral cable and the harness connector (B) from the steering angle sensor.
    GNSDB124268Courtesy of NISSAN NORTH AMERICA, INC.

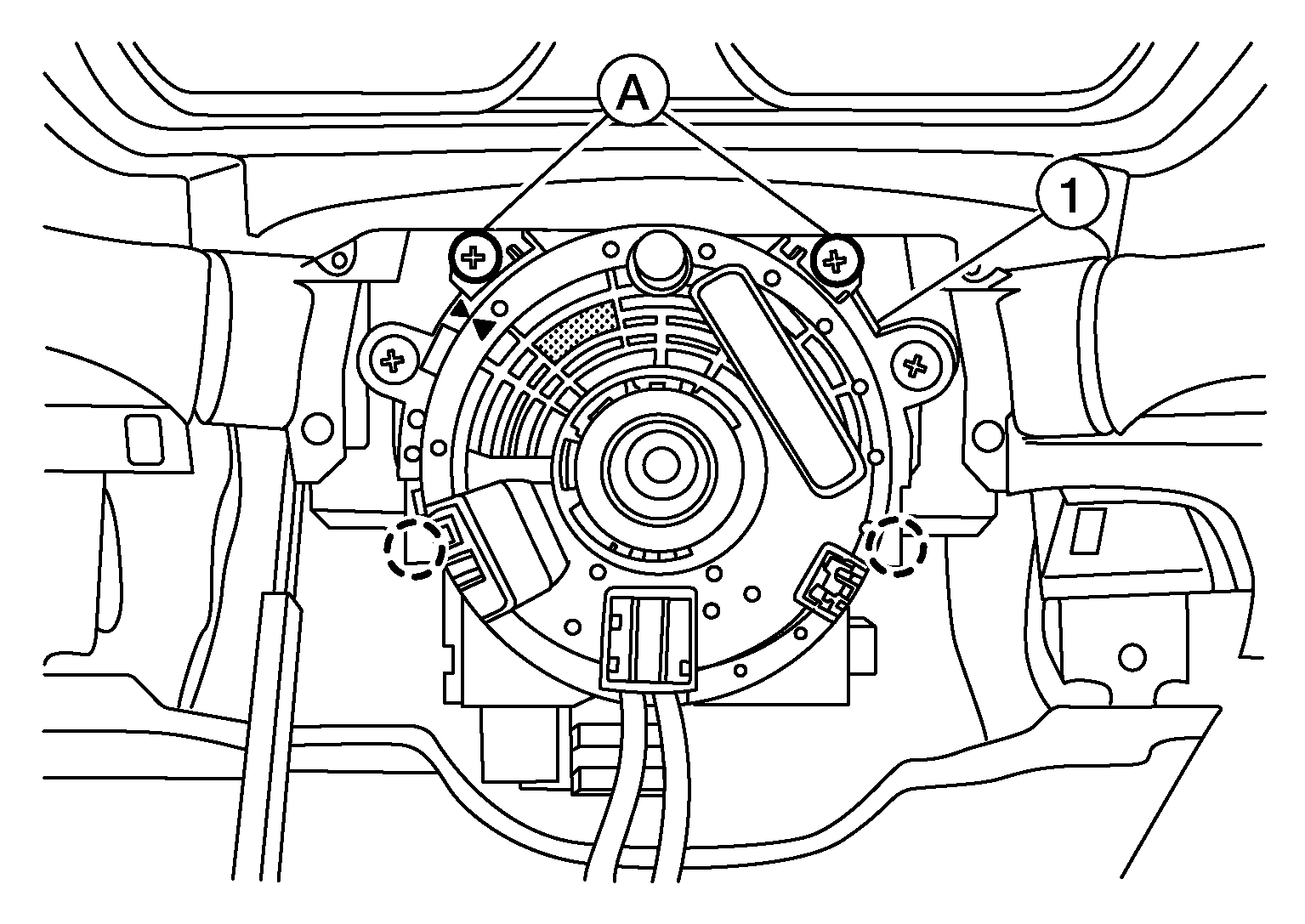

  5. Remove screws (A), then release pawls and remove spiral cable and steering angle sensor (1) as an assembly.
    GNSAWHIA0538Z-538Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

    CAUTION: Do not turn the spiral cable quickly or beyond the limit number of turns (approximately 2.5 turns from the neutral position), this may cause the cable to snap.

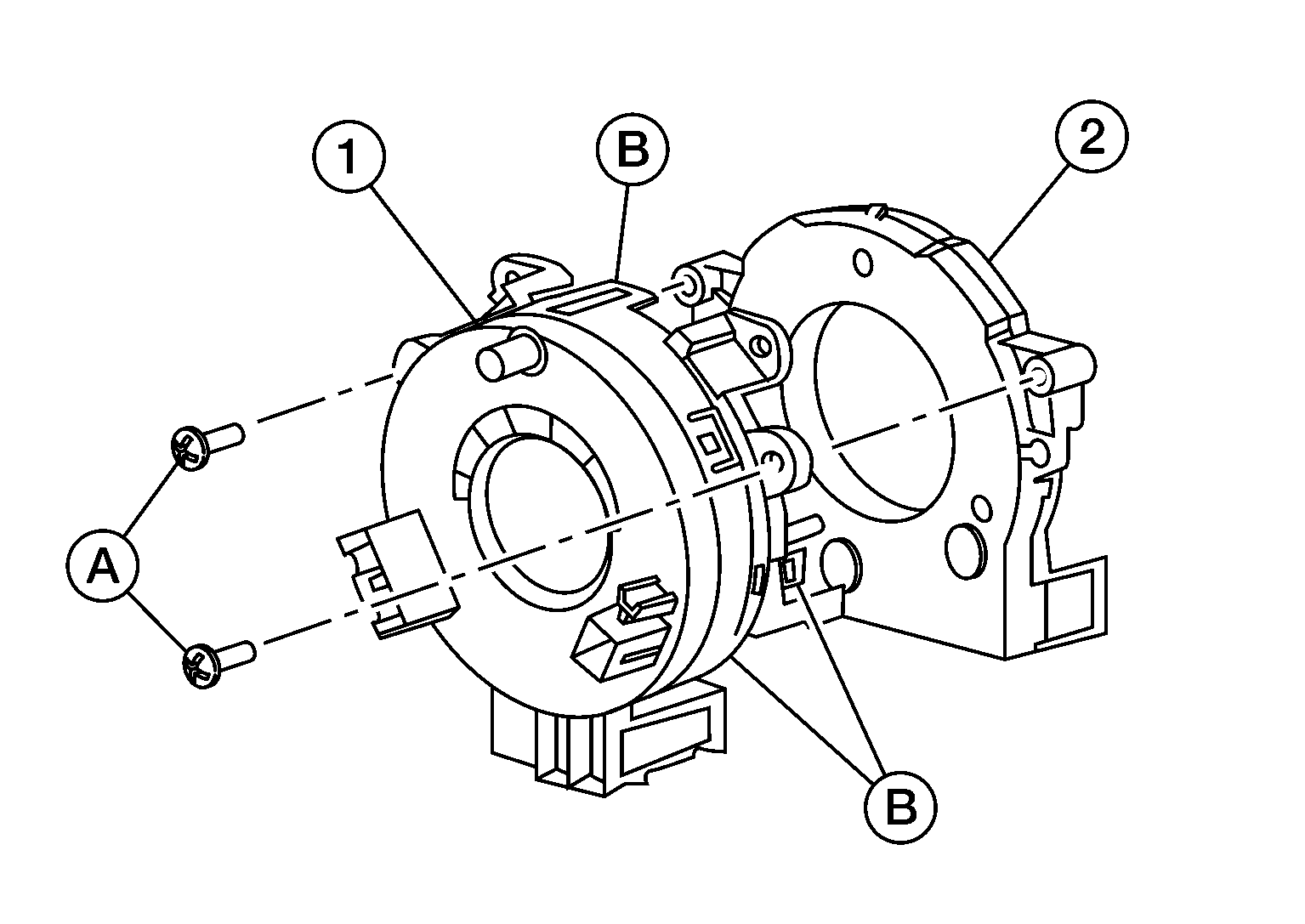

  6. Remove screws (A), then release pawls (B) and separate the steering angle sensor (2) from spiral cable (1).
    GNSALHIA0271Z-271Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse steering angle sensor.
    CAUTION:
    • Do not strike or drop the spiral cable.
      GNSJMHIA09Z-009Courtesy of NISSAN NORTH AMERICA, INC.
    • Replace the spiral cable if it has been dropped or sustained an impact.
    • Do not disassemble the spiral cable.
    • Do not allow oil, grease, detergent or water to come in contact with the spiral cable.
