Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to Removal and Installation .
Remove the headlining. Refer to Removal and Installation .
Disconnect the harness connector from the side curtain air bag module.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- For removing/installing the side curtain air bag module harness connector, insert a thin screwdriver wrapped in tape into the notch, lift the lock and remove the harness connector as shown, above.
- Install the harness connector with the lock raised, and push the lock into the harness connector as shown, above.
- After installing the harness connector, check that the lock is pushed in securely.

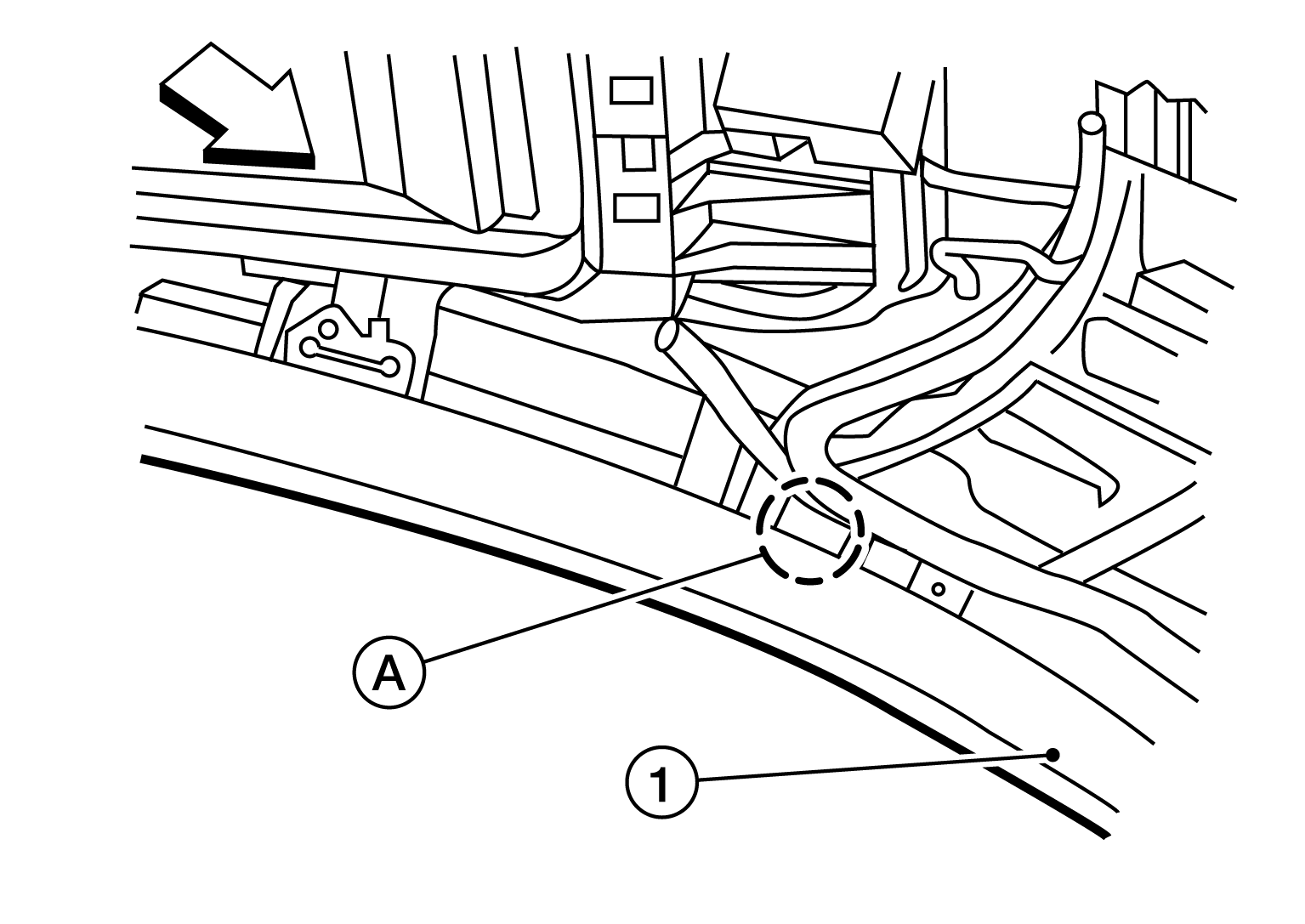

Remove the side curtain air bag module clip (A) located at the top of the front pillar (1) as shown below.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front
Remove the side curtain air bag module bolts.
Disconnect the side curtain air bag module bracket supporting hooks and remove the side curtain air bag module.
CAUTION:
- Replace the side curtain air bag module if it has been dropped or sustained an impact.
- Do not strike the side curtain air bag module.
- Do not insert any foreign objects (screwdriver, etc.) into the side curtain air bag module.
- Do not disassemble the side curtain air bag module.
- Do not expose the side curtain air bag module to temperatures exceeding 90 deg. C (194 deg. F).
- Do not allow oil, grease, detergent or water to come in contact with the side curtain air bag module.
