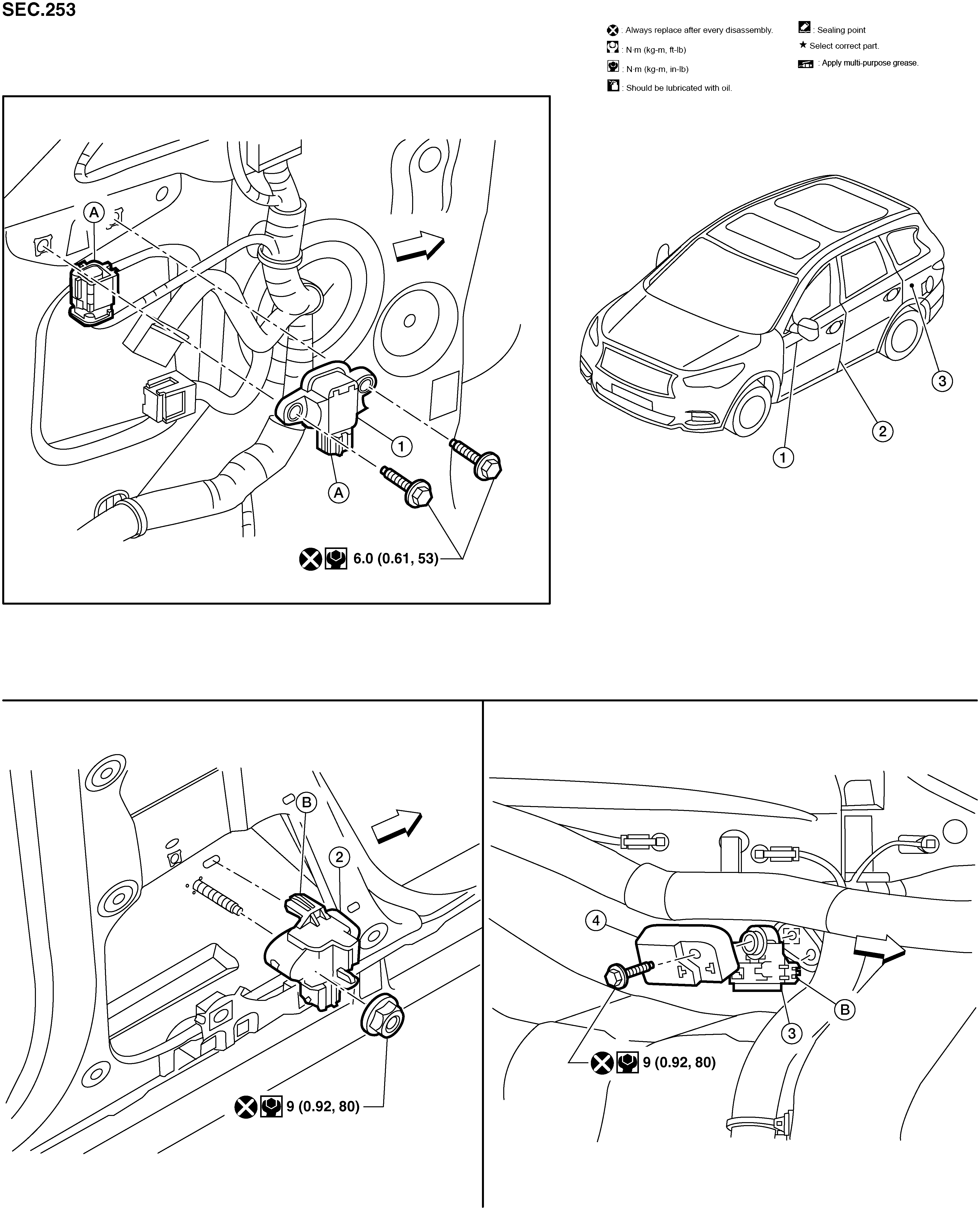

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front door satellite sensor (LH/RH) |
2. |
Front side air bag satellite sensor (LH/RH) |
3. |
Rear side air bag satellite sensor (LH/RH) |
|
4. |
Rear side air bag satellite sensor cover (LH/RH) |
A. |
Front door satellite sensor harness connector |
B. |
Side air bag satellite sensor harness connector |
|
|
Front |
NOTE:
LH side shown, RH side similar.
