Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to Removal and Installation .
  2. Remove the instrument panel assembly. Refer to Removal and Installation .
  3. Remove the front passenger air bag module screws.

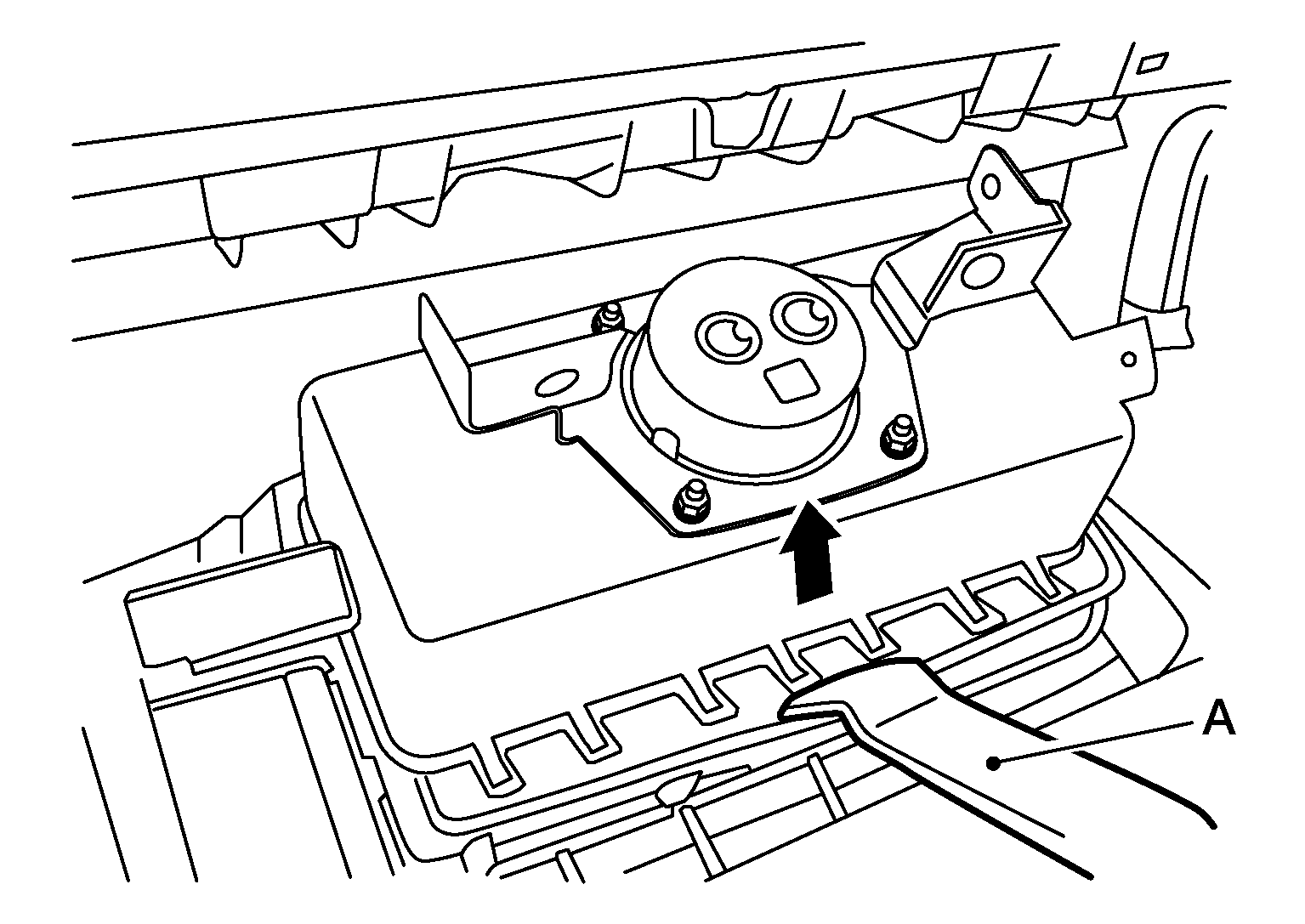

  4. Disconnect the front passenger air bag module pawls using a suitable tool (A) as shown below.
    GNSALHIA0251Z-251Courtesy of NISSAN NORTH AMERICA, INC.
  5. Lift up on the front passenger air bag module to remove the front passenger air bag module as shown, above.
    CAUTION:

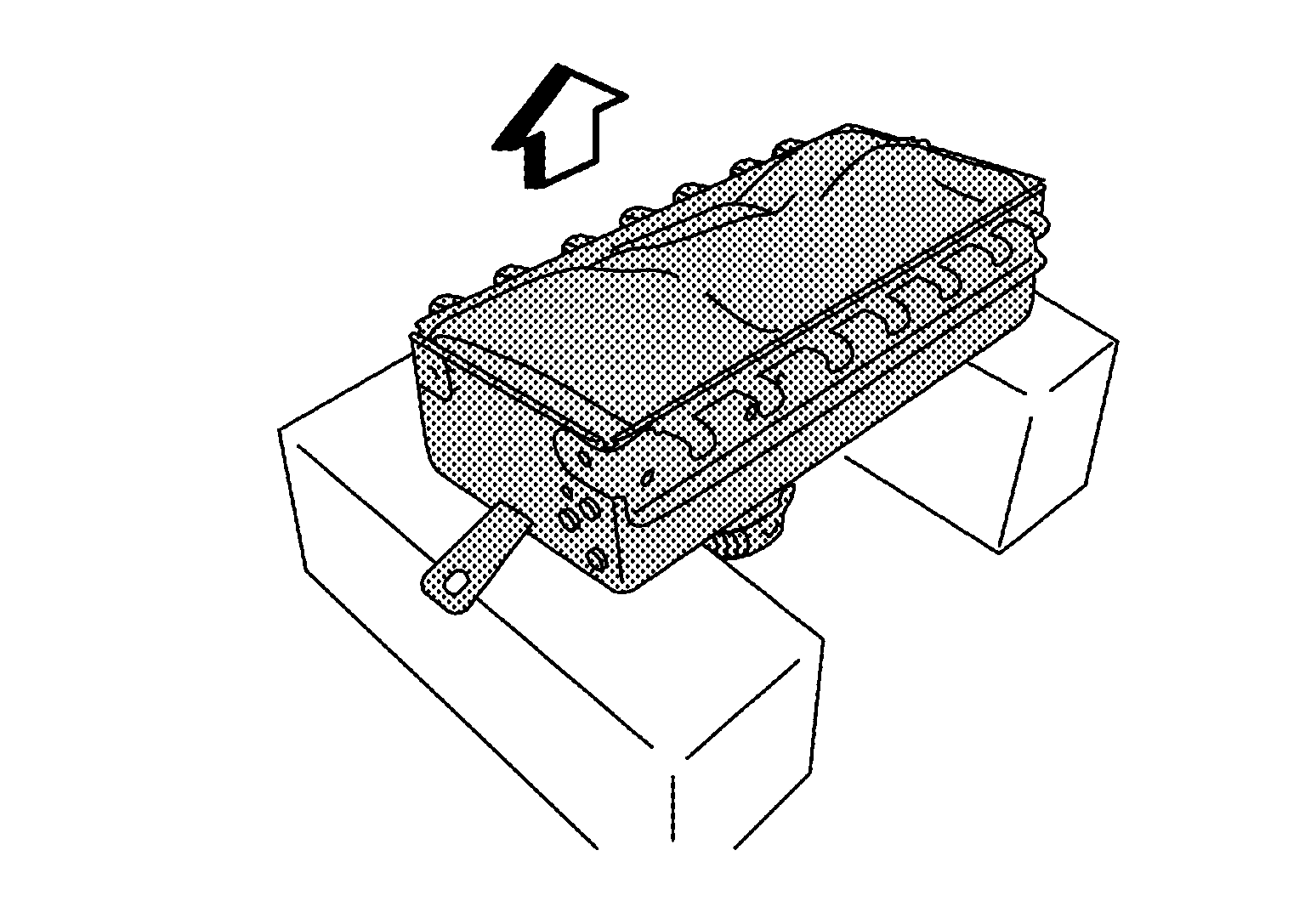

    • Always place the front passenger air bag module with the pad side facing upward as shown, below.
      GNSAWHIA0403Z-403Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL : Upward

    • Replace the front passenger air bag module if it has been dropped or sustained an impact.
      GNSJMHIA09Z-009Courtesy of NISSAN NORTH AMERICA, INC.
    • Do not strike the front passenger air bag module.
    • Do not insert any foreign objects (screwdriver, etc.) into the front passenger air bag module.
    • Do not disassemble the front passenger air bag module.
    • Do not expose the front passenger air bag module to temperatures exceeding 90 deg. C (194 deg. F).
    • Do not allow oil, grease, detergent, or water to come in contact with the front passenger air bag module.
