Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

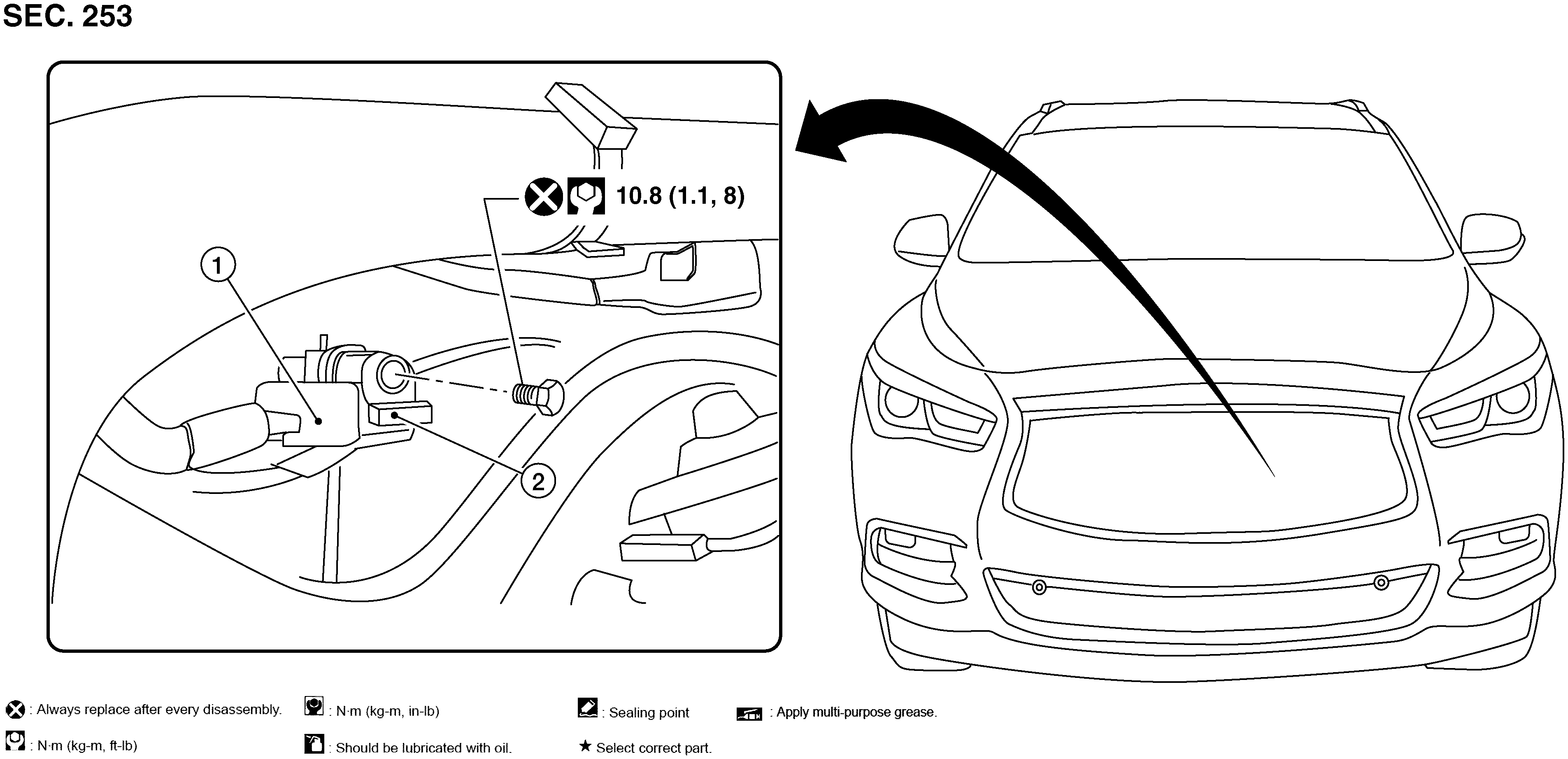

Fig 1: Crash Zone Sensor Components With Torque Specification
GNSAWHIA0883Z-883Courtesy of NISSAN NORTH AMERICA, INC.

1.

Crash zone sensor harness connector

2.

Crash zone sensor
