Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Always check the air bag diagnosis sensor unit ECU discriminated number (identification number) or part number using CONSULT.
  2. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to Removal and Installation .
  3. Remove the center console assembly. Refer to Removal and Installation .
  4. Disconnect the harness connectors for the following SRS components: Removal and Installation  (side curtain air bag modules), Removal and Installation  (front seat belt pre-tensioner) and Removal and Installation  (front side air bag module).
  5. Remove the air bag diagnosis sensor unit bolts.
  6. Disconnect the harness connectors from the air bag diagnosis sensor unit and remove.
    CAUTION:

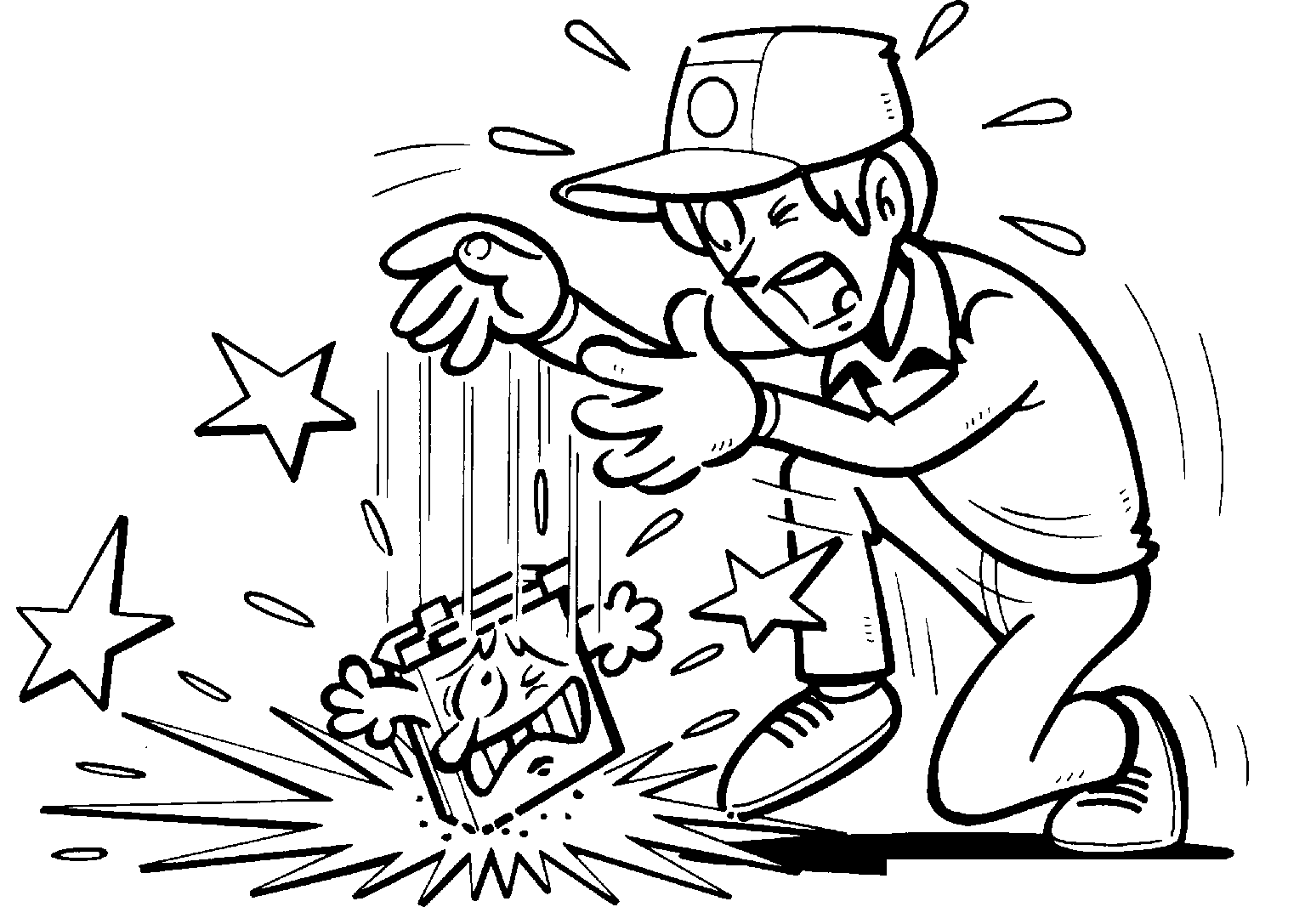

    • Replace the air bag diagnosis sensor unit if it has been dropped or sustained an impact.
      G04072730Courtesy of NISSAN NORTH AMERICA, INC.
    • Do not strike the air bag diagnosis sensor unit.
    • Replace the air bag diagnosis sensor unit if any SRS air bag has been deployed or if any front seat belt pre-tensioner has been deployed.
