Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument lower panel LH. Refer to Removal and Installation .

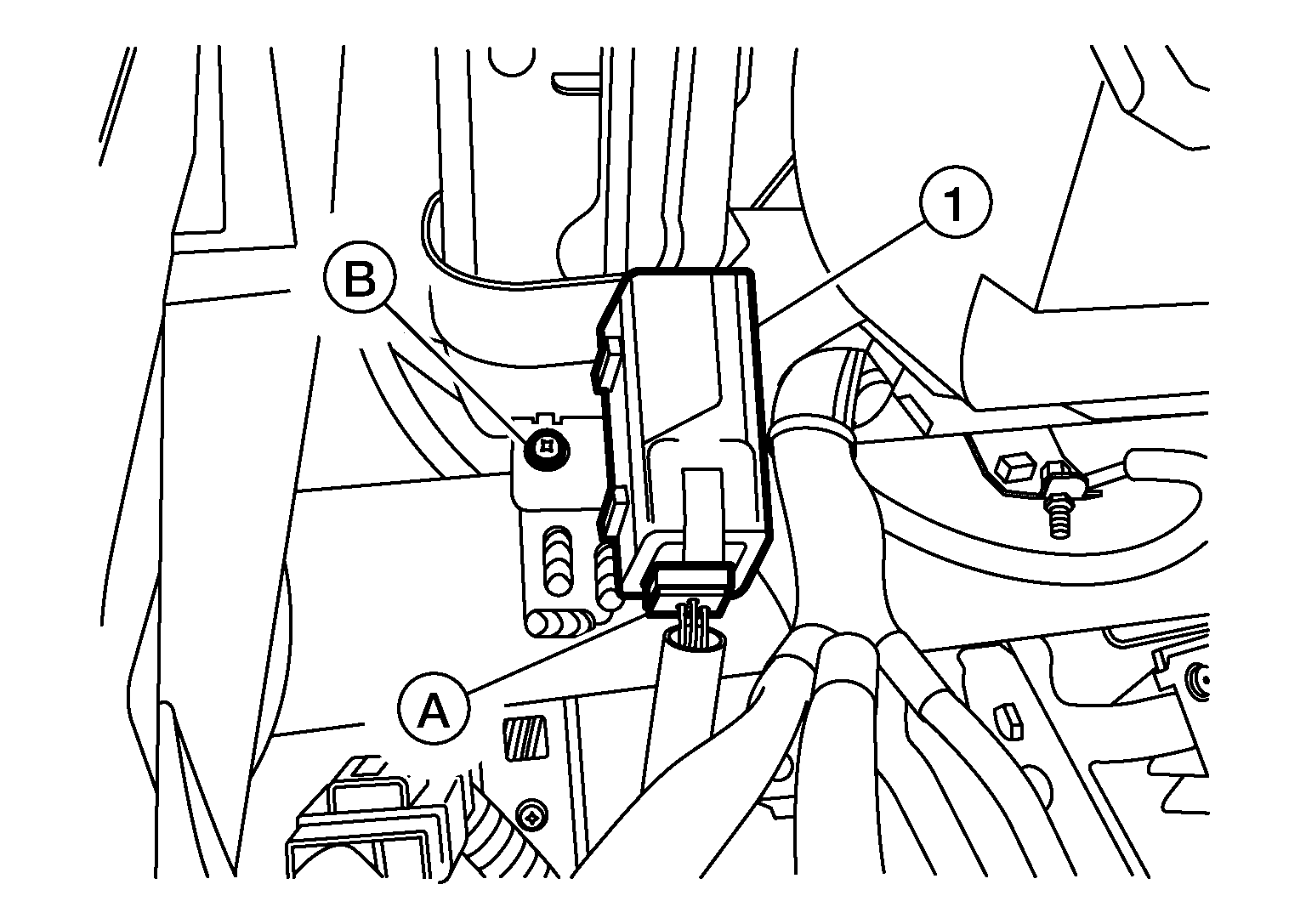

  2. Disconnect the harness connector (A) from the ADAS control unit 2 (1).
    GNSDB119208Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screw (B) and remove the ADAS control unit 2.
