Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

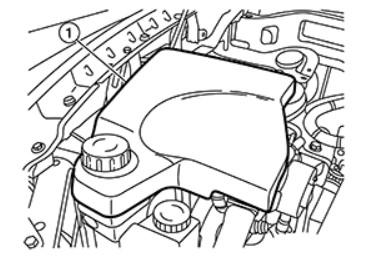

Remove the power steering oil pump cover (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Drain power steering fluid. Refer to Draining and Refilling .

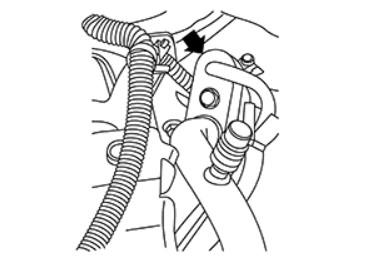

Disconnect the A/C rear lines at lower pipes. Refer to Exploded View .

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the A/C front lines at junction. Refer to Exploded View .

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect wiring harness clips from bracket (A).

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the following components from the power steering oil pump:

Courtesy of NISSAN NORTH AMERICA, INC.
- LH power steering oil pump connector (A).
- Reservoir hose (B).
- RH power steering oil pump connector (C).
- High pressure piping (D).
Remove power steering oil pump nuts and bolts, and then remove power steering oil pump.
