Air Bleeding Hydraulic System

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

AIR BLEEDING HYDRAULIC SYSTEM

If air bleeding is not complete, excessive noise in the power steering oil pump will be present.

  1. Start the engine and run at idle.
  2. Turn the steering wheel from the full right stop position and then to full left stop position several times. Repeat until bubbles are no longer being generated in the reservoir.
  3. When the power steering fluid level lowers, refill the reservoir.
    CAUTION: Do not allow the power steering fluid level to drop below the hatching area.

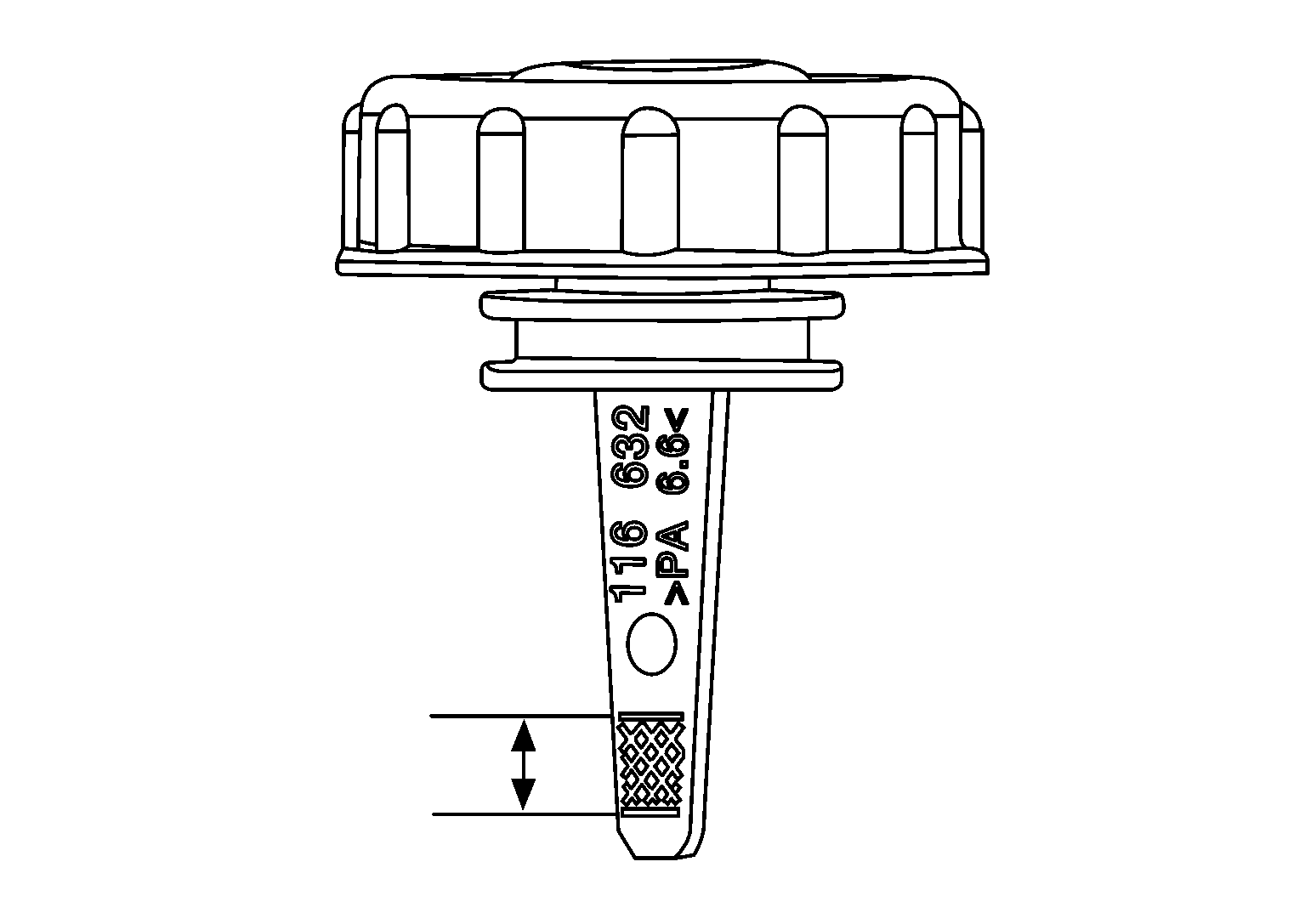

    GNSALGIA0125Z-125Courtesy of NISSAN NORTH AMERICA, INC.
  4. Repeat steps two and three until the power steering fluid level stabilizes.
  5. Stop the engine.
  6. Verify proper power steering fluid level. Power steering fluid level should be in hatching area on power steering reservoir cap indicator.
    CAUTION: Do not allow the power steering fluid level to drop below the hatching area.
    GNSALGIA0125Z-125Courtesy of NISSAN NORTH AMERICA, INC.
