Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

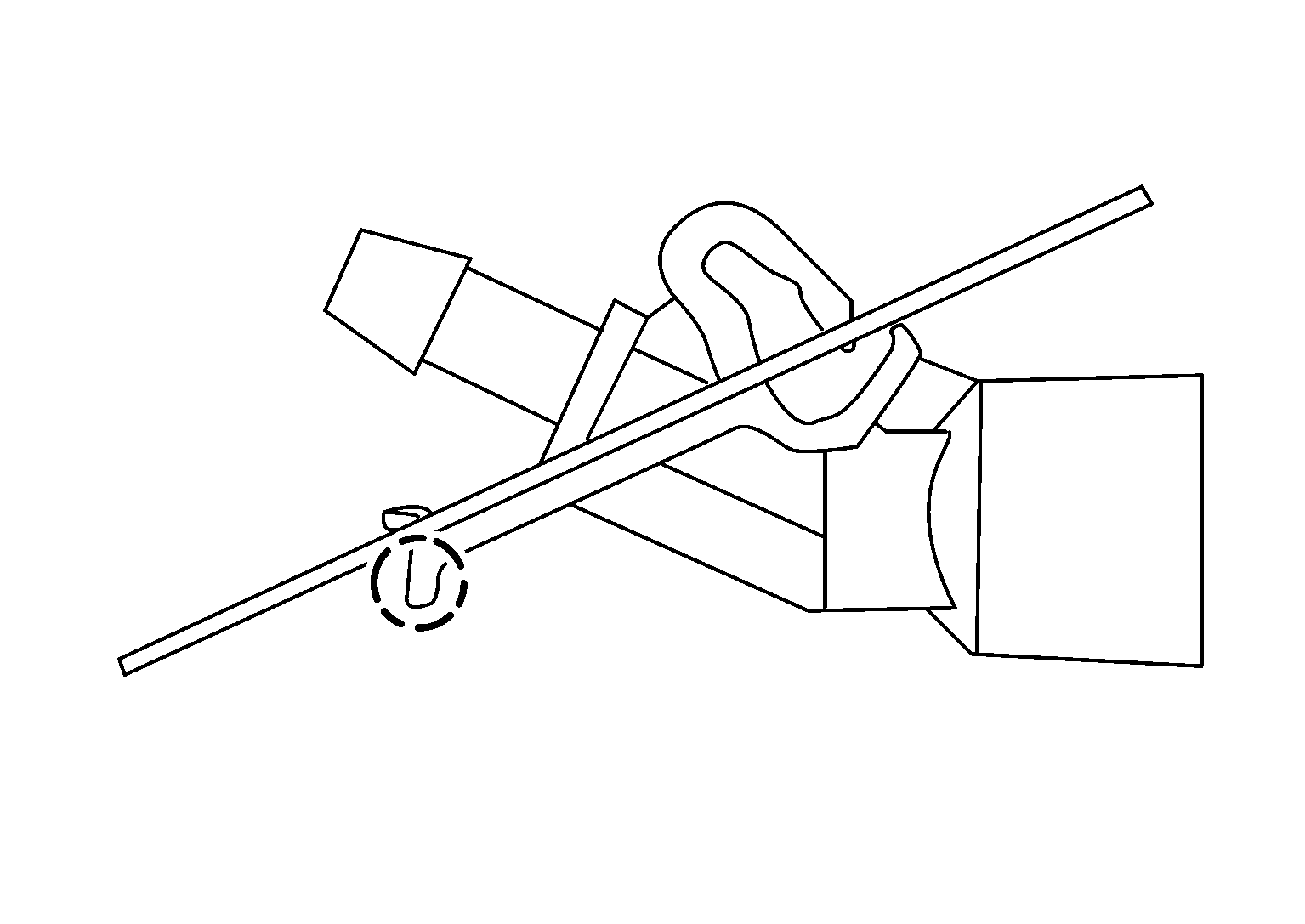

  1. Release the pawl and remove the front washer nozzle from the hood.
    GNSAWLIA2483Z-483Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

  2. Disconnect the front washer tube from the front washer nozzle.
