Inspection and Adjustment: Inspection
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

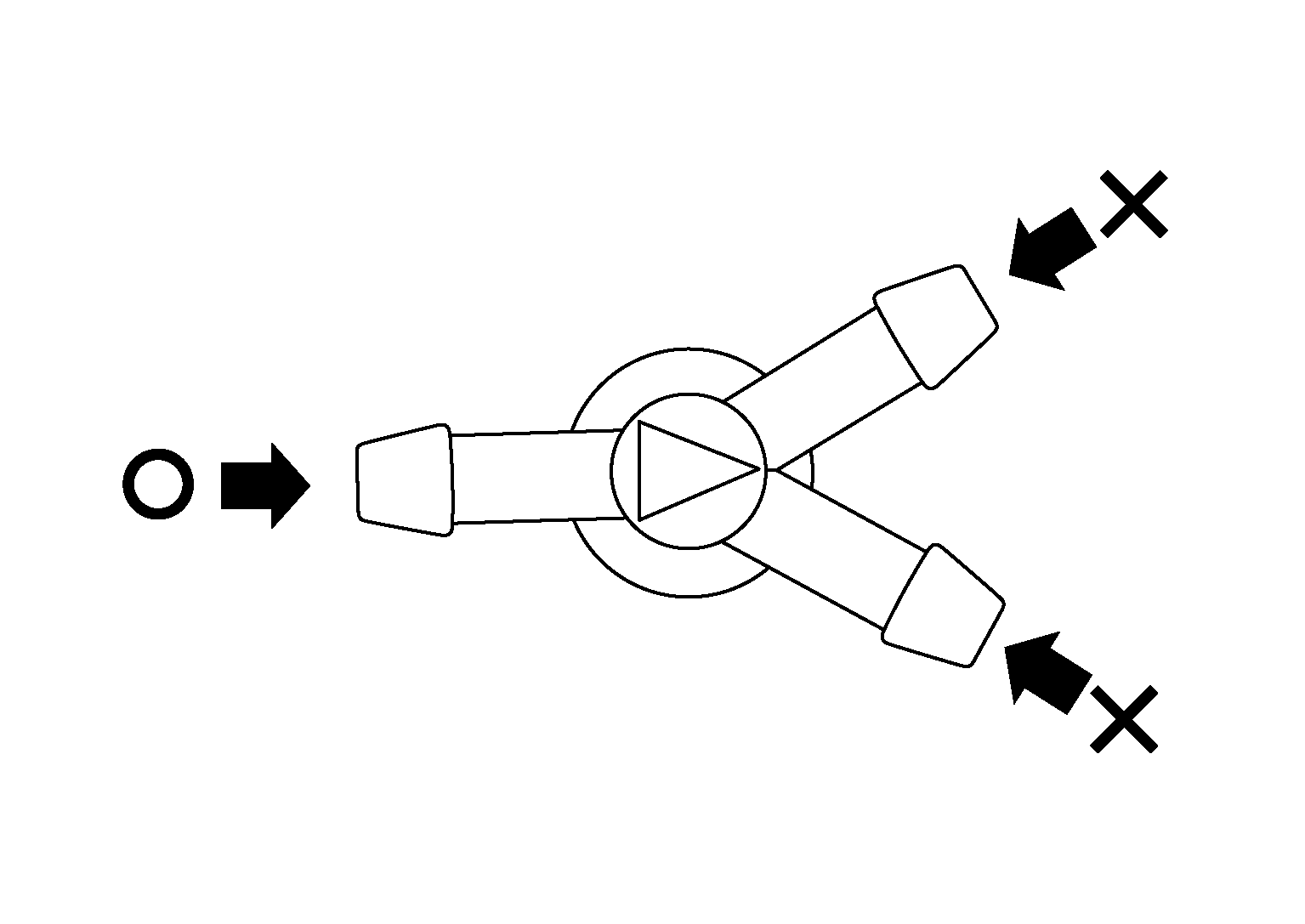

Check that air can pass through the check valve splitter by blowing into the check valve splitter and that air cannot flow in the opposite direction.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
O: Air can flow
X: Air cannot flow
