Inspection and Adjustment: Adjustment
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|

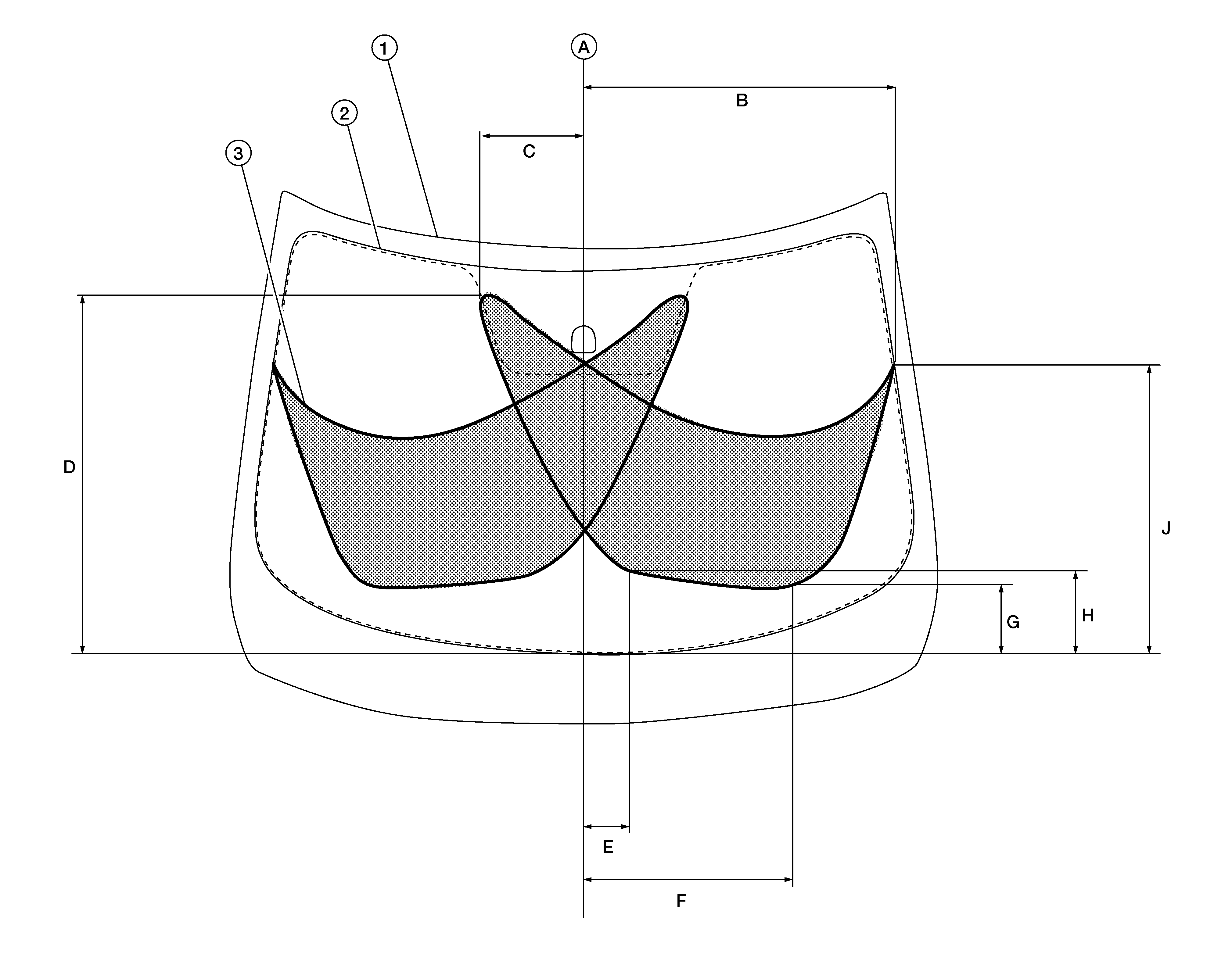

1. |
Windshield glass |
2. |
Black printed area line |
3. |
Wiping area |
|
A. |
Center line |
B. |
630mm (24.8in) |
C. |
210mm (8.3in) |
|
D. |
580mm (22.8in) |
E. |
73mm (2.9in) |
F. |
424mm (16.7in) |
|
G. |
133mm (5.2in) |
H. |
167mm (6.6in) |
J. |
580mm (22.8in) |
NOTE:
Spray positions for LH shown; RH is symmetrical.

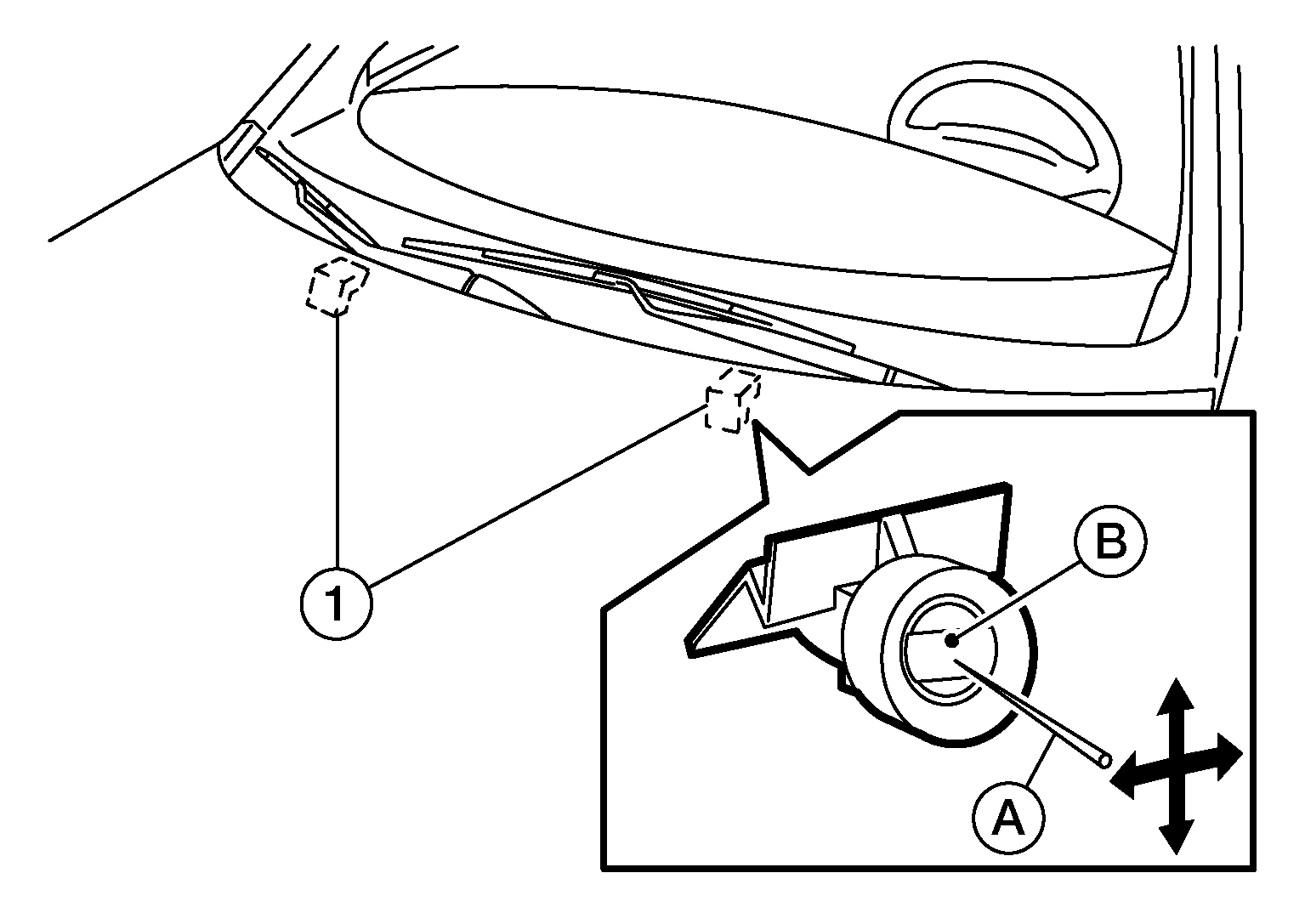

Insert a suitable tool (A) into the nozzle hole (B) and move up/down and left/right to adjust the spray position of each nozzle (1).
