Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

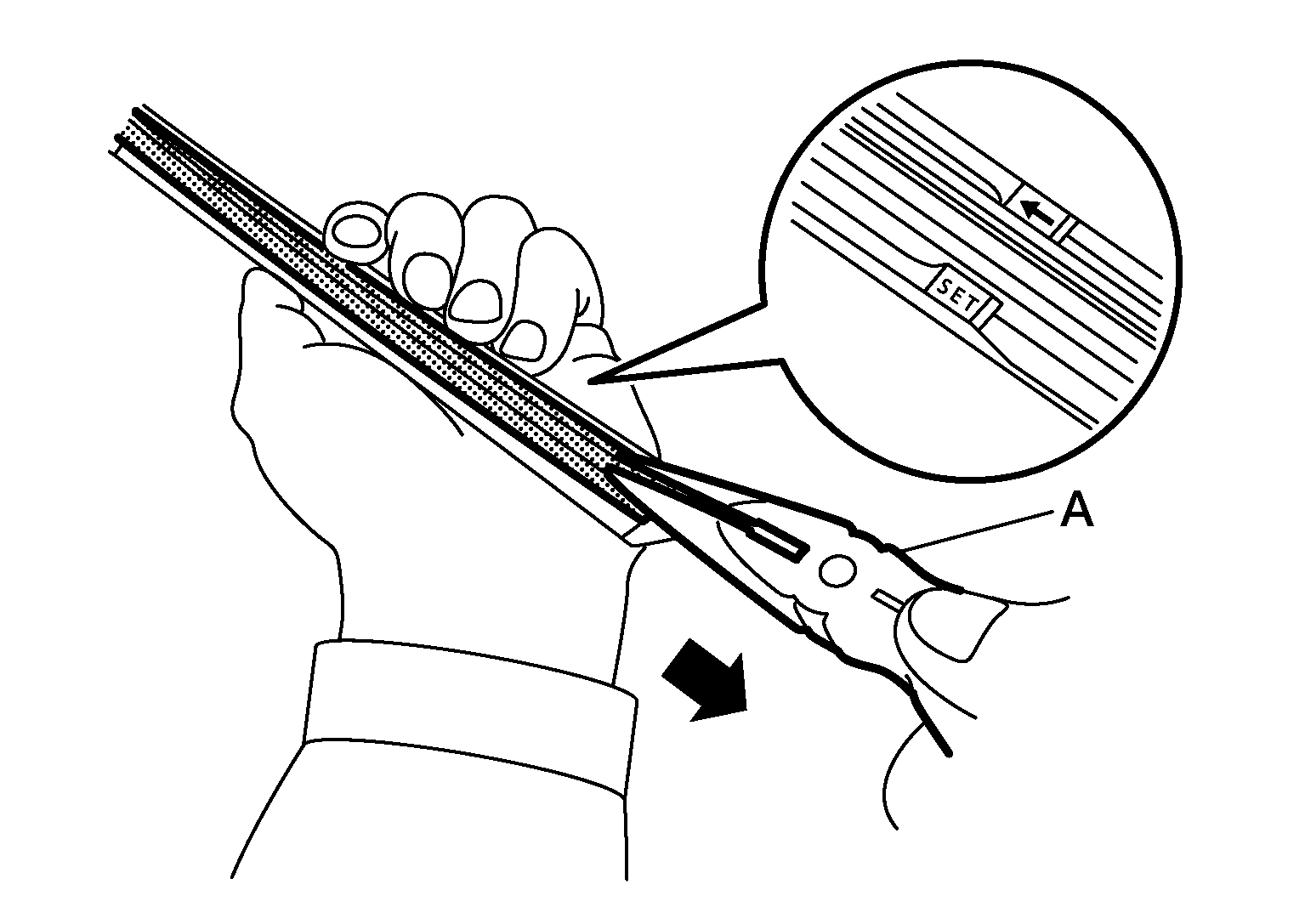

Check the wiper refill installation direction, by arrow mark on wiper blade tab.

Courtesy of NISSAN NORTH AMERICA, INC.

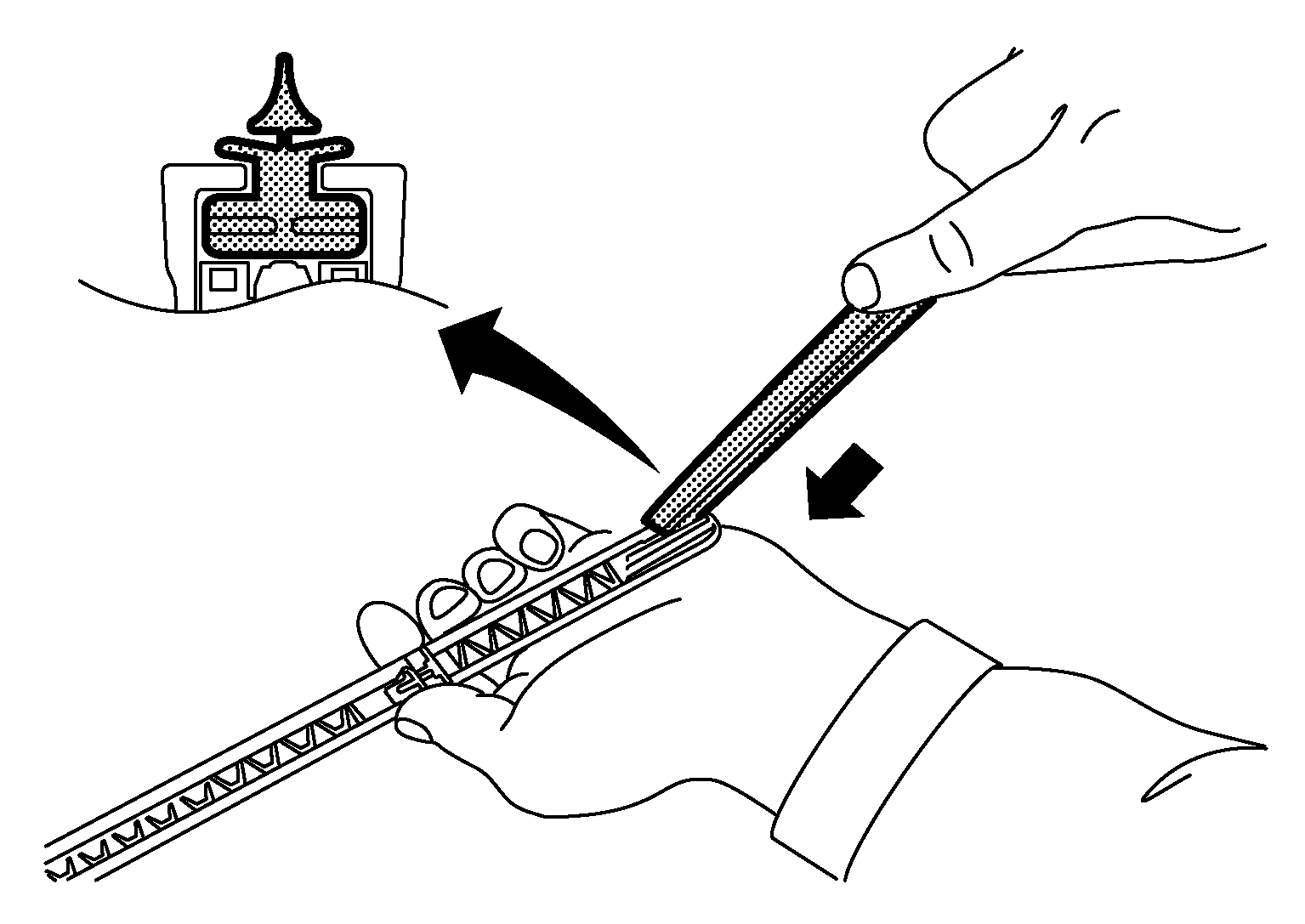

Insert wiper refill into the wiper blade tab as shown.

Courtesy of NISSAN NORTH AMERICA, INC.
Lock wiper refill and wiper blade tab at "SET" mark (" " mark).
Check the following items after installing.
- Wiper refill thoroughly fits in the wiper blade tab.
- Wiper refill is not deformed.

NOTE: When the vertebra is detached

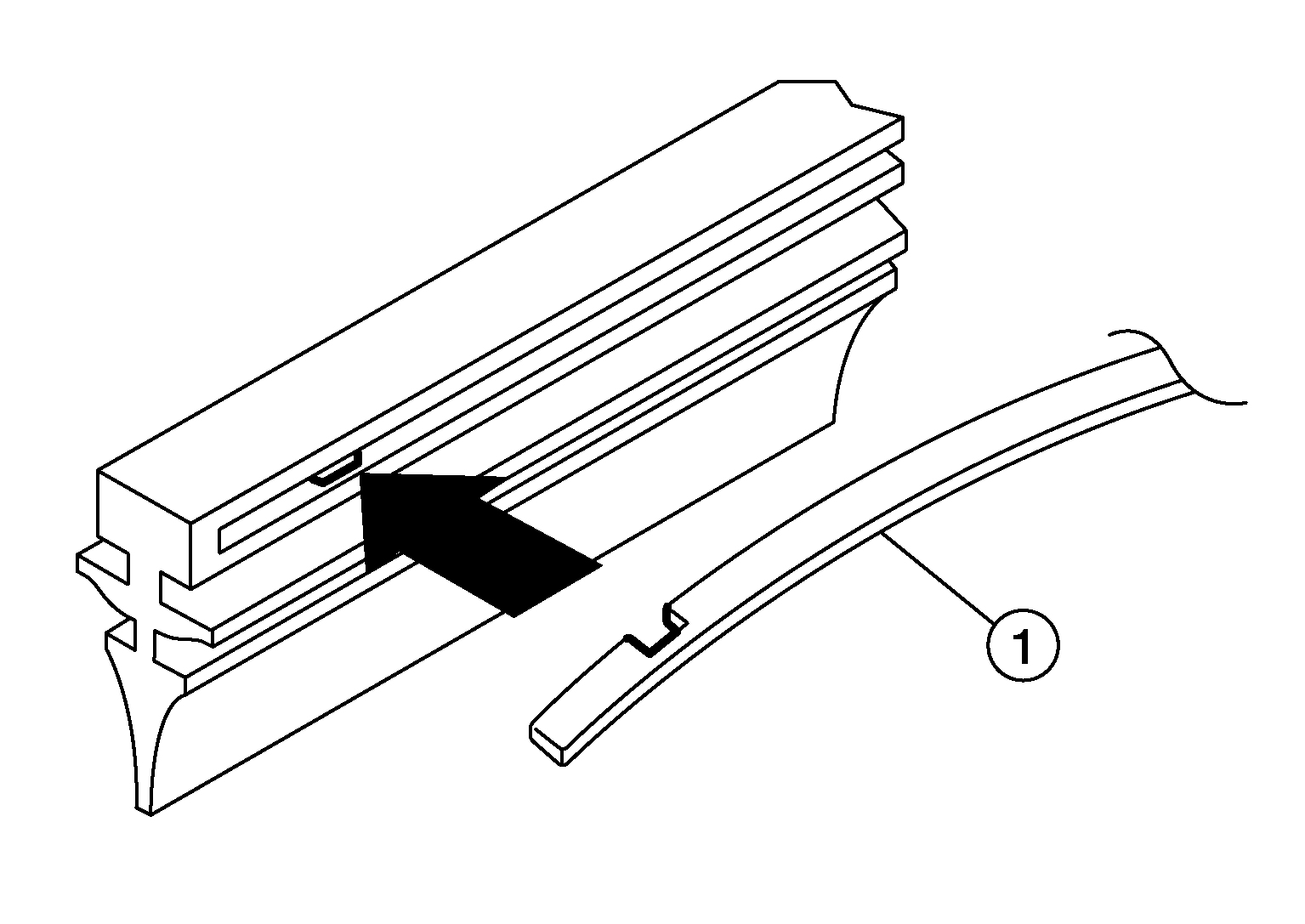

Insert the rib (1) into the wiper blade refill, matching the curve.

Courtesy of NISSAN NORTH AMERICA, INC.

If the rib has a notch, insert the rib so that the notch fits over the protrusion.

Install wiper blade. Refer to Removal and Installation
