Wiper Blade Position Adjustment
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

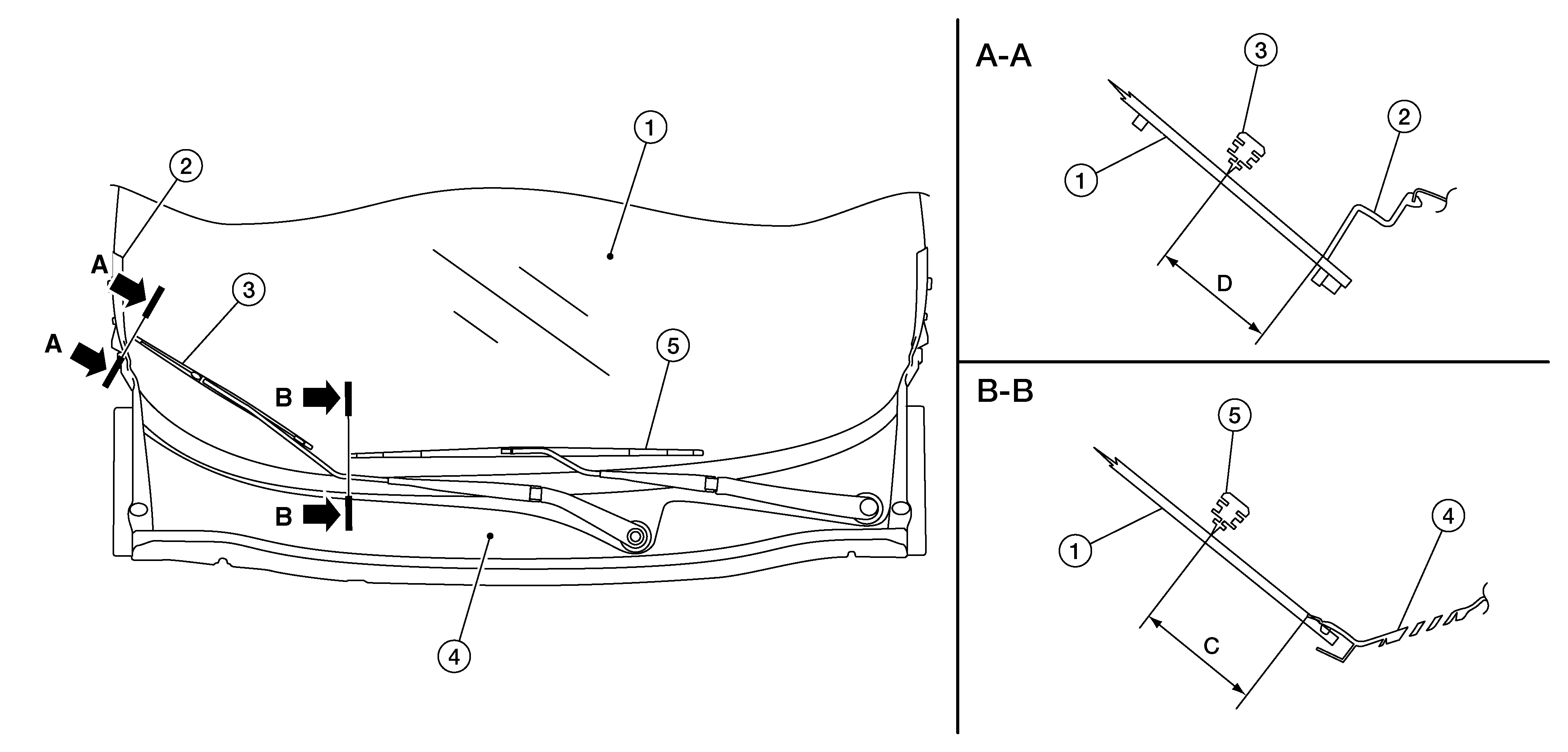

Clearance between the end of cowl top cover/ front fender cover and the top of front wiper blade center.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Windshield glass
|
2.
|
Front fender cover (RH)
|
3.
|
Front wiper blade (RH)
|
|
4.
|
Cowl top cover
|
5.
|
Front wiper blade (LH)
|
C.
|
35.0 mm (1.4 in)
|
|
D.
|
40.2 mm (1.6 in)
|
