Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear combination lamps (RH/LH). Refer to Removal and Installation (LED HEADLAMP) or Removal and Installation (HALOGEN HEADLAMP).
  2. Remove rear trunk finisher. Refer to Removal and Installation .
  3. Partially remove trunk lid weather strip.
  4. Remove bolts and clips from rear bumper fascia.

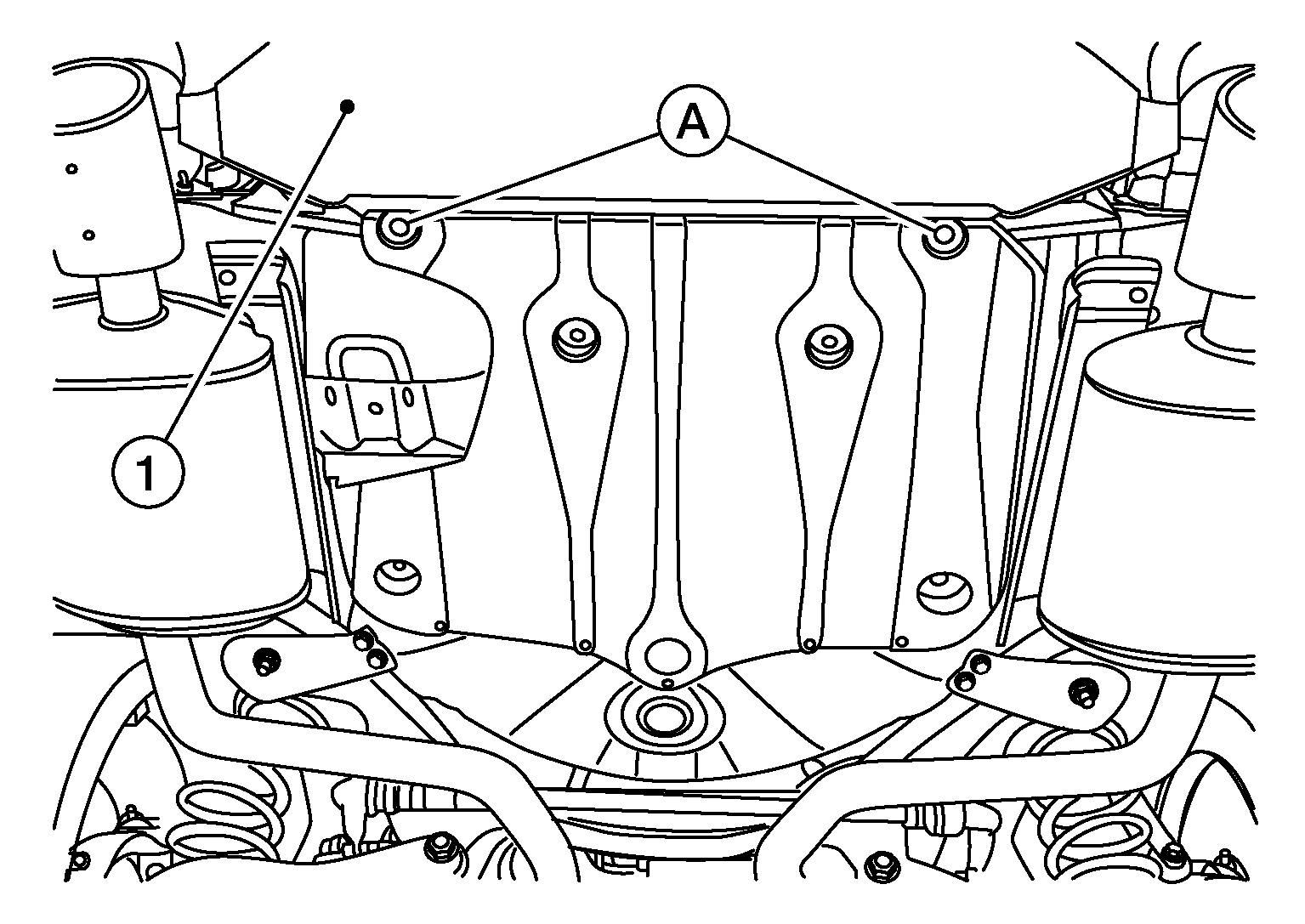

  5. Partially remove rear undercover clips (A) from rear bumper fascia (1).
    GNSALKIA4039Z-039Courtesy of NISSAN NORTH AMERICA, INC.
  6. Disconnect rear sonar sensor harness connector (if equipped).
  7. Release pawls and remove rear bumper fascia from rear bumper side brackets (RH/LH).

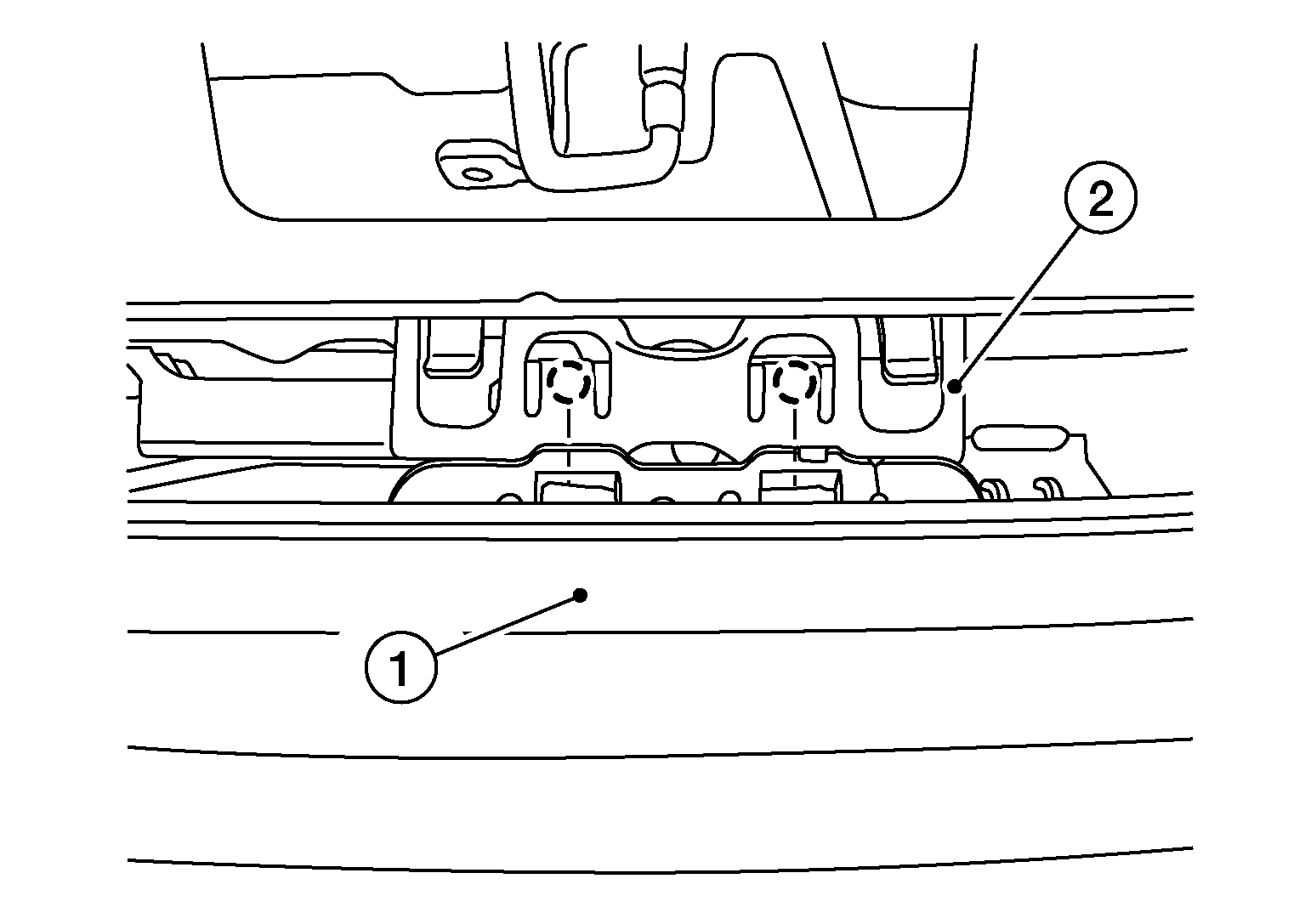

  8. Using suitable tool, release pawls to separate the rear bumper fascia (1) from the rear panel (2) and then remove rear bumper fascia.
    GNSALKIA4040Z-040Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
    WARNING:
    • Do not damage rear bumper fascia when releasing pawls.
    • Two operators are required when removing fascia to prevent damage to fascia.
