Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.

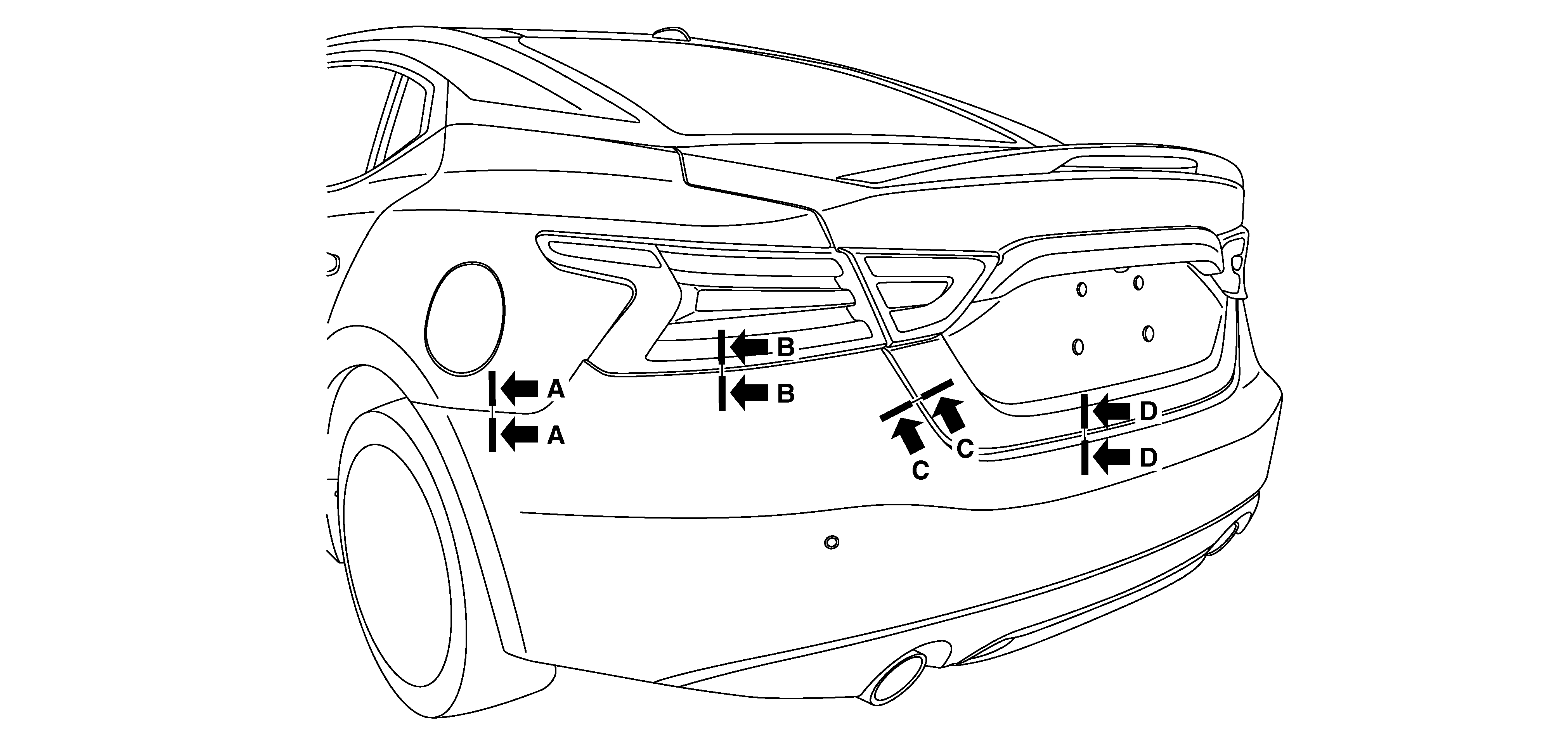

mm (in)
|
Section |
Measurement |
Minimum |
Target Value |
Maximum |
|
A-A |
Clearance |
0.0 (0.00) |
0.0 (0.00) |
0.8 (0.03) |
|
A-A |
Surface height |
-1.8 (-0.07) |
-0.8 (-0.03) |
0.2 (0.01) |
|
B-B |
Clearance |
0.5 (0.02) |
2.0 (0.08) |
3.5 (0.14) |
|
B-B |
Surface height |
-1.5 (-0.06) |
0.0 (0.00) |
1.5 (0.06) |
|
C-C |
Clearance |
3.0 (0.12) |
5.0 (0.20) |
7.0 (0.28) |
|
D-D |
Clearance |
5.0 (0.20) |
7.0 (0.28) |
9.0 (0.35) |
