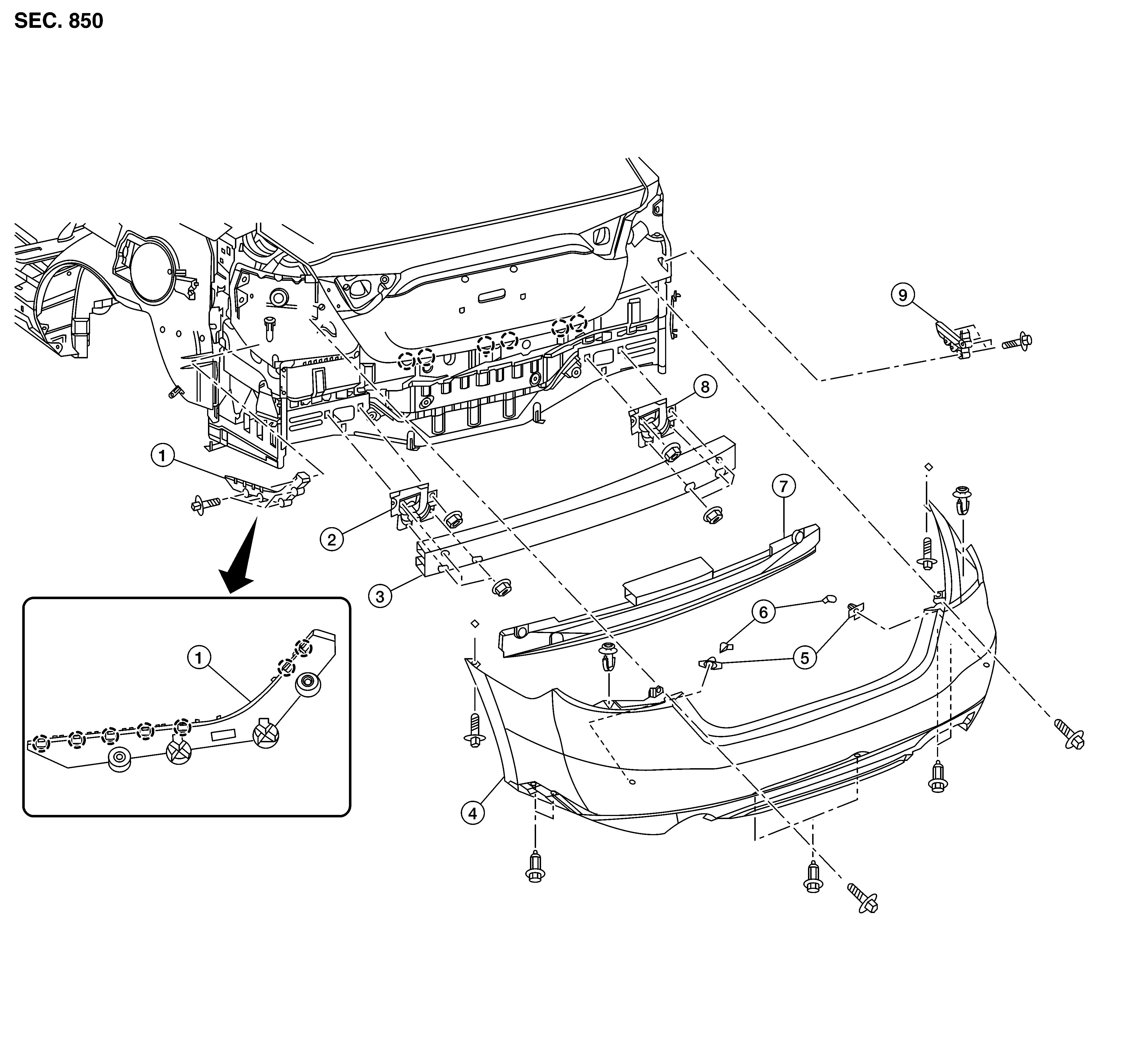

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Rear bumper fascia side bracket (LH) |
2. |
Rear bumper reinforcement bracket (LH) |
3. |
Rear bumper reinforcement |
|
4. |
Rear bumper fascia |
5. |
Sonar sensor finisher (if equipped) |
6. |
Sonar sensor (if equipped) |
|
7. |
Rear energy absorber |
8. |
Rear bumper reinforcement bracket (RH) |
9. |
Rear bumper fascia side bracket (RH) |
|
|
Pawl |
