Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Remove front bumper fascia. Refer to Removal and Installation .

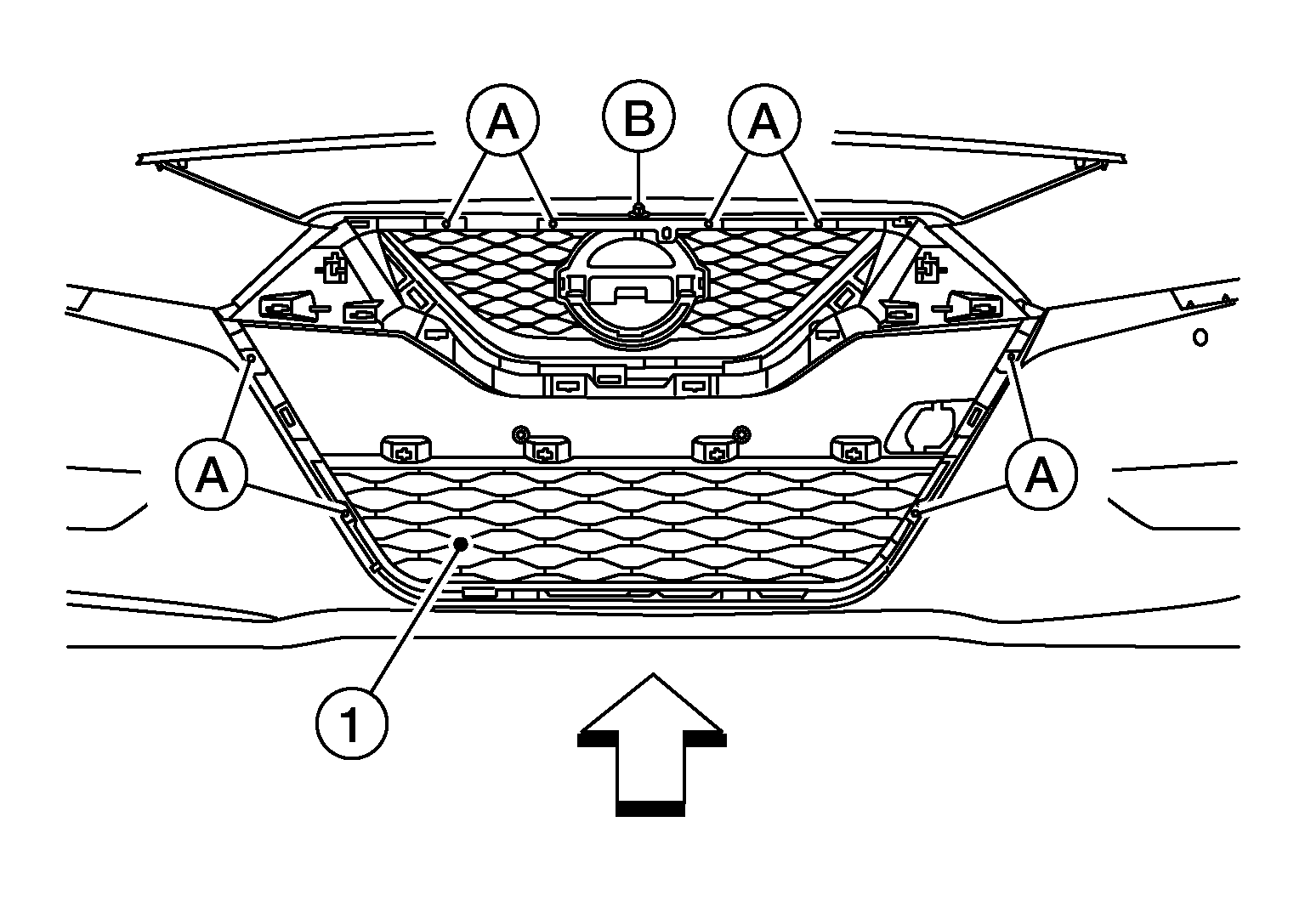

- Remove screws (A) and bolt (B) from front grille (1).
: Front
- Release the pawls and metal clips, then remove front grille.NOTE: Remove the following parts (if necessary) after removing the front grille:
- Camera (if equipped)
- Emblem
