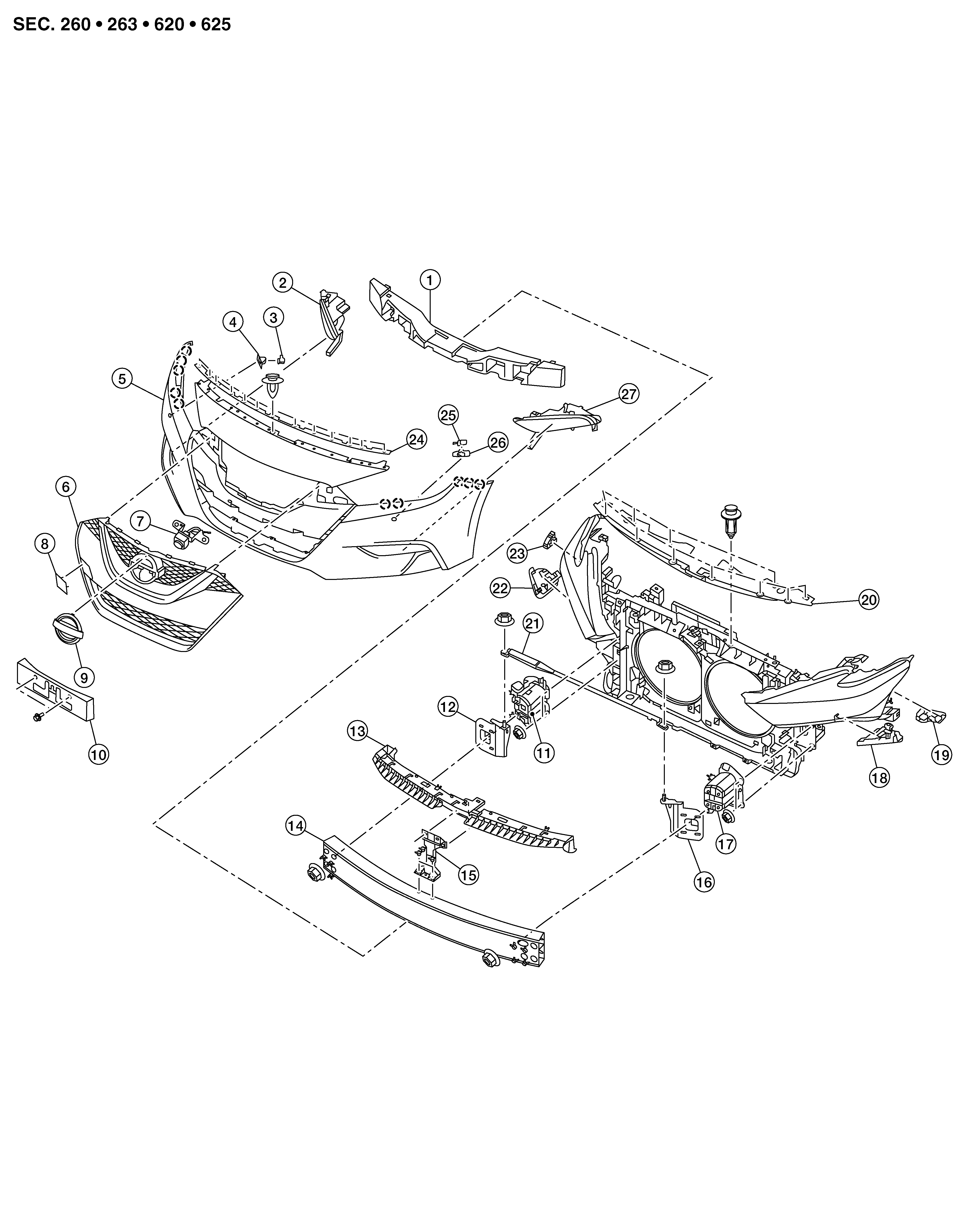

Exploded view
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front energy absorber |
2. |
Front fog lamp (RH) |
3. |
Sonar sensor (if equipped) |
|
4. |
Sonar sensor finisher (if equipped) |
5. |
Front bumper fascia |
6. |
Front grille |
|
7. |
Camera (if equipped) |
8. |
Tow cover |
9. |
Emblem |
|
10. |
License plate bracket |
11. |
Front bumper reinforcement bracket (RH) |
12. |
Apron side bracket (RH) |
|
13. |
Bumper retainer (upper) |
14. |
Front bumper reinforcement |
15. |
Bumper stay retainer |
|
16. |
Apron side bracket (LH) |
17. |
Front bumper reinforcement bracket (LH) |
18. |
Front bumper side retainer (LH) |
|
19. |
Front bumper fascia side bracket (LH) |
20. |
Core support cover |
21. |
Body damper (if equipped) |
|
22. |
Front bumper side retainer (RH) |
23. |
Front bumper fascia side bracket (RH) |
24. |
Hood seal |
|
25. |
Sonar sensor (if equipped) |
26. |
Sonar sensor finisher (if equipped) |
27. |
Front fog lamp (LH) |
|
|
Pawl |
