Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION: After installing, perform adjustment of wiper arm. Refer to Adjustment .

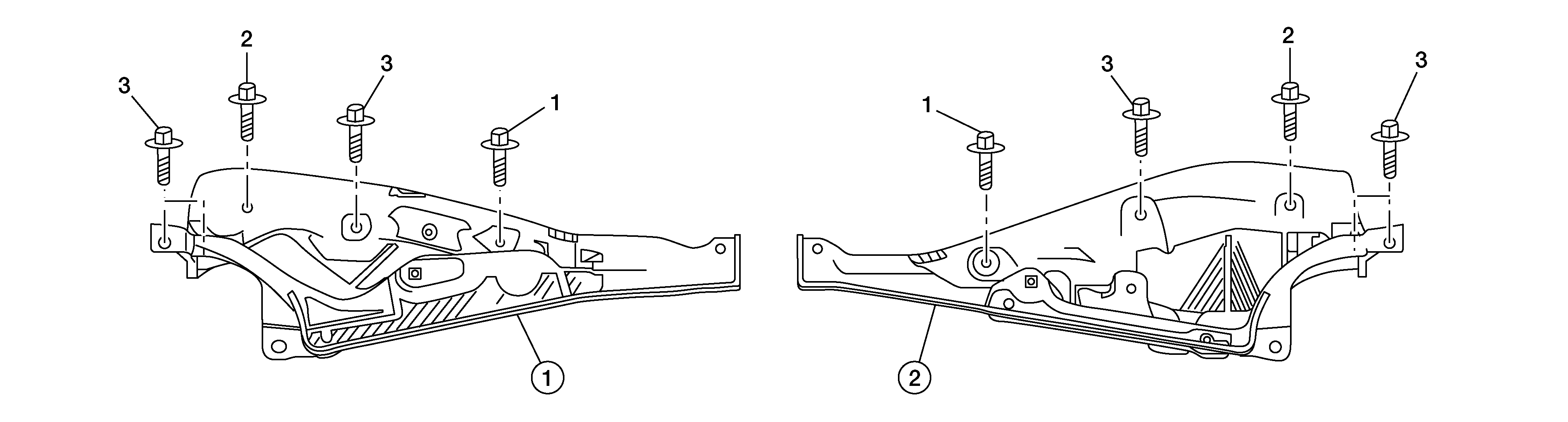

When installing the cowl top brace (LH) (2) and cowl top brace (RH) (1), tighten the bolts in the order shown below.

Courtesy of NISSAN NORTH AMERICA, INC.

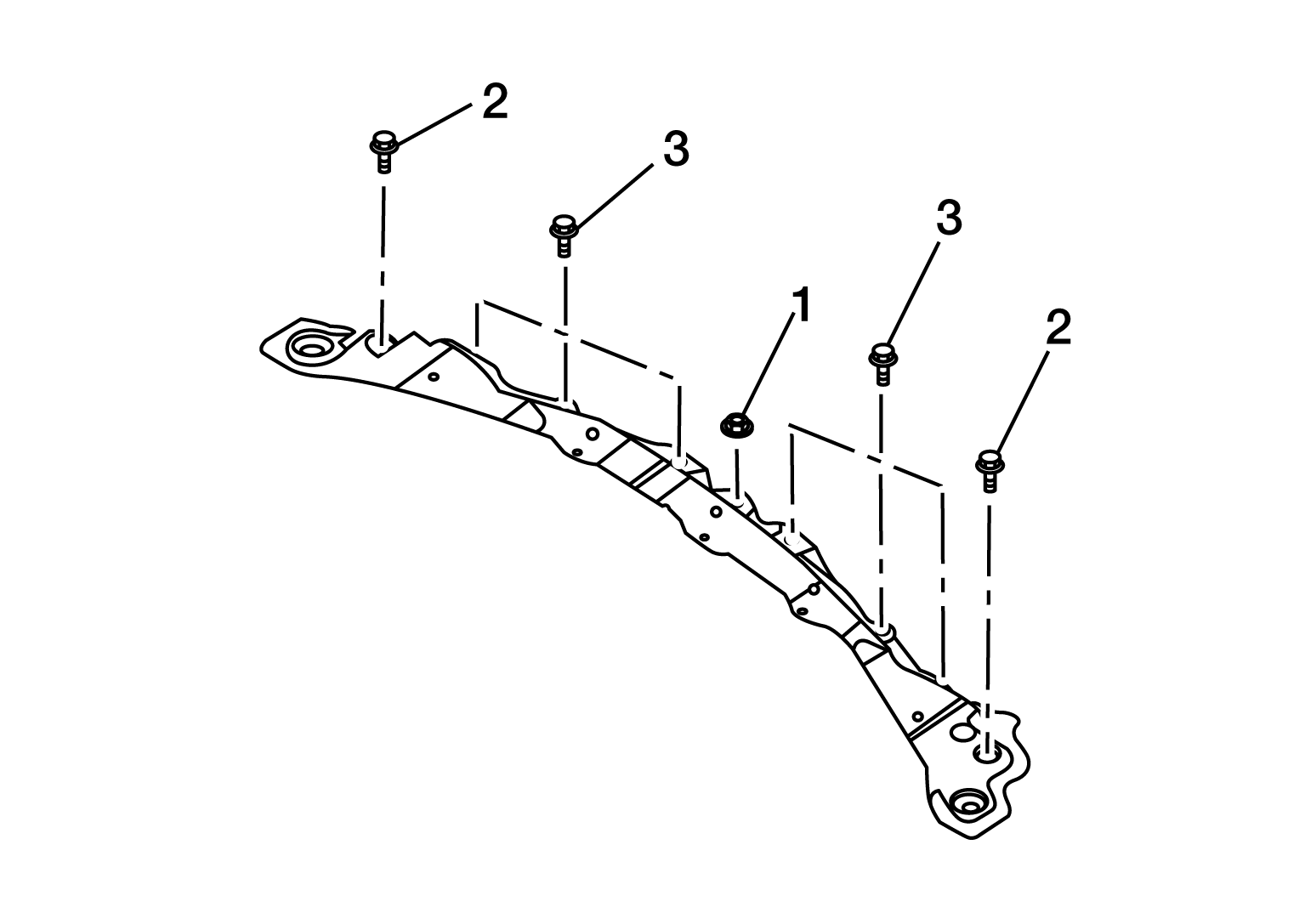

When installing the lower cowl top extension brace, tighten the bolts in the order shown below.

Courtesy of NISSAN NORTH AMERICA, INC.
