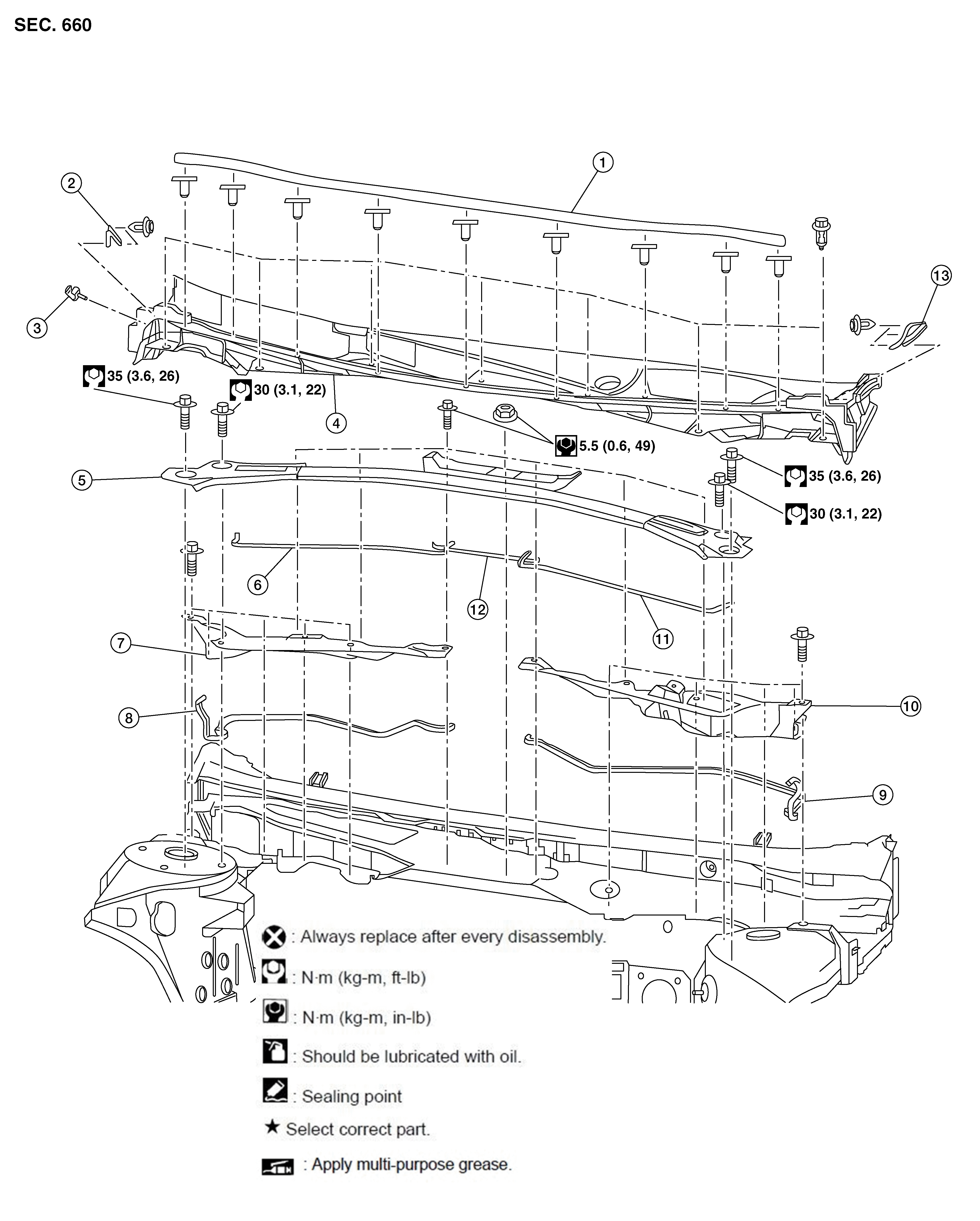

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Cowl top cover seal |
2. |
Cowl top side trim cover (RH) |
3. |
Harness clip |
|
4. |
Cowl top cover |
5. |
Cowl top extension |
6. |
Cowl top seal |
|
7. |
Cowl top brace (RH) |
8. |
Cowl top brace lower seal (RH) |
9. |
Cowl top brace lower seal (LH) |
|
10. |
Cowl top brace (LH) |
11. |
Cowl top seal |
12. |
Cowl top seal |
|
13. |
Cowl top side trim cover (LH) |
