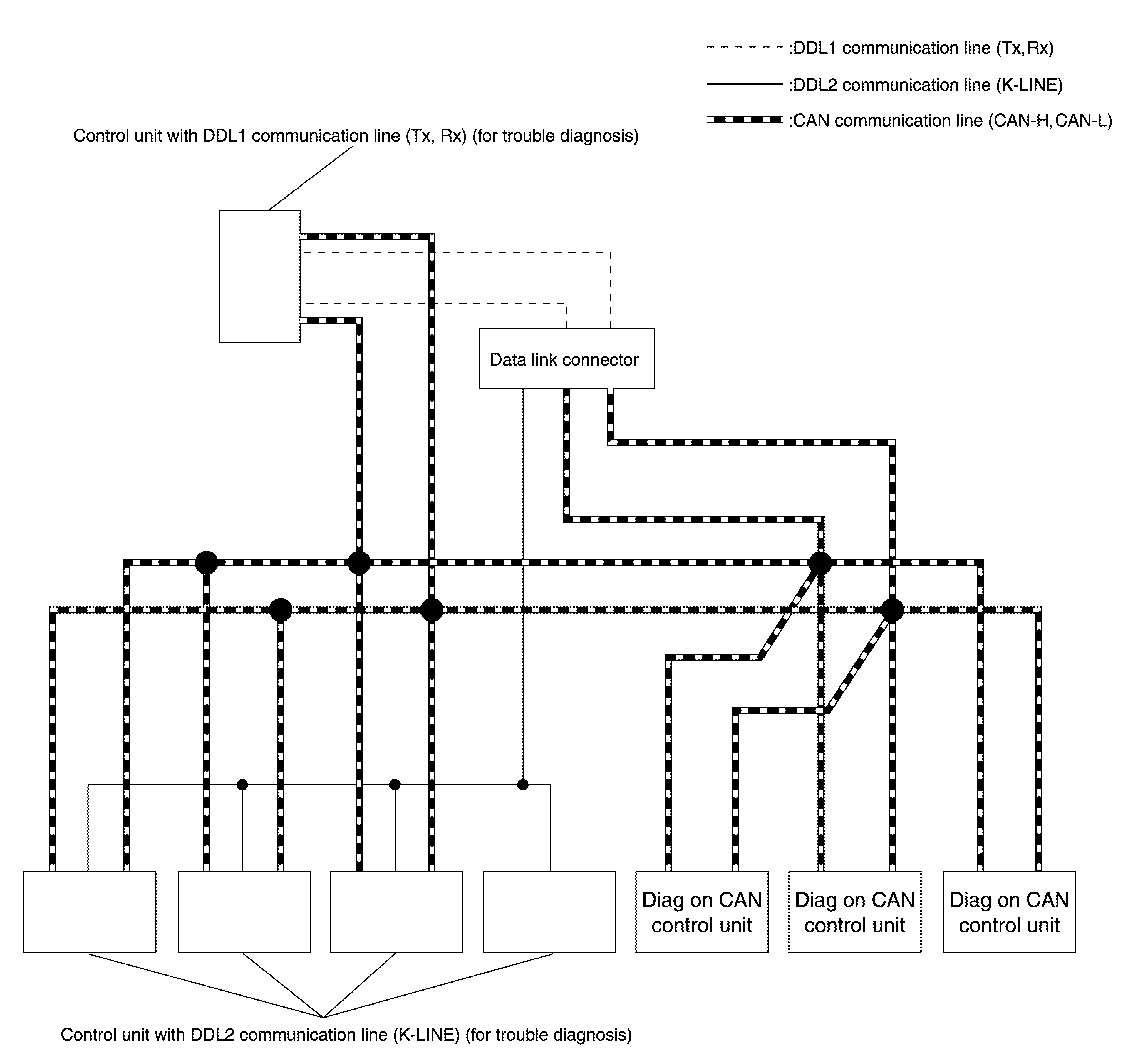

System Diagram
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
Name |
Harness |
Description |
|
DDL1 |
Tx Rx |
For communications with the diagnostic tool. (CAN-H and CAN-L are used for controlling) |
|
DDL2 |
K-LINE |
For communications with the diagnostic tool. (CAN-H and CAN-L are used for controlling) |
|
Diag on CAN |
CAN-H CAN-L |
For communications with the diagnostic tool. (CAN-H and CAN-L are also used for control and diagnoses.) |
