Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not press on the panel surface of display (glass area).
Do not press or pull out the movable part of display.

Remove the headrest trim retainer (A).

Courtesy of NISSAN NORTH AMERICA, INC.

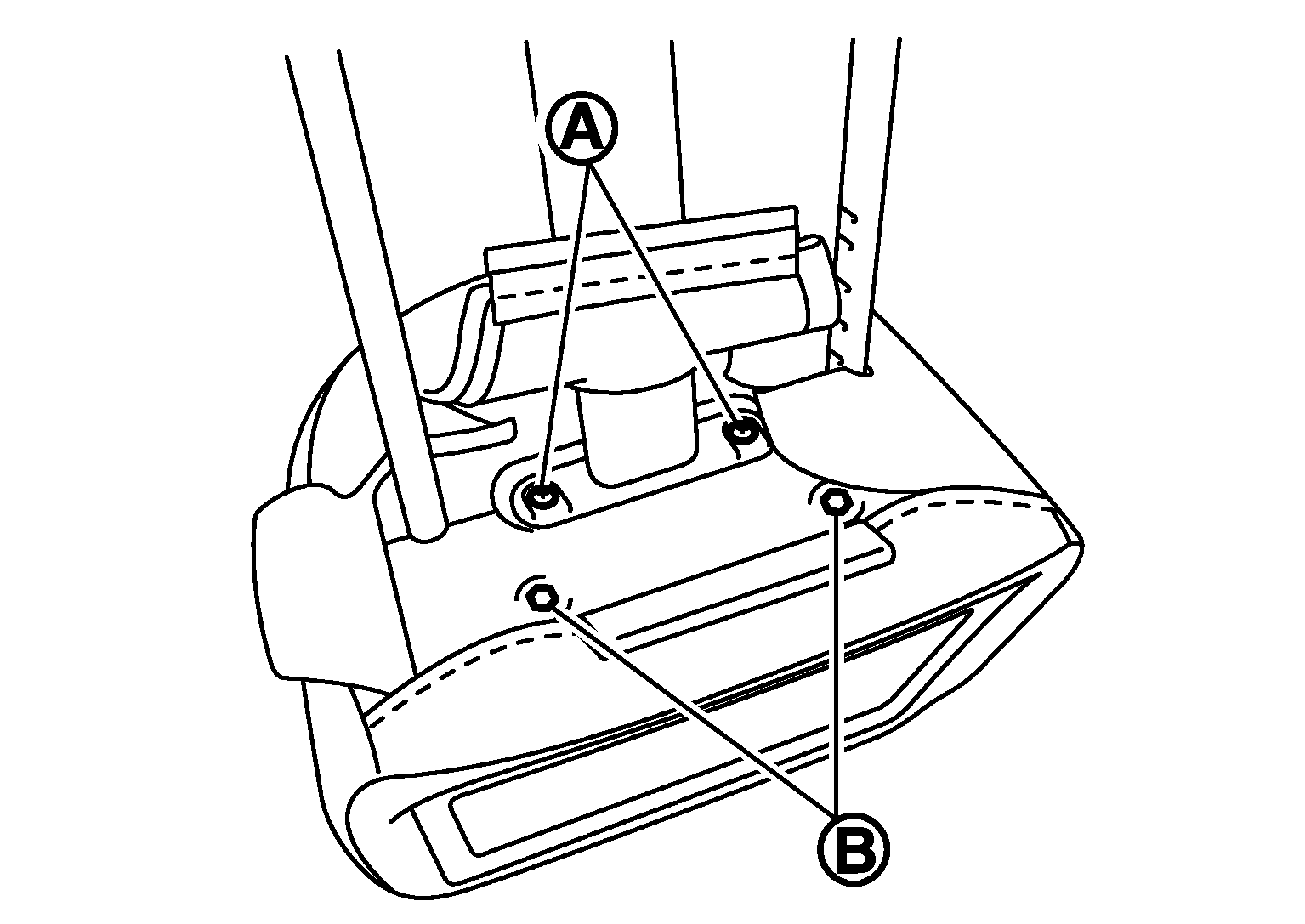

Remove the headrest display harness and upper tube screws (A), then remove headrest display unit bolts (B).

Courtesy of NISSAN NORTH AMERICA, INC.

Remove the headrest display escutcheon and headrest display.

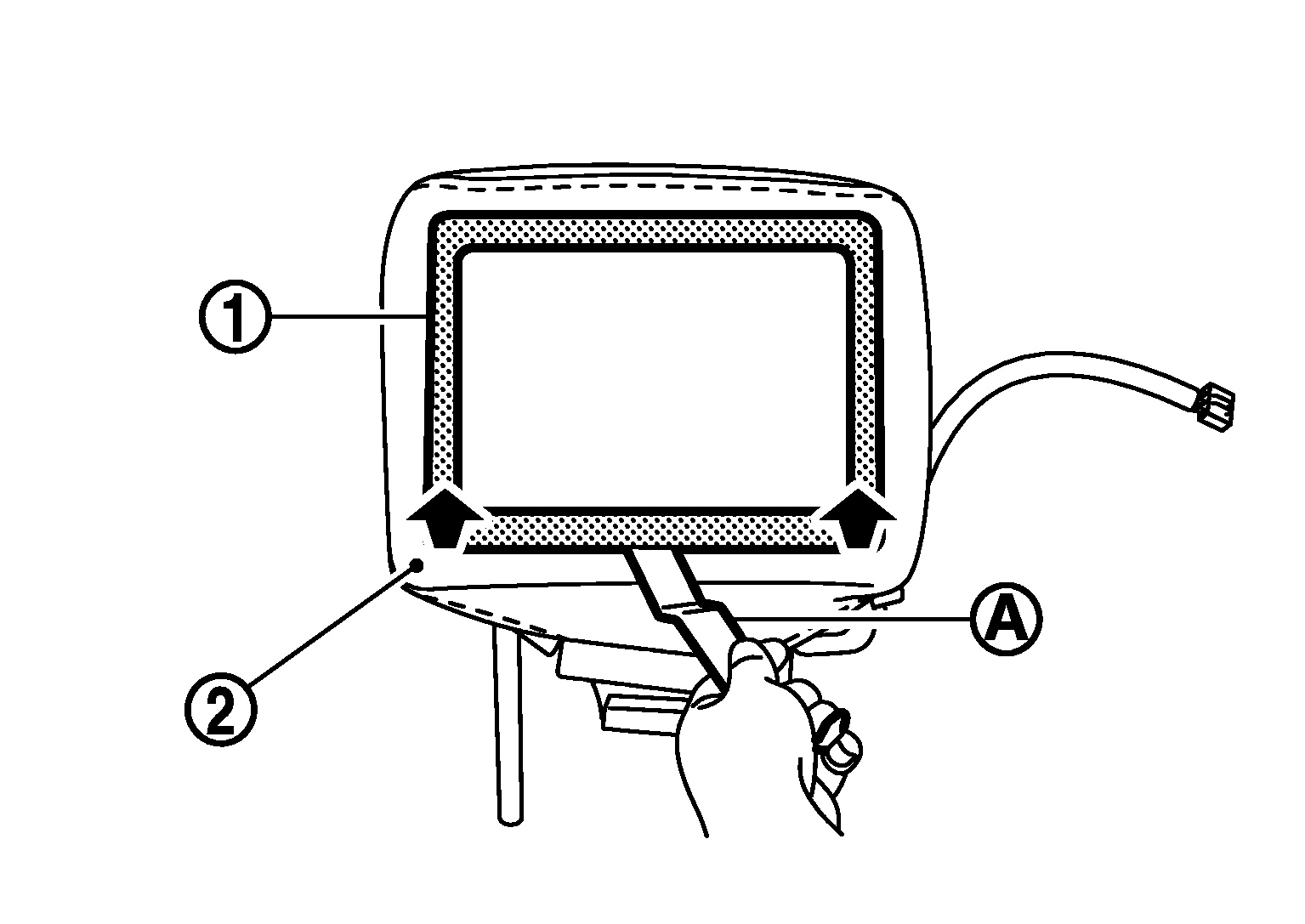

Insert a suitable tool (A) between lower side of headrest display escutcheon (1) and headrest trim (2) and pull out lower side of escutcheon.

Courtesy of NISSAN NORTH AMERICA, INC.

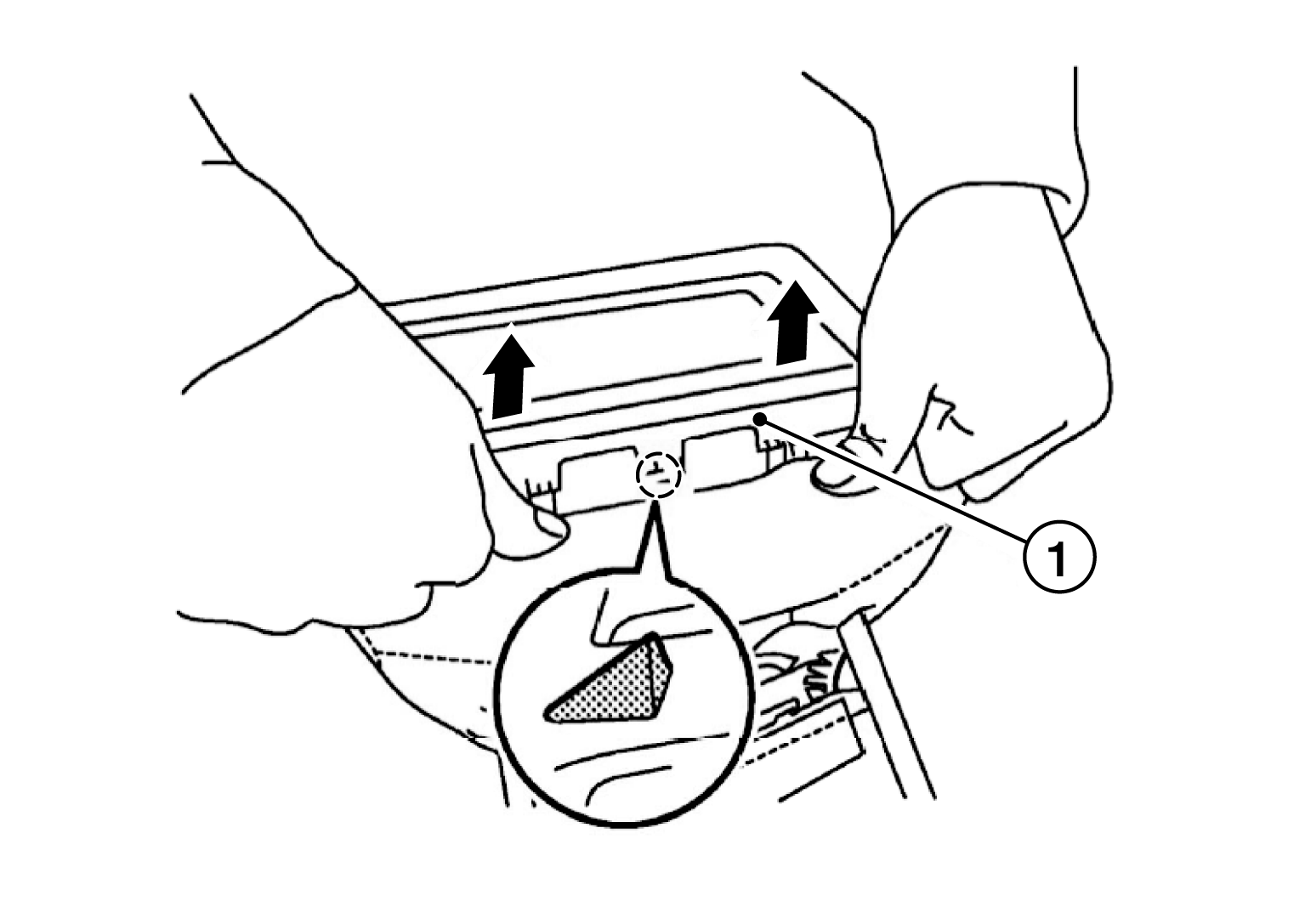

Pull out headrest display escutcheon (1) to the position that pawl is visible and disengage pawl.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

Pull out lower side of headrest display escutcheon from headrest.
CAUTION: Be careful not to damage pawls on upper side headrest display escutcheon.

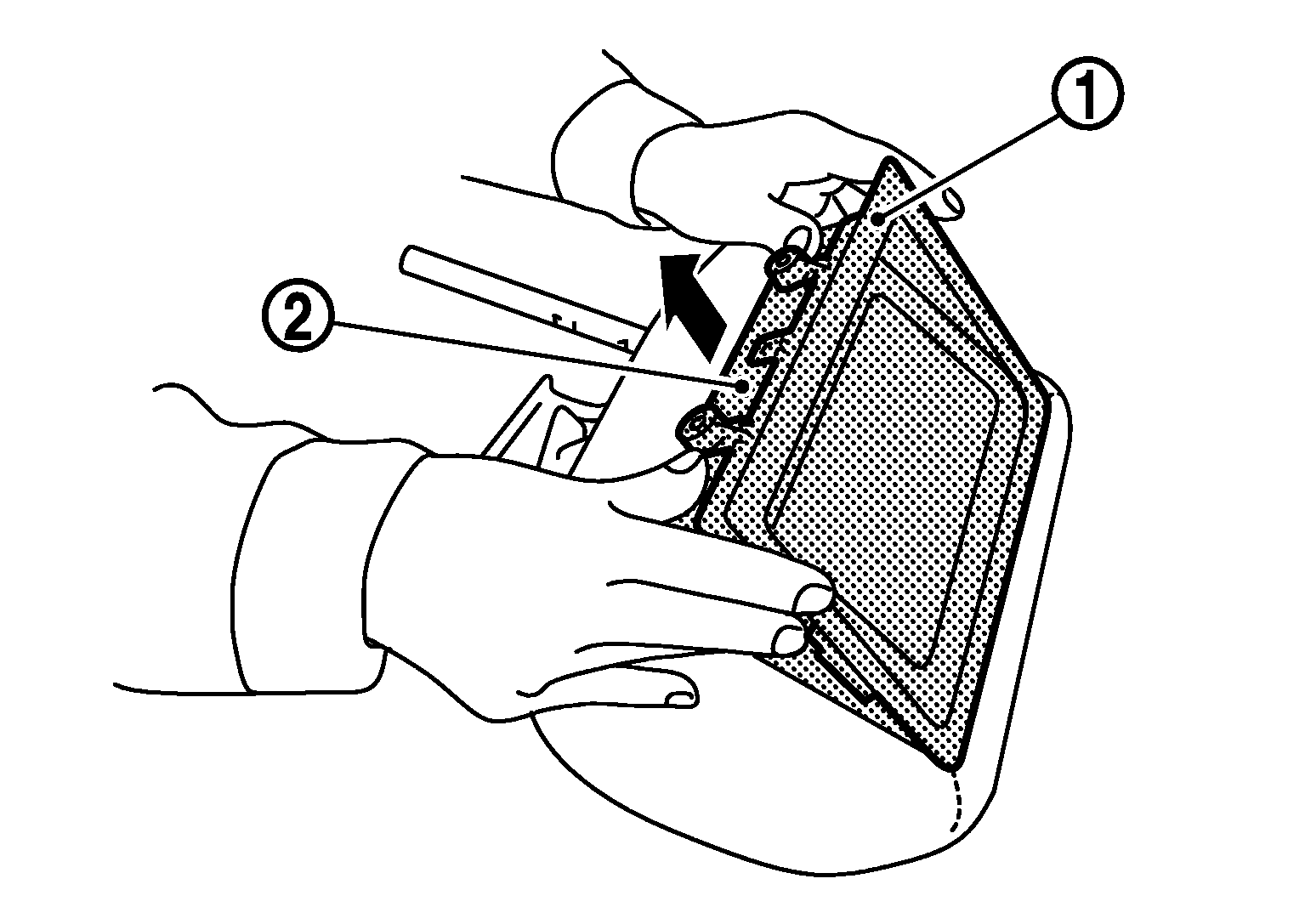

Pull downward and remove headrest display escutcheon (1) and headrest display unit (2) by pulling them out and removing pins on upper side of display.

Courtesy of NISSAN NORTH AMERICA, INC.

Disconnect the harness connectors from the headrest display unit.
Press headrest display escutcheon to the headrest display unit side. Disconnect pawls on upper side and remove headrest display escutcheon.

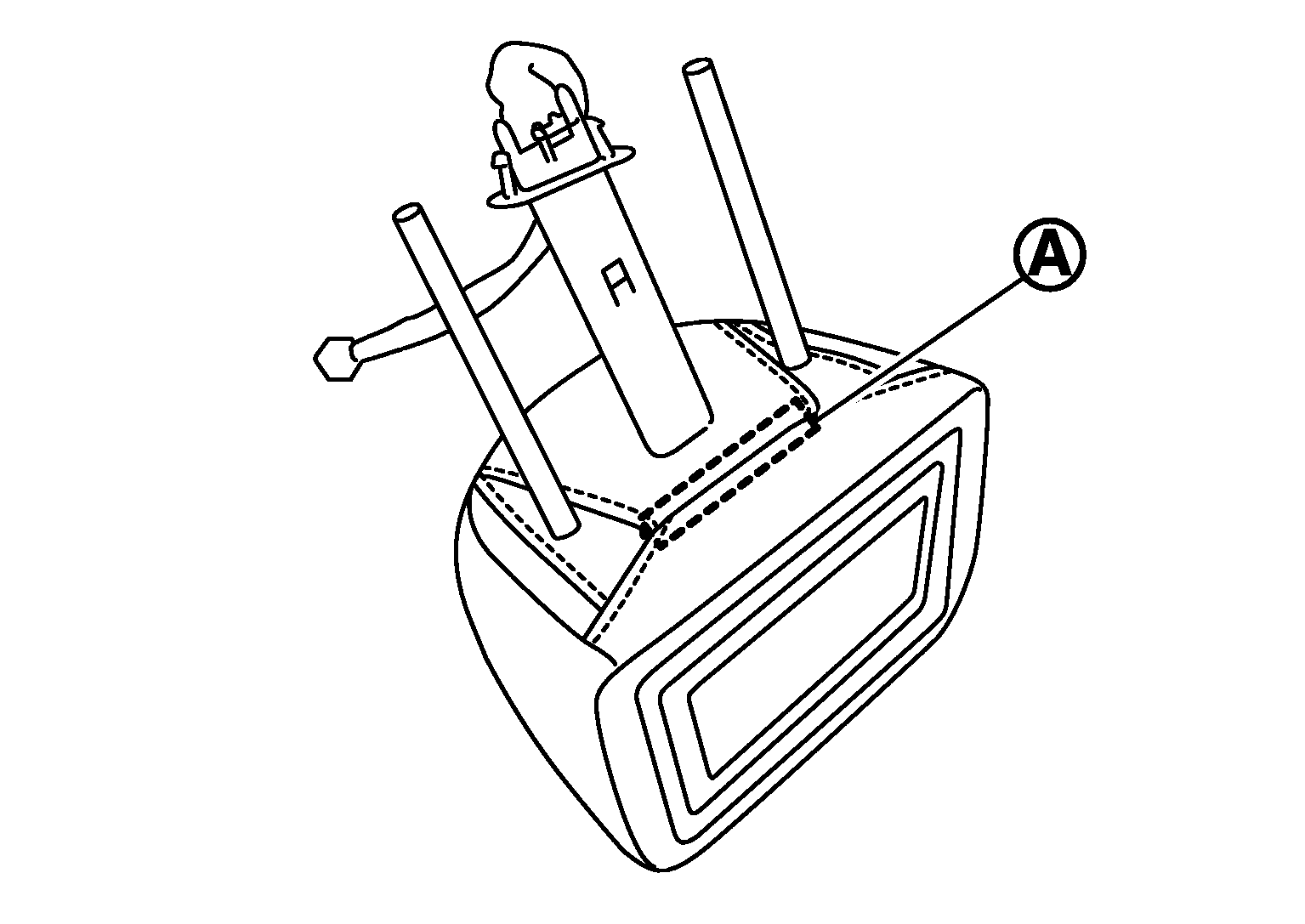

Remove the headrest display harness upper tube from headrest trim.
