Component Parts Location
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

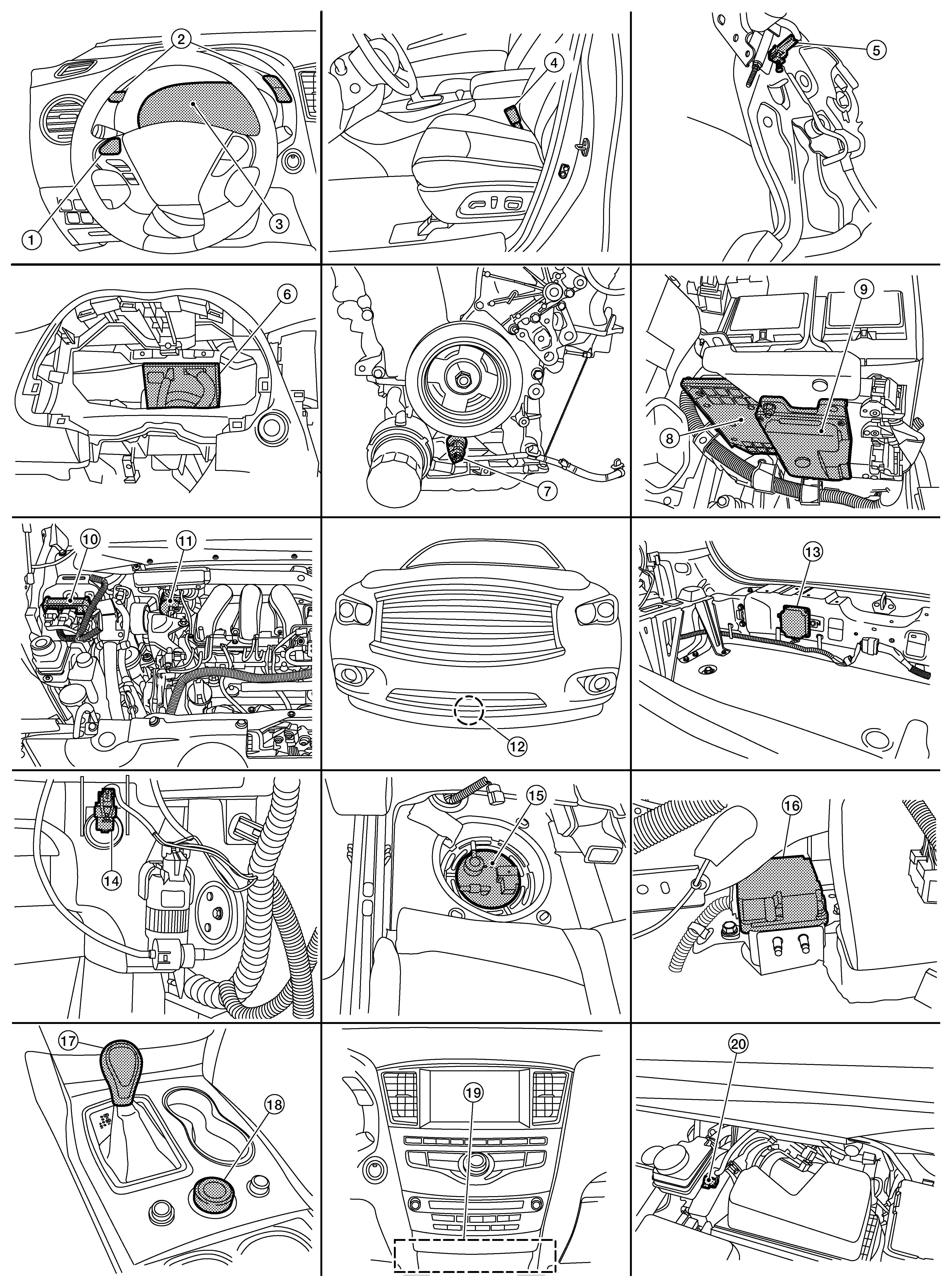

1. |
Steering switch |
2. |
Meter control switches |
3. |
Combination meter |
|
4. |
Seat belt buckle switch LH (RH similar) |
5. |
Parking brake switch |
6. |
BCM (view with combination meter removed) |
|
7. |
Engine oil pressure sensor (VQ35DE) |
8. |
ECM (VQ35DE) |
9. |
TCM |
|
10. |
Power steering control module |
11. |
ABS actuator and electric unit (control unit) |
12. |
Ambient sensor |
|
13. |
ADAS control unit (view of rear luggage room area) |
14. |
Washer fluid level switch (view with front fascia removed) |
15. |
Fuel level sensor unit and fuel pump (view with fuel pump inspection cover removed) |
|
16. |
Air bag diagnosis sensor unit (view with center console assembly removed) |
17. |
CVT shift selector |
18. |
Drive mode select switch |
|
19. |
A/C auto amp. |
20. |
Brake fluid level switch |

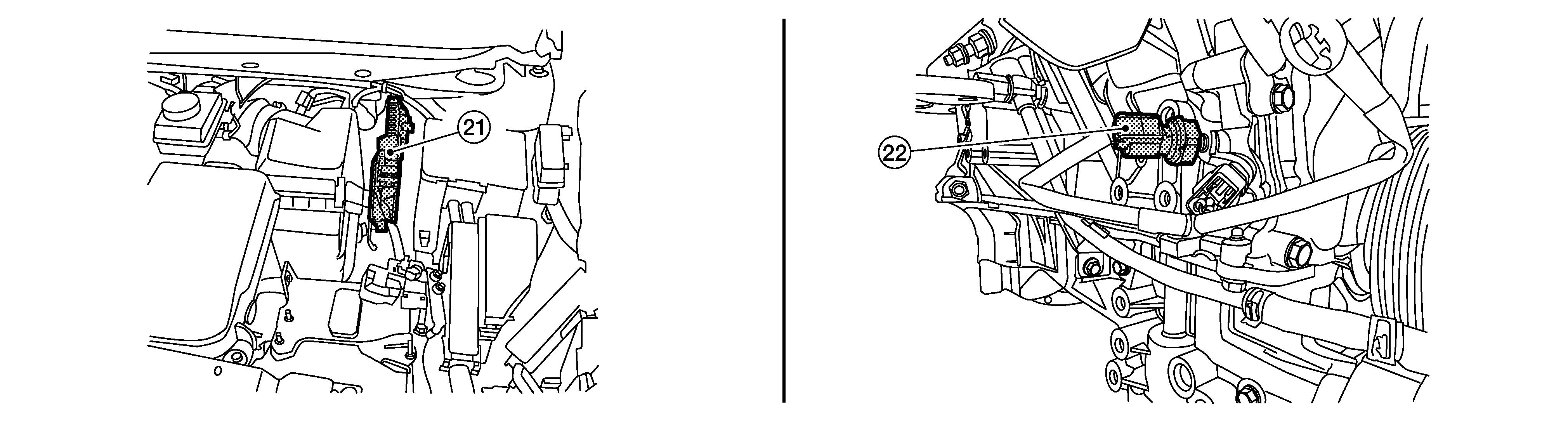

21. |
ECM (VQ35DD) |
|
22. |
Engine oil pressure sensor (VQ35DD) |
