Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The illumination control switch, twin trip odometer switch, and backup collision intervention (BCI) switch are serviced as an assembly.

Remove cluster lid A. Refer to Removal and Installation .

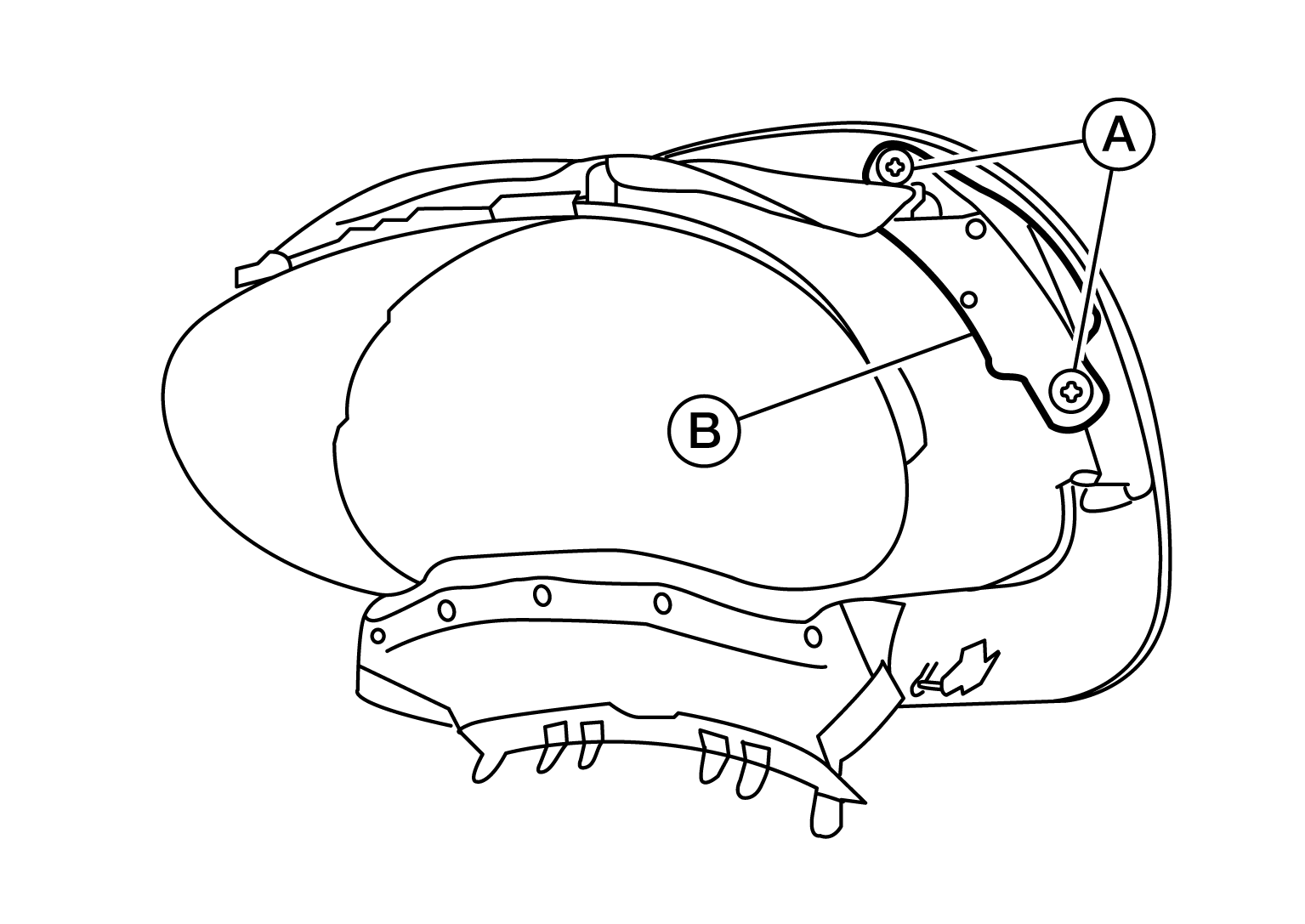

Remove the screws (A) from the illumination control switch (B).

Courtesy of NISSAN NORTH AMERICA, INC.

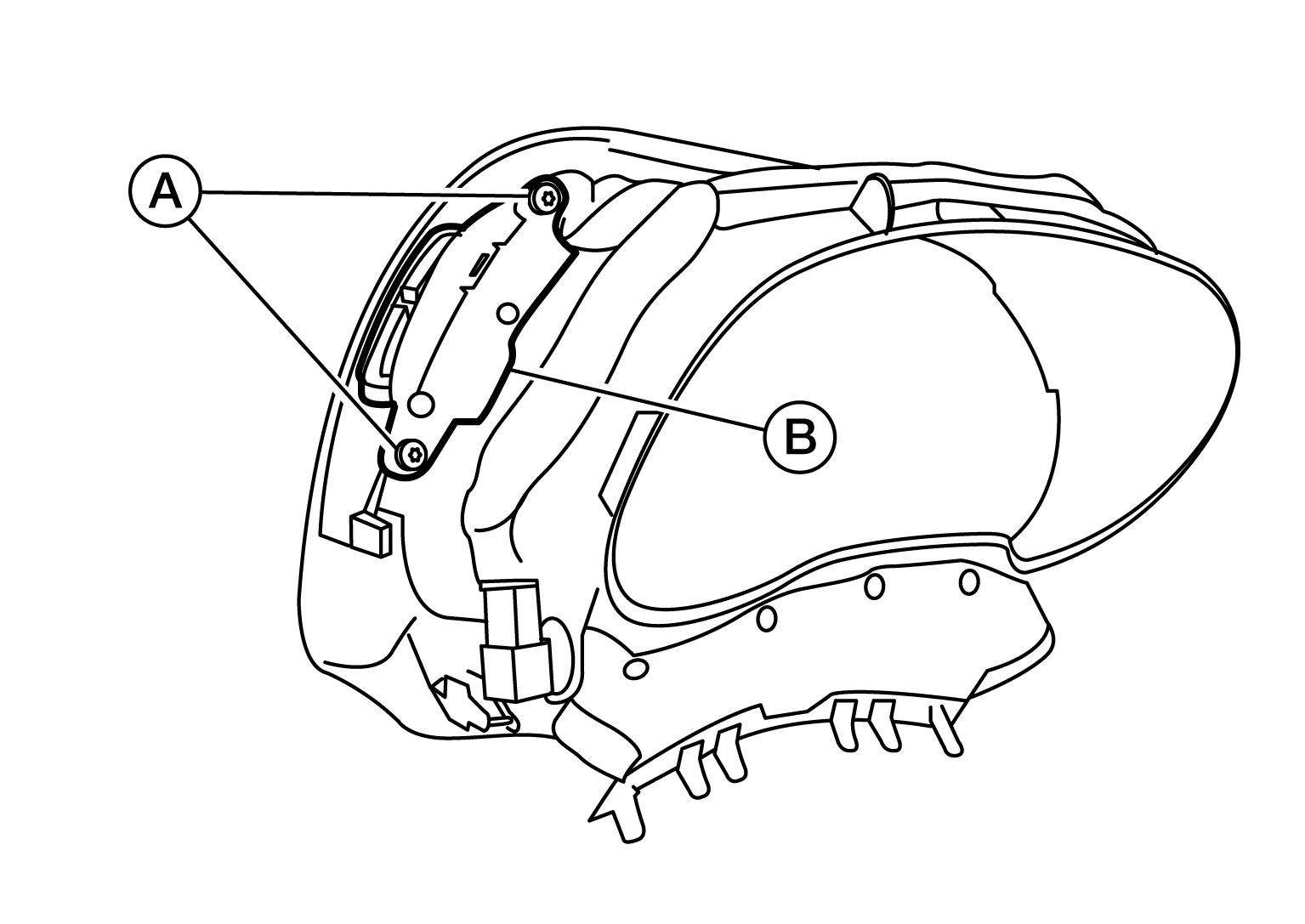

Remove the screws (A) from the backup collision intervention (BCI) switch (if equipped) / twin trip odometer switch (B).

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connector from the meter control switch.
Remove the meter control switch.
