Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

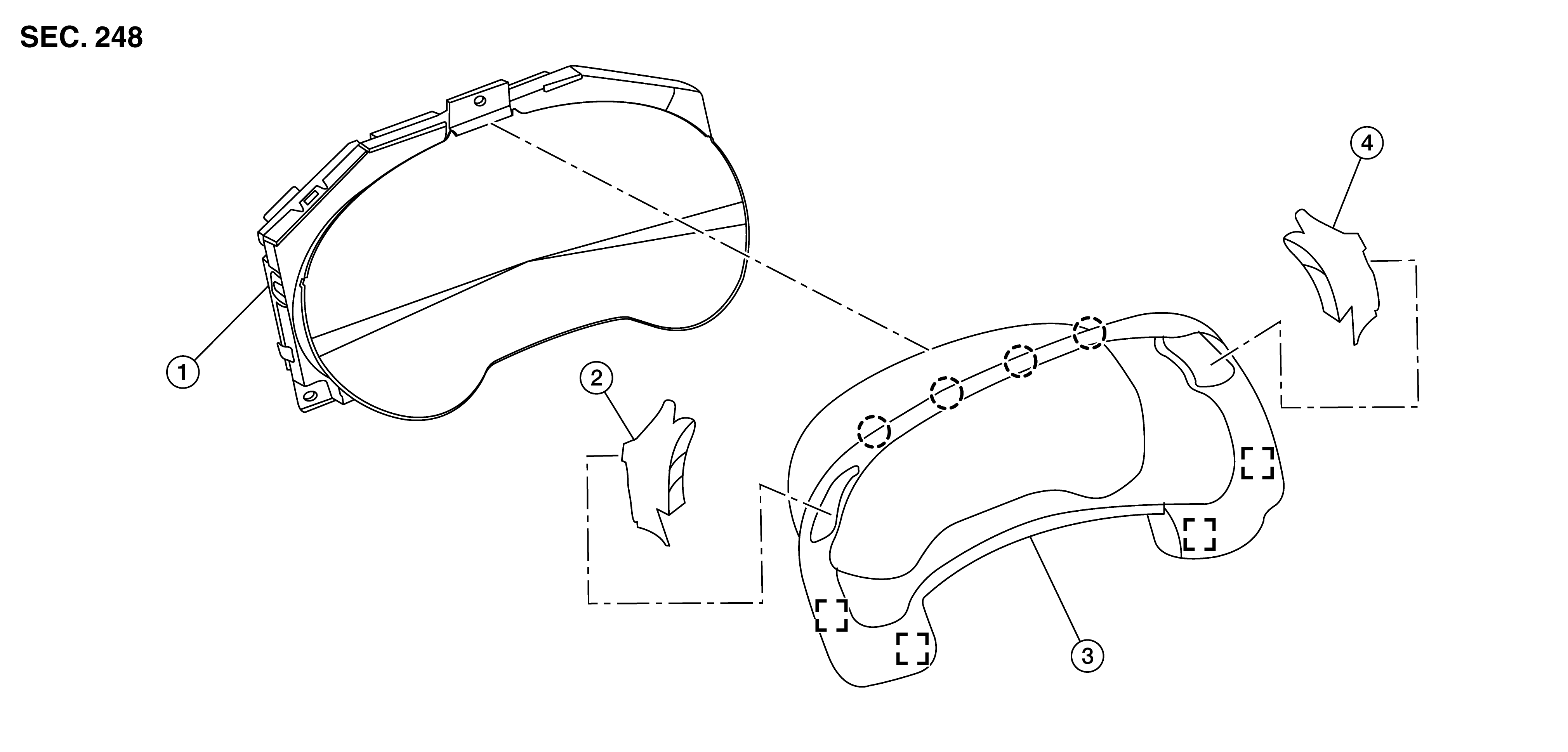

1. |
Combination meter |
2. |
Illumination control switch |
3. |
Cluster lid A |
|
4. |
BCI (if equipped) / twin trip odometer switch |
|
Pawl |
|
Metal clip |
- Remove cluster lid A. Refer to Removal and Installation .
- Remove the combination meter screws.
- Disconnect the harness connector from the combination meter, then remove the combination meter.
