Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door mirror rear finisher. Refer to Removal and Installation .

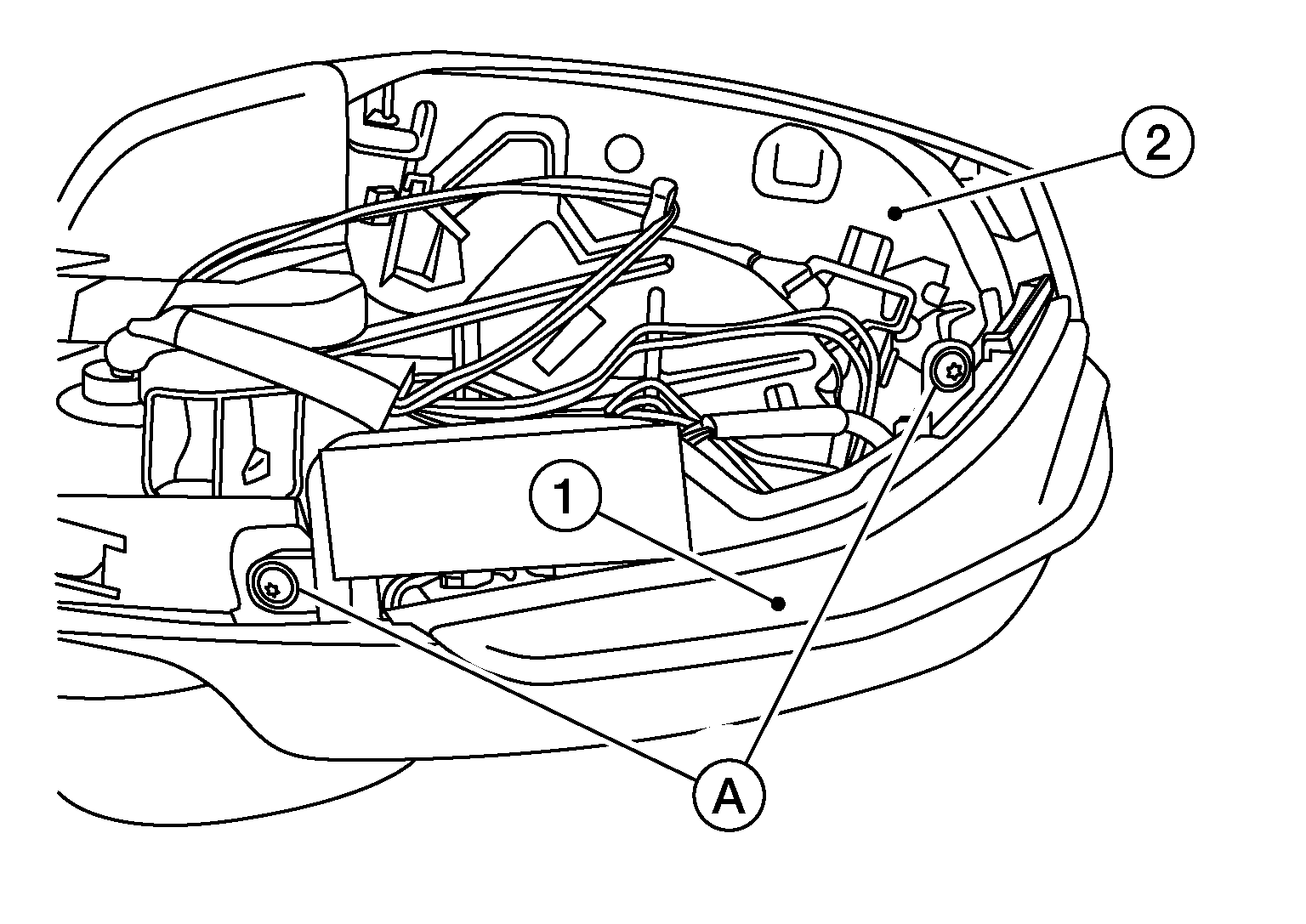

  2. Remove the screws (A) and remove the turn signal lamp (1) from the door mirror (2).
    GNSALLIA2013Z-013Courtesy of NISSAN NORTH AMERICA, INC.

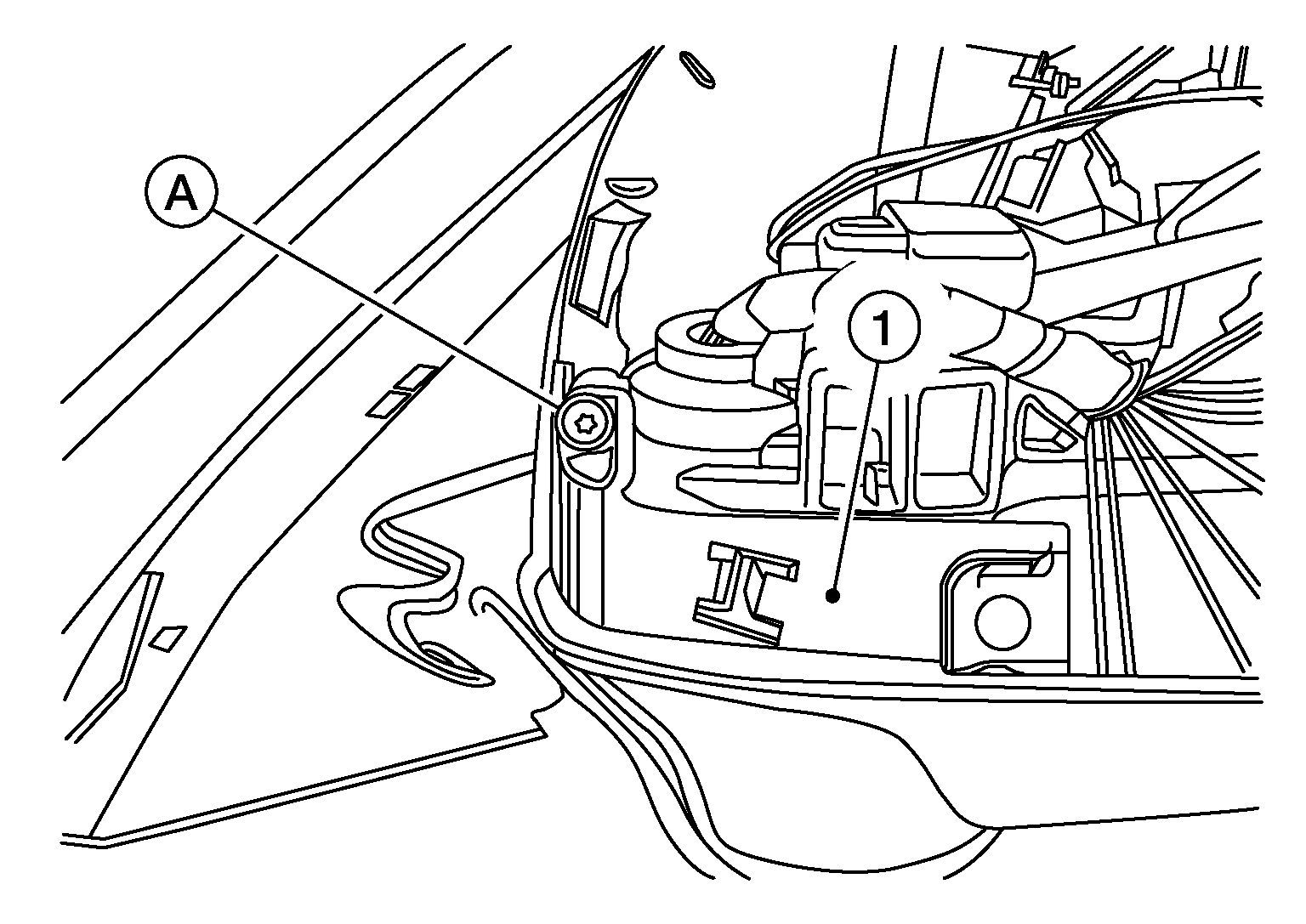

  3. Remove the screw (A) from camera finisher (1).
    GNSALLIA2017Z-017Courtesy of NISSAN NORTH AMERICA, INC.

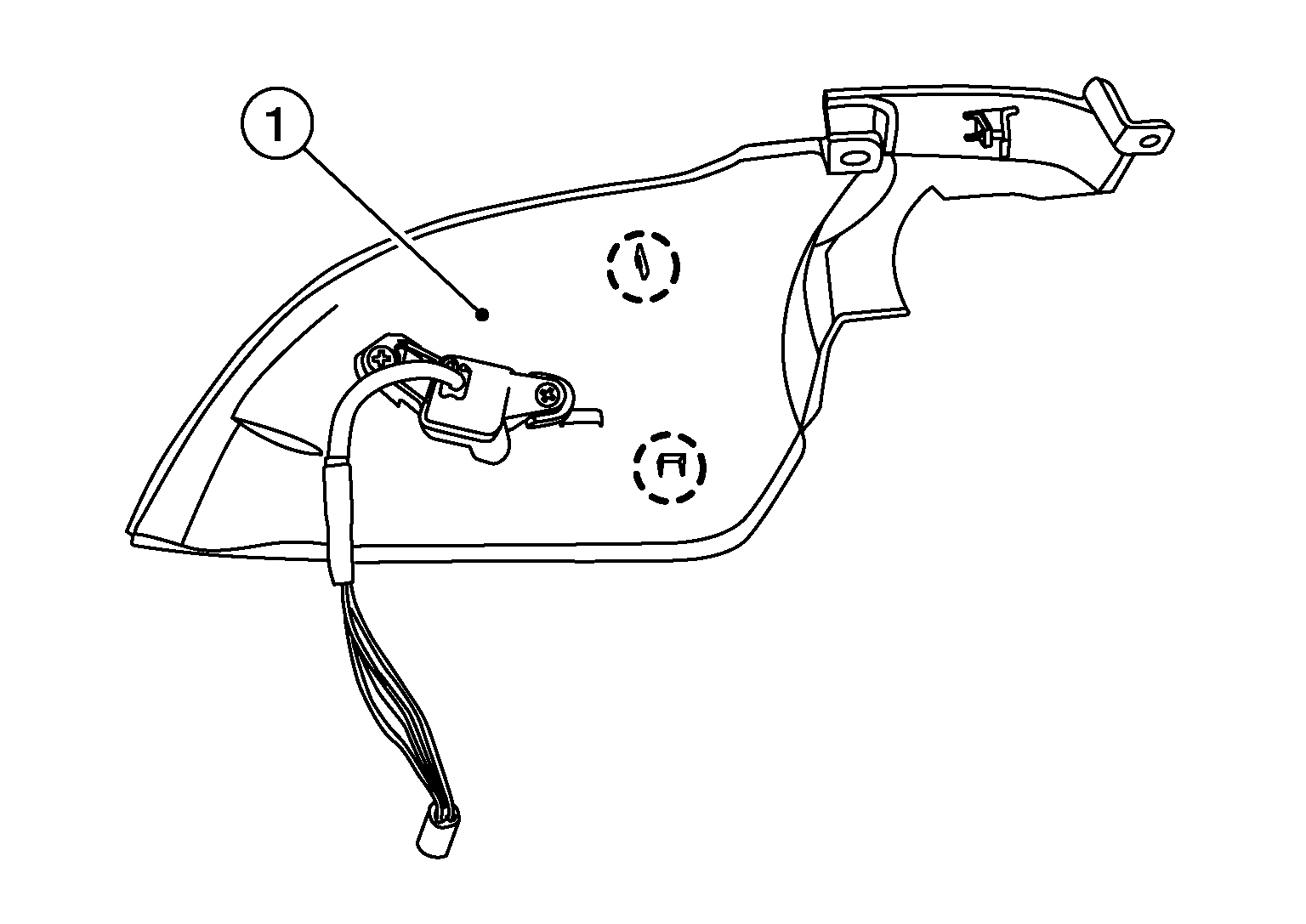

  4. Using a suitable tool release pawls and remove camera finisher (1).
    GNSALLIA2018Z-018Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

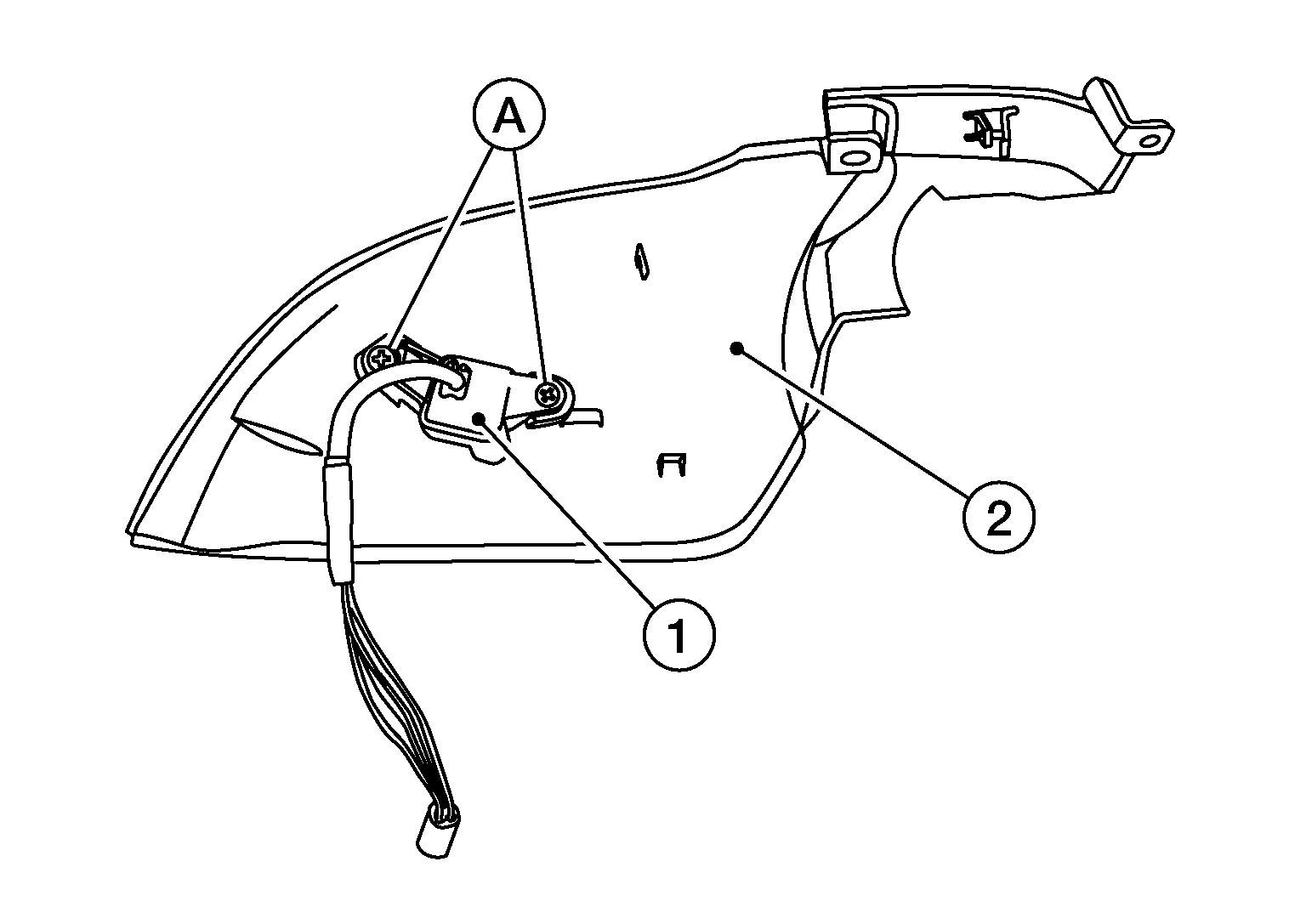

  5. Remove the screws (A) and remove side camera (1) from camera finisher (2).
    GNSALLIA2019Z-019Courtesy of NISSAN NORTH AMERICA, INC.
