Removal and Installation: Installation
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
- Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease to the back plate and brake shoe.CAUTION: The parking brake shoes for the front side are made of different materials from those for the rear side. Do not misidentify them when removing and replacing.

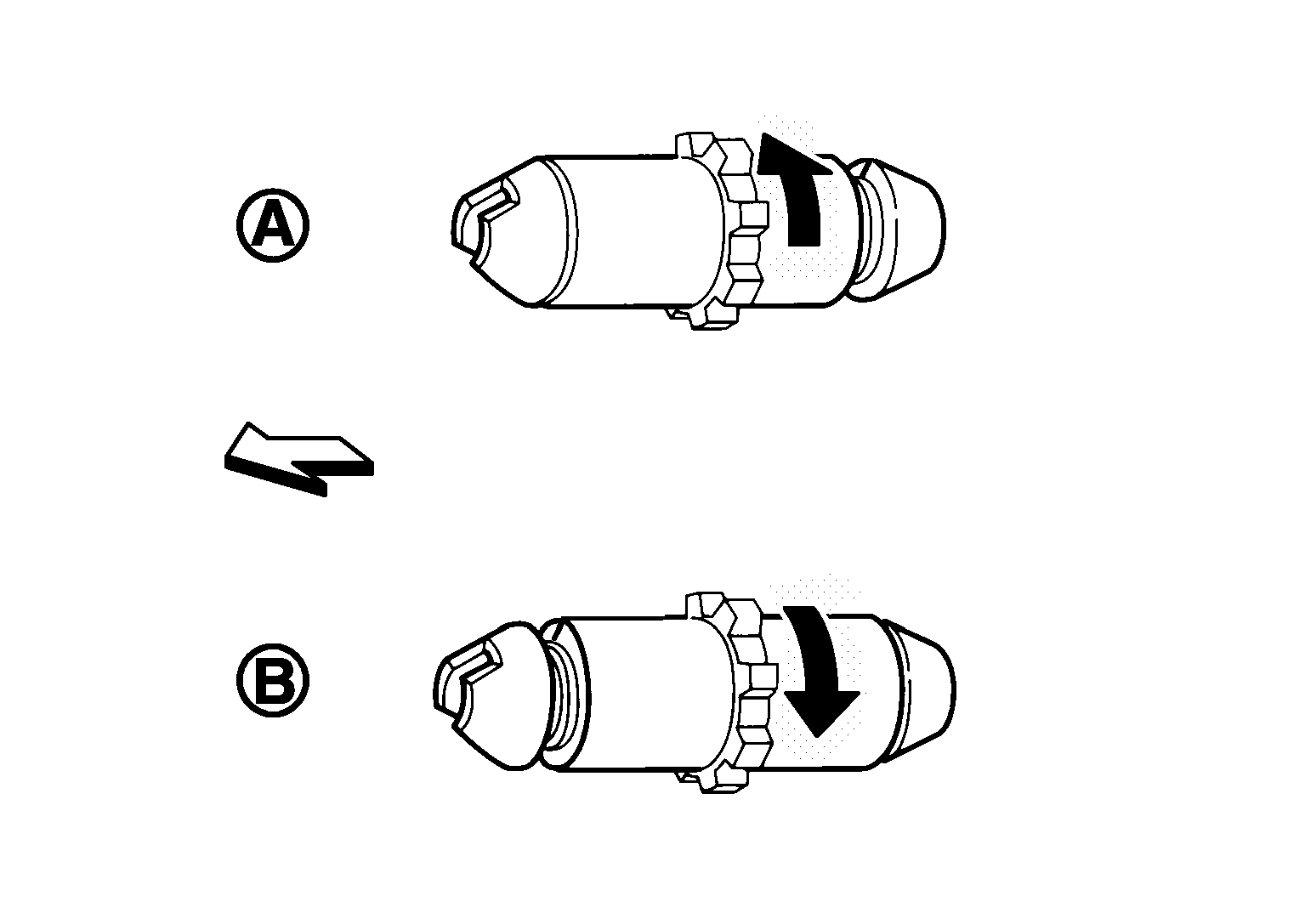

- Assemble adjusters so that threaded part is expanded when rotating it in the direction shown by arrow, below.
(A)
: For RH brake
(B)
: For LH brake
: Front
: Adjuster expands
- Shorten adjuster by rotating it.
- When assembling the adjuster, apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease to threads and pivot.
- Check parking brake shoe lining and drum inner surface for grease. Wipe off any grease on the surfaces.
