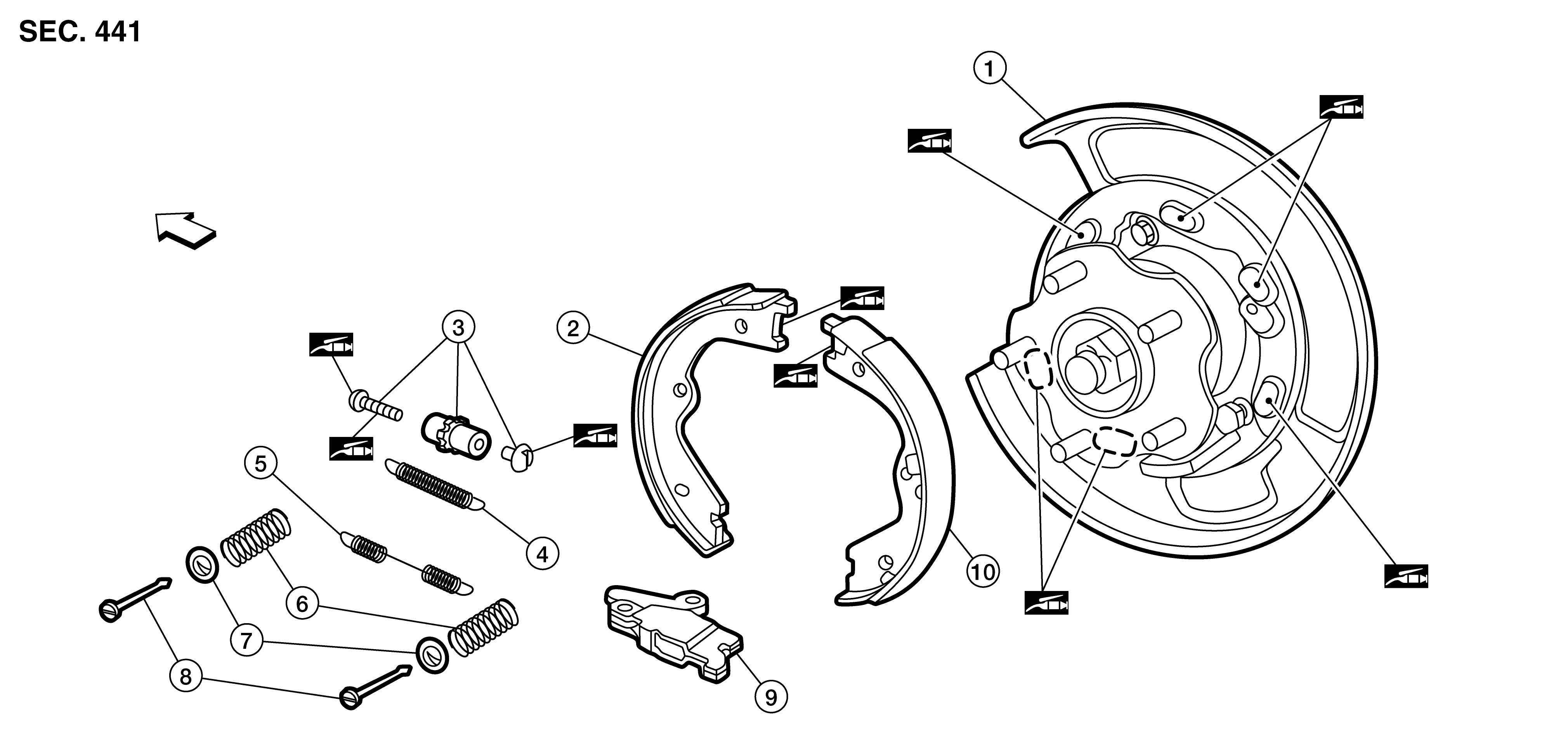

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Back plate
|
2.
|
Parking brake shoe (front)
|
3.
|
Adjuster
|
|
4.
|
Adjuster spring
|
5.
|
Return spring
|
6.
|
Anti-rattle spring
|
|
7.
|
Retainer
|
8.
|
Anti-rattle pin
|
9.
|
Toggle lever
|
|
10.
|
Parking brake shoe (rear)
|
|
Front
|
|
Apply PBC (Poly Butyl Cuprysil) grease or silicone based grease
|
