Exhaust Manifold to Exhaust Front Tube

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

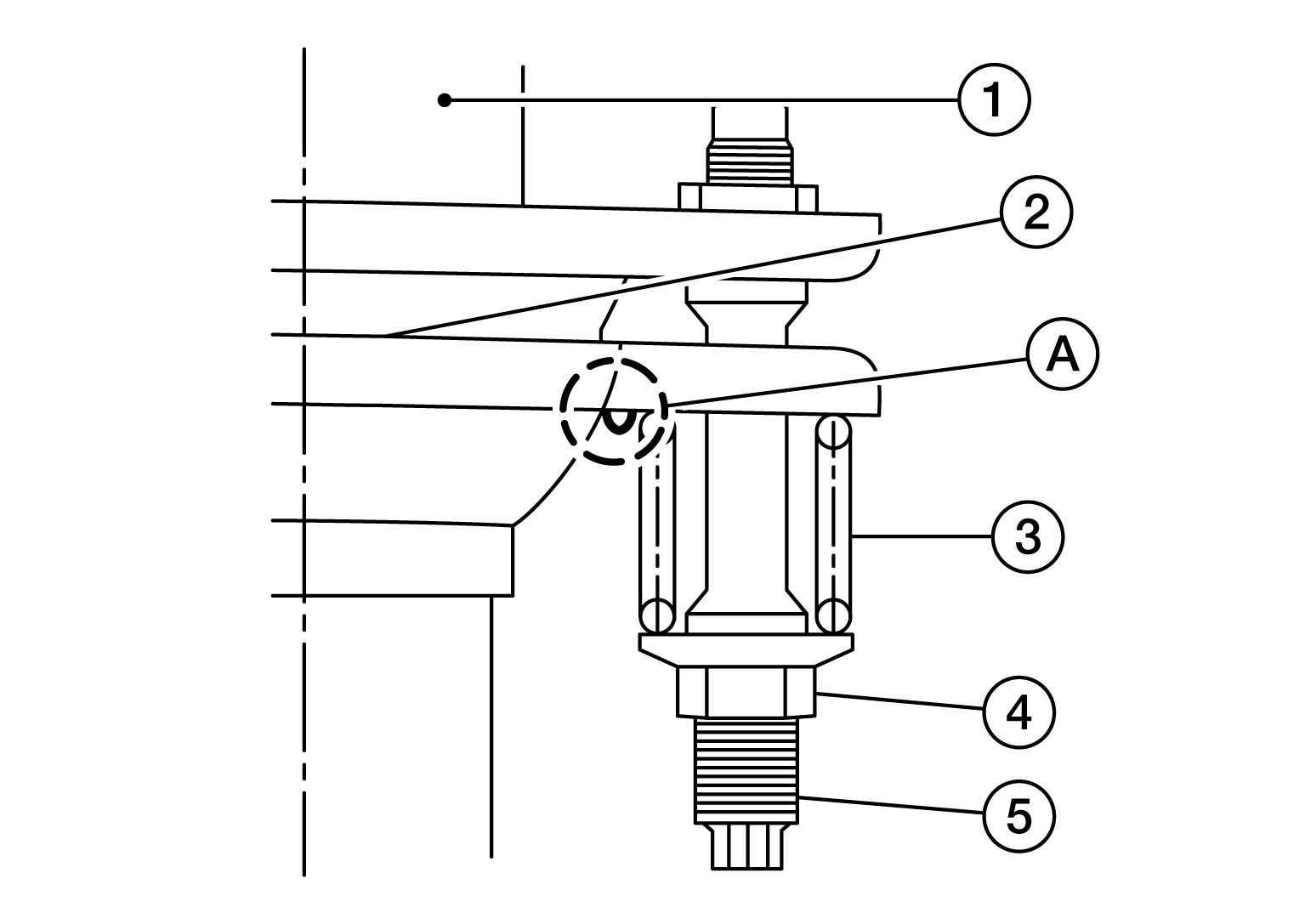

Install the seal bearing (2) into the front exhaust tube (1).

Courtesy of NISSAN NORTH AMERICA, INC.
When installing the spring (3) and nut (4), ensure the following:
- Make sure the spring (3) sits properly on the flange surface by aligning it to the locator dimples (A).
- Make sure the stud (5) does not contact the inside of the flange bolt hole.
  CAUTION: Be careful not to damage seal bearing surface when installing.
Compact spring by tightening nut.
CAUTION:
- Ensure springs are seated correctly on the flange and not sitting on locator dimples (A).
- Assemble the seal bearing so that the nut is located in the center of the flare flange hole without contact with the flange.
