Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheels and tires using power tool. Refer to Adjustment .
  2. Remove the engine and transmission with the front suspension member. Refer to REMOVAL AND INSTALLATION (FWD) or REMOVAL AND INSTALLATION (AWD).
    • Engine, transmission and suspension member must be removed as an assembly.
  3. Lift engine and transmission off of suspension member.

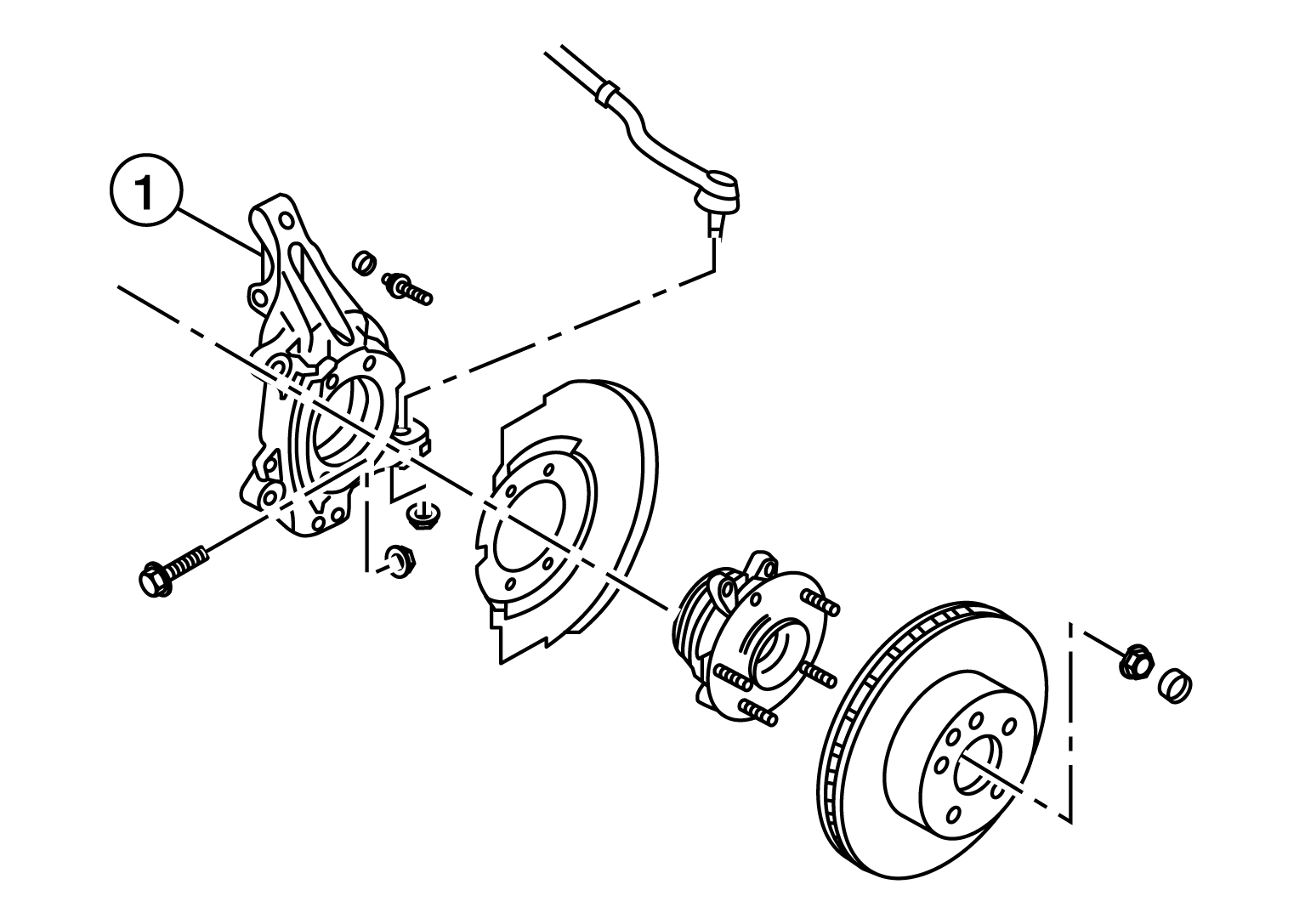

  4. Remove the steering knuckle (1). Refer to Removal and Installation .
    GNSDB122180Courtesy of NISSAN NORTH AMERICA, INC.

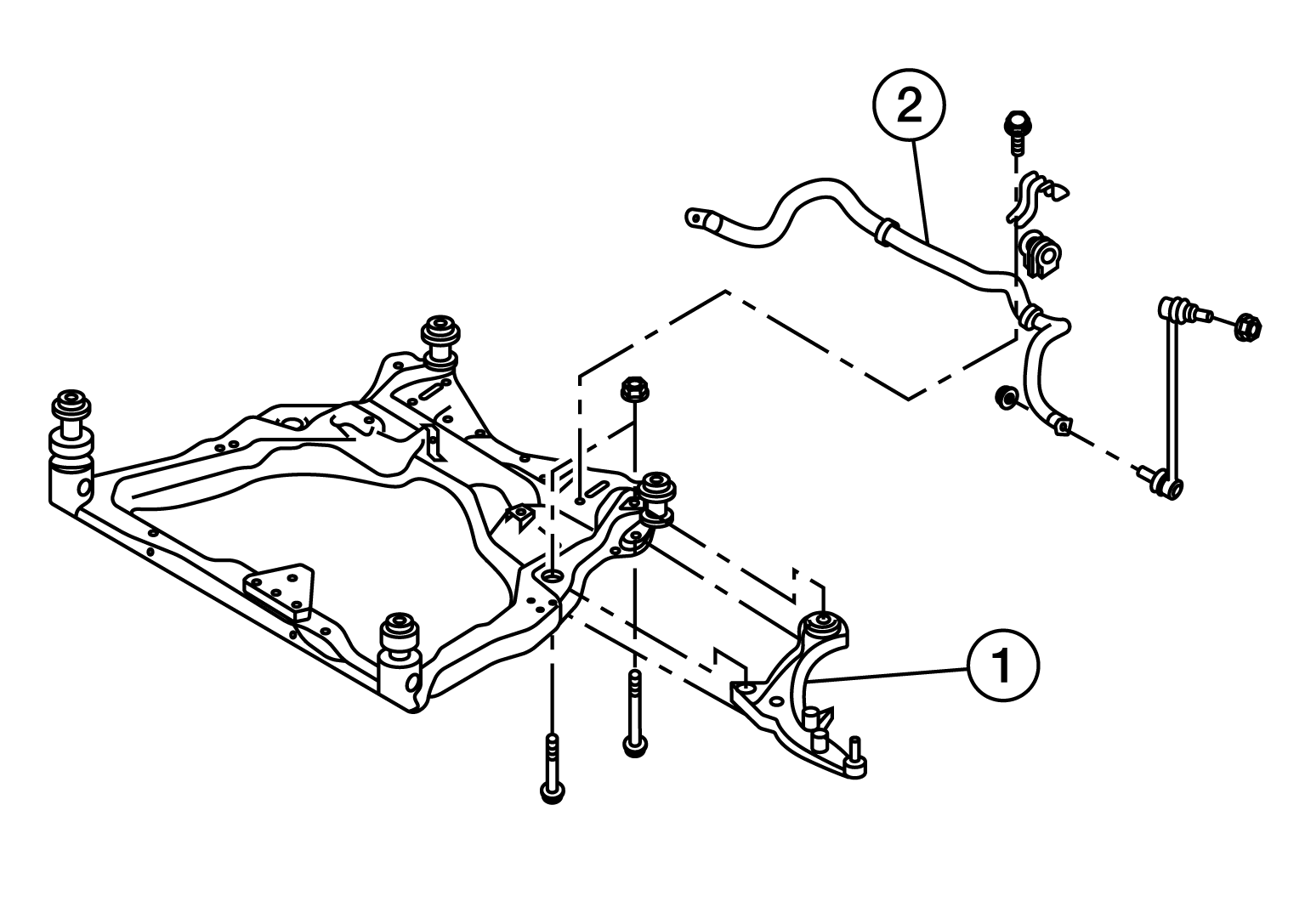

  5. Remove the transverse links (1) and stabilizer bar (2). Refer to Removal and Installation  and Removal and Installation .
    GNSALEIA0143Z-143Courtesy of NISSAN NORTH AMERICA, INC.

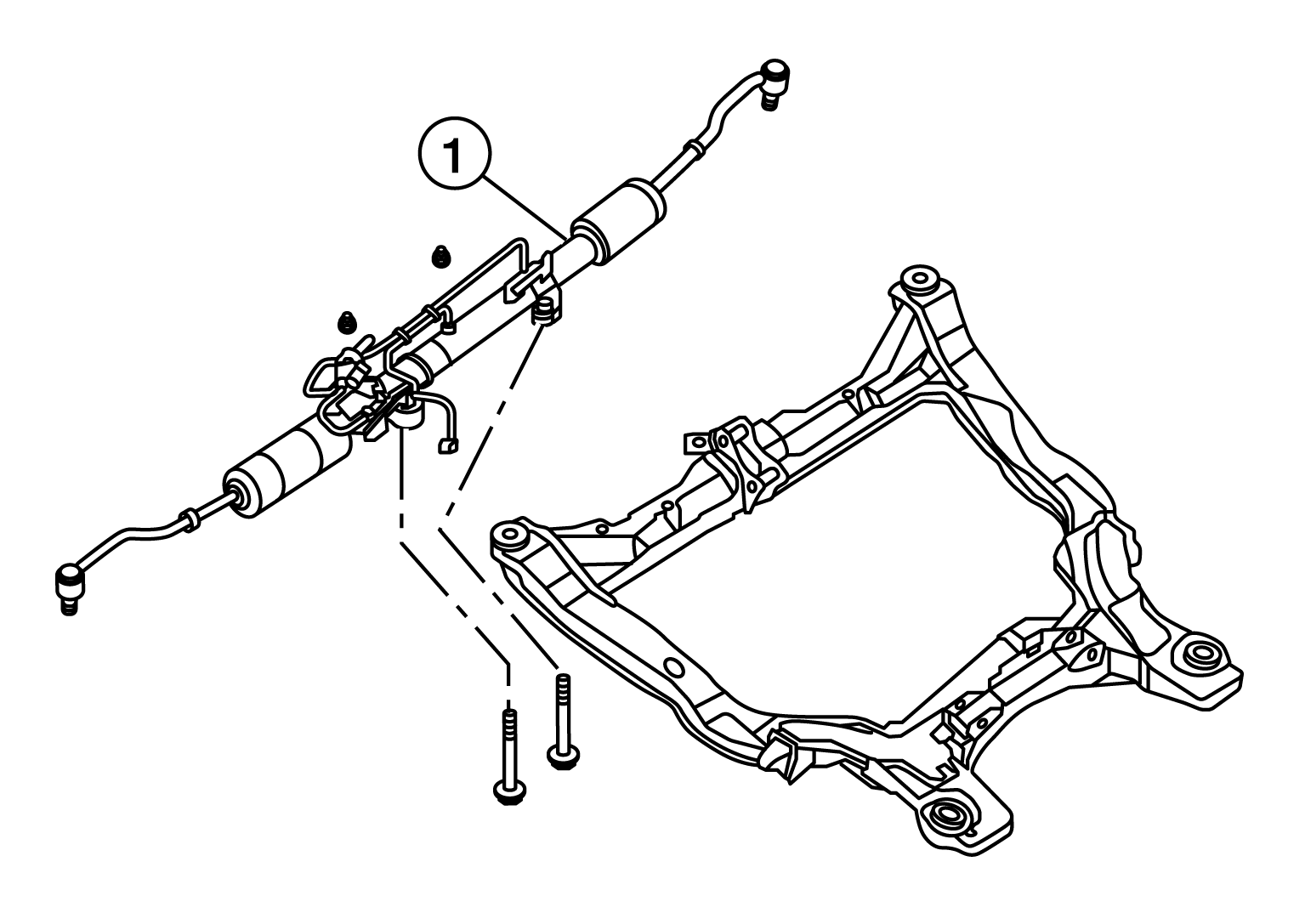

  6. Remove the steering gear assembly (1) and hydraulic lines. Refer to Exploded View .
    GNSALEIA0144Z-144Courtesy of NISSAN NORTH AMERICA, INC.
