Removal and Installation: Installation

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

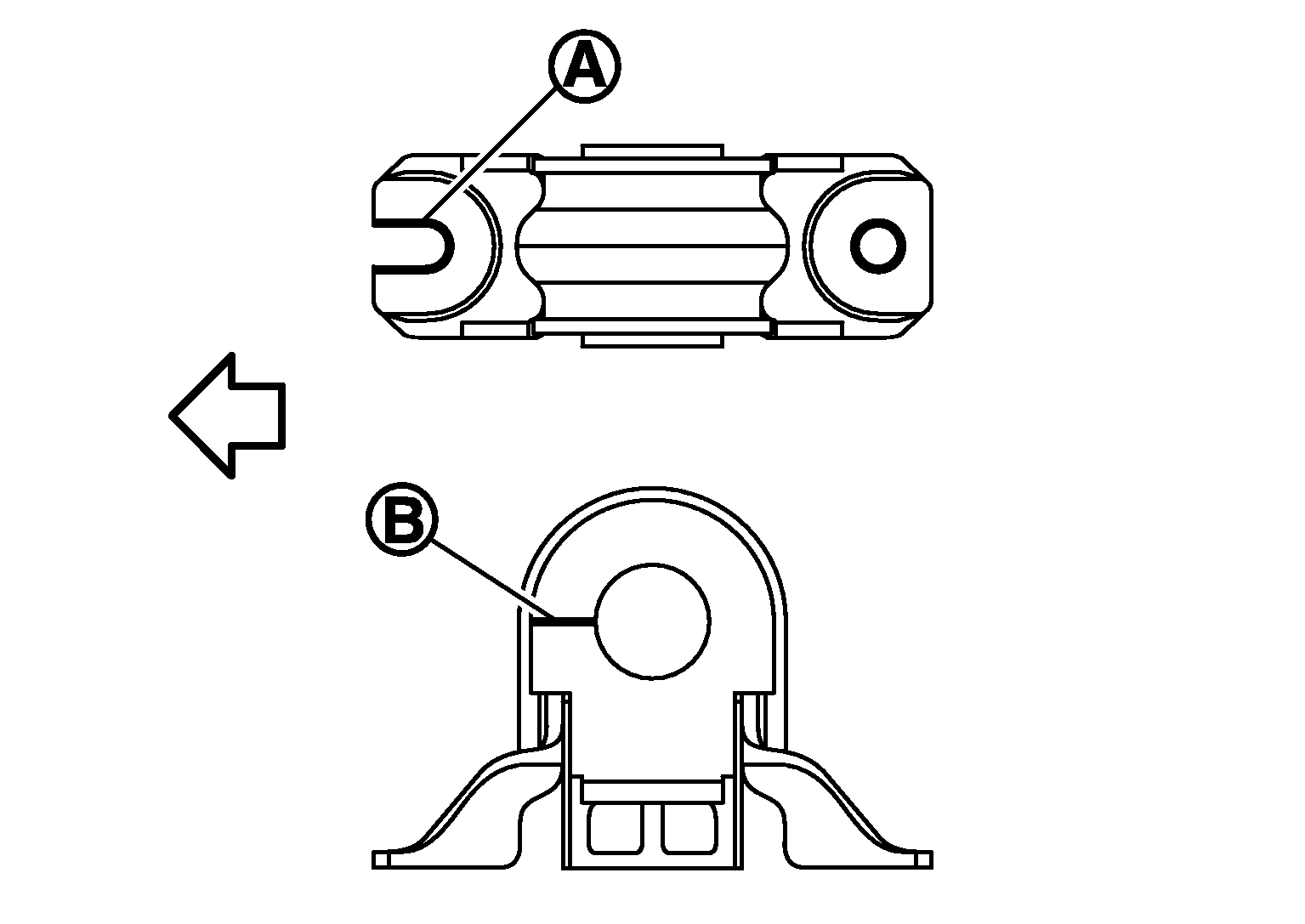

Install stabilizer clamp so that notch (A) is facing front of vehicle ( ).

Courtesy of NISSAN NORTH AMERICA, INC.
Install stabilizer bushing so that slit (B) is facing front of vehicle ( ).
Check wheel alignment. Refer to Inspection and Adjustment .
Adjust neutral position of steering angle sensor. Refer to Description .
