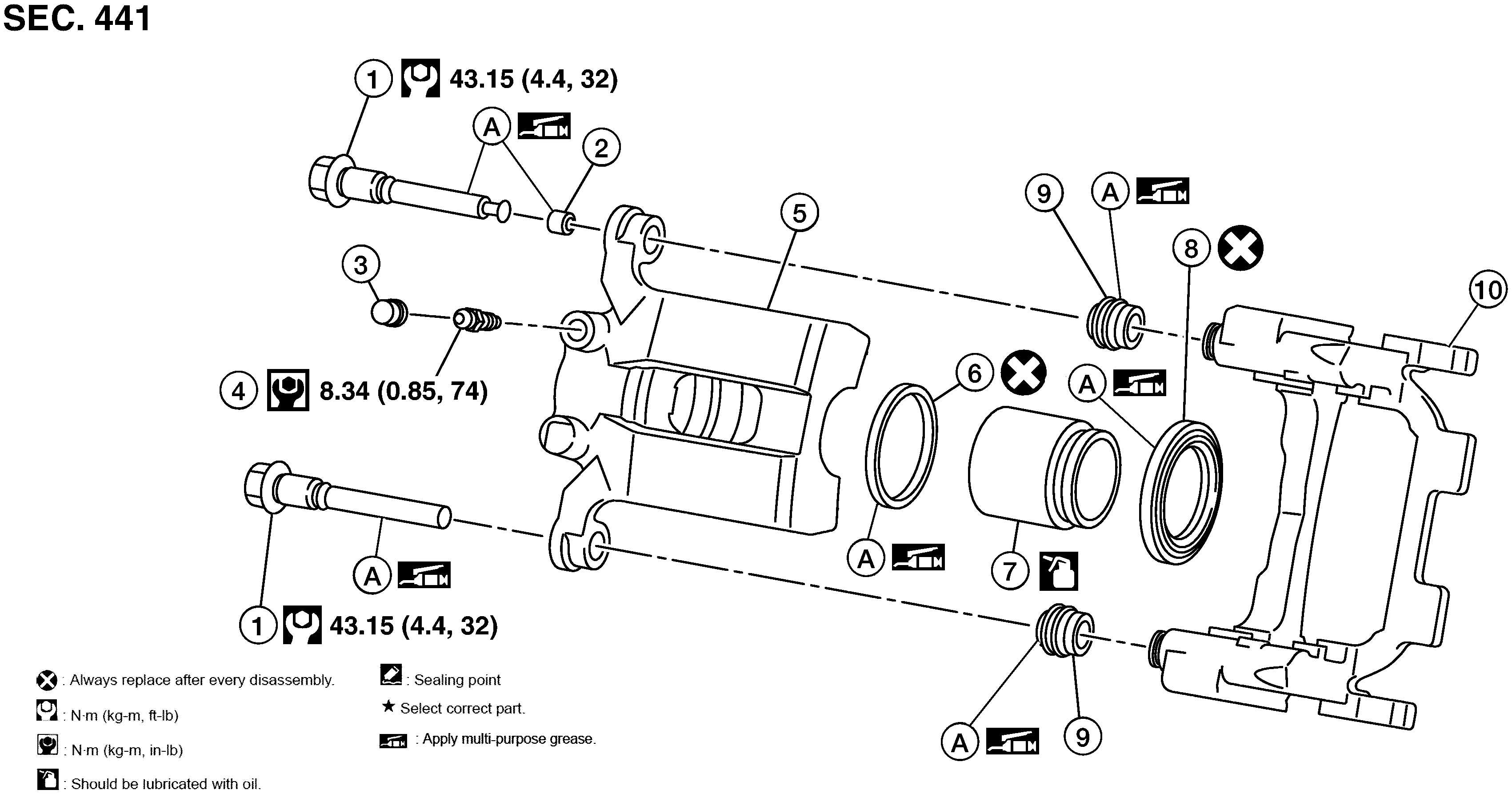

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Sliding pin bolt
|
2.
|
Sliding pin bolt bushing
|
3.
|
Cap
|
|
4.
|
Bleeder valve
|
5.
|
Brake caliper body
|
6.
|
Piston seal
|
|
7.
|
Piston
|
8.
|
Piston boot
|
9.
|
Sliding pin boot
|
|
10.
|
Torque member
|
A.
|
Rubber grease
|
|
Apply brake fluid
|
