Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

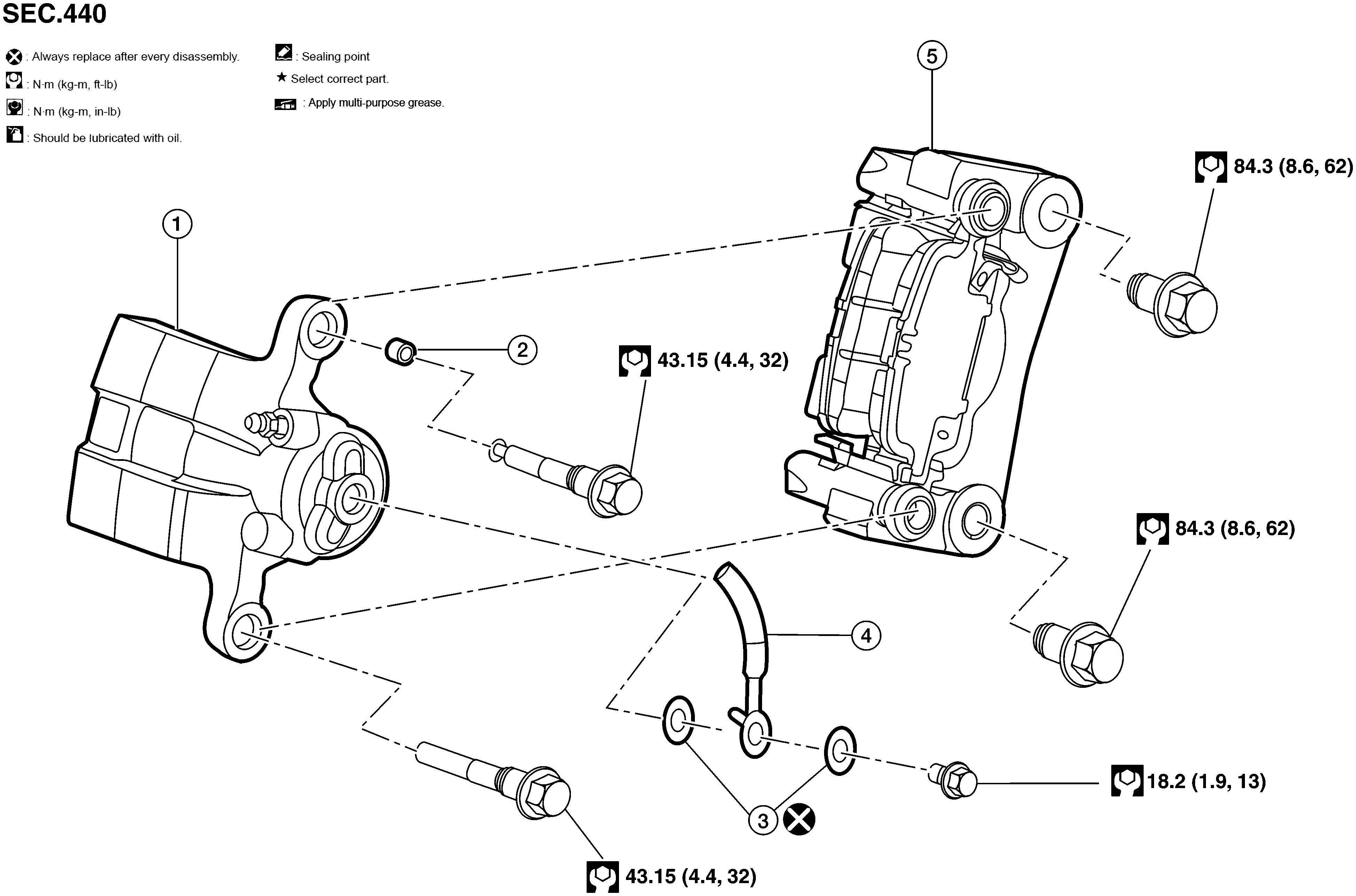

Fig 1: Rear Brake Caliper Assembly Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake caliper	2.	Sliding pin bolt bushing	3.	Copper sealing washer
4.	Brake hose	5.	Torque member
