Hydraulic Piping
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

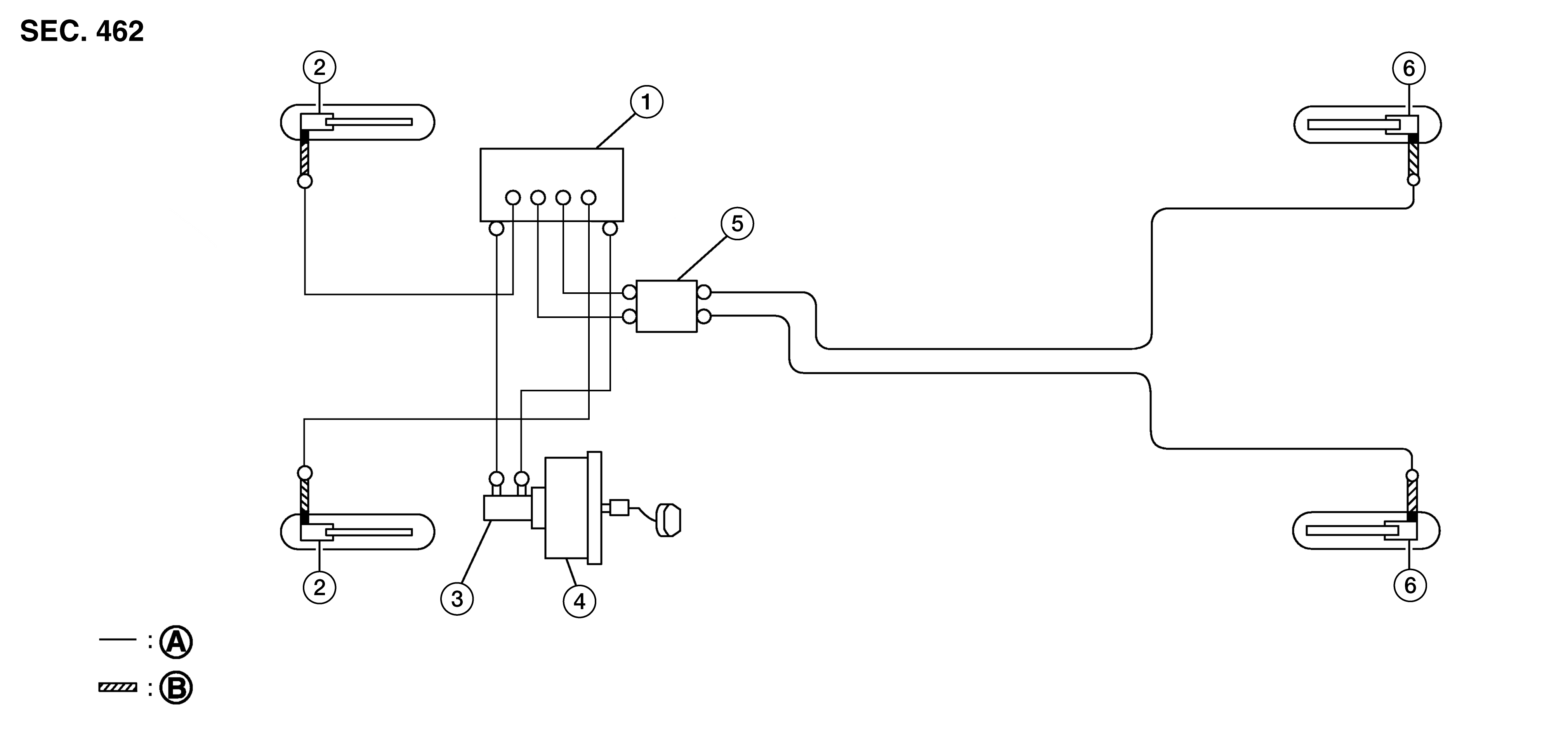

1. |
ABS actuator and electric unit (control unit) |
2. |
Front disc brake |
3. |
Master cylinder assembly |
|
4. |
Brake booster |
5. |
Connector |
6. |
Rear disc brake |
|
A. |
Brake tube |
B. |
Brake hose |
||
|
|
|||||
|
|
|||||
CAUTION:
- Make sure that interference does not exist with other parts when turning steering both clockwise and counterclockwise.
- Do not spill or splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
- Do not bend, twist or pull the brake hoses and piping.
- When removing components, cover connections to avoid dirt, dust, or other foreign matter from entering the brake system.
- Do not reuse drained brake fluid.
- After installation of the ABS actuator and electric unit (control unit), refill brake system with new brake fluid. Then bleed the air from the system. Refer to Bleeding Brake System .
