Inspection After Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Check the following items and replace the brake pedal assembly if necessary.
 Courtesy of NISSAN NORTH AMERICA, INC.
|

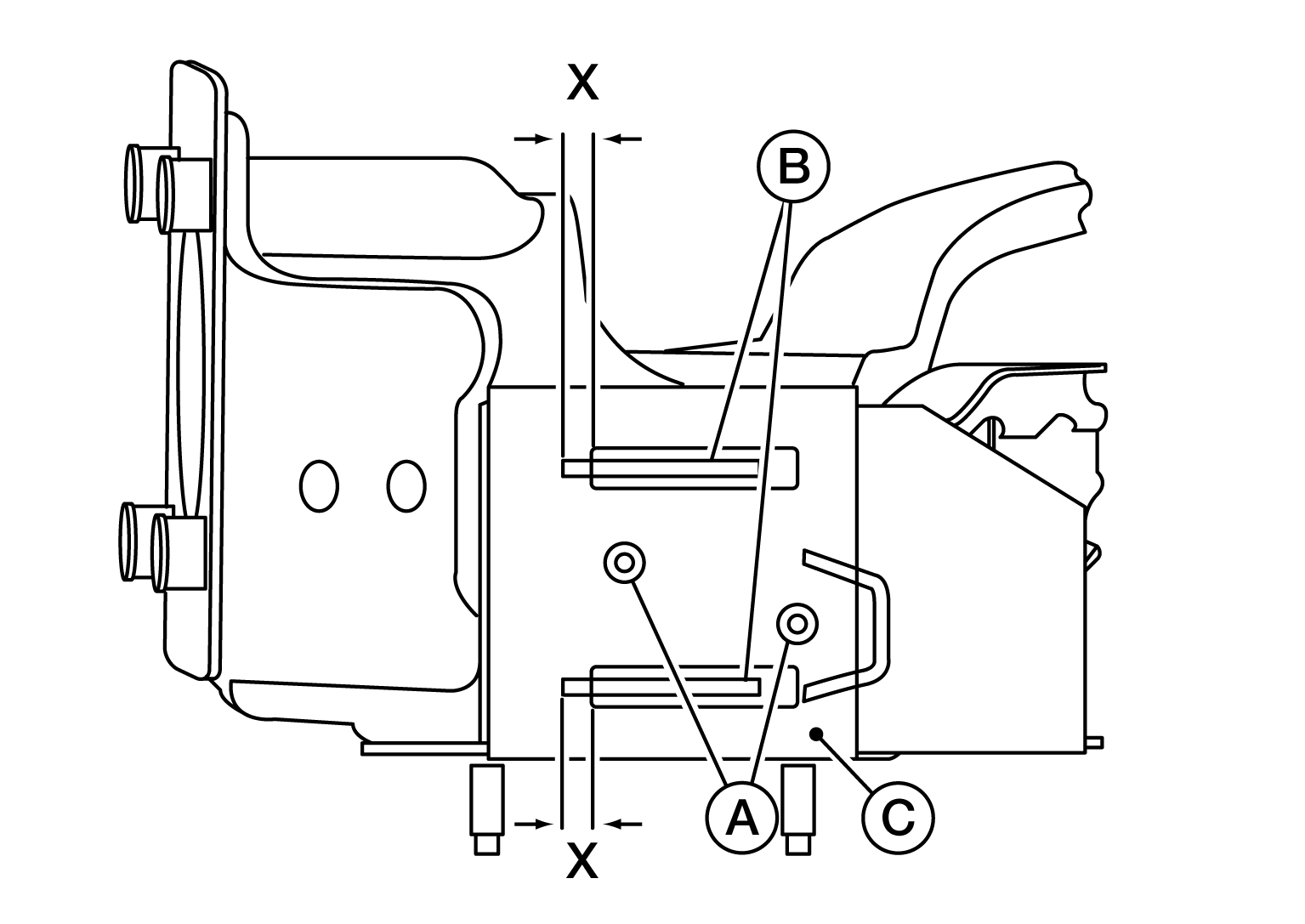

- Check the brake pedal upper rivet (made of aluminum) (A) for deformation.
- Check the brake pedal for bend, damage, and cracks on the welded parts.
- Check the overlap distance (X) of sub-bracket (B) and slide plate (C).
|
Distance (X)
|
: 5.5 +/- 0.5 mm (0.217 +/- 0.020 in)
|
