Commercial Service Tool
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
Tool name
|
Description
|
|

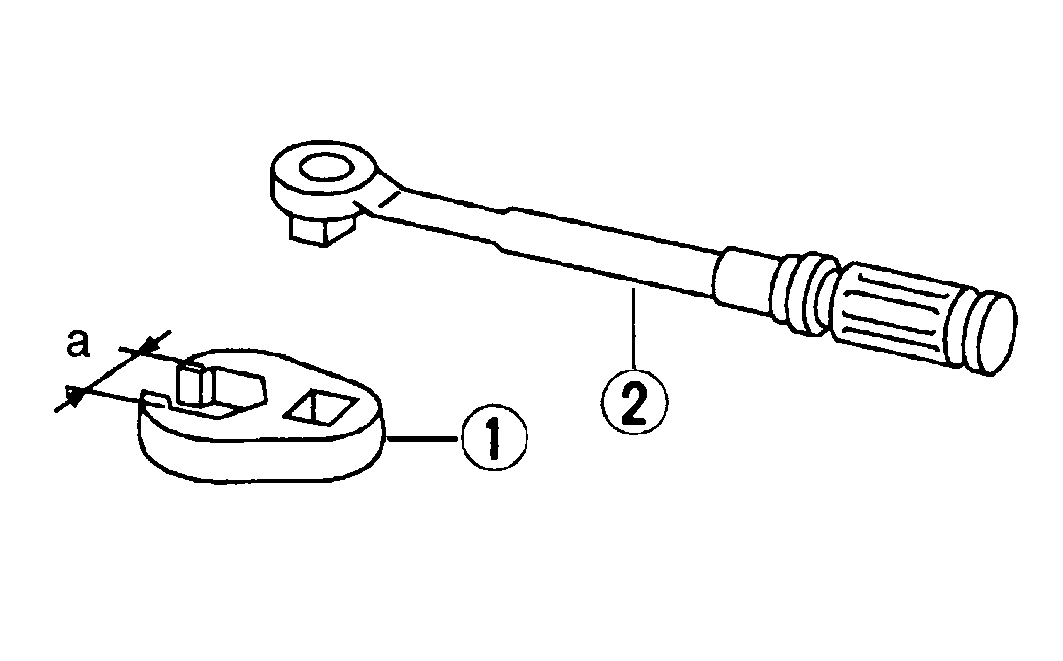

1. Flare nut crowfoot
2. Torque wrench
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
Tightening brake tube flare nuts
a: 10 mm (0.39 in)/12 mm (0.47 in)
|
|
Power tool
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
Loosening nuts, screws and bolts
|
|

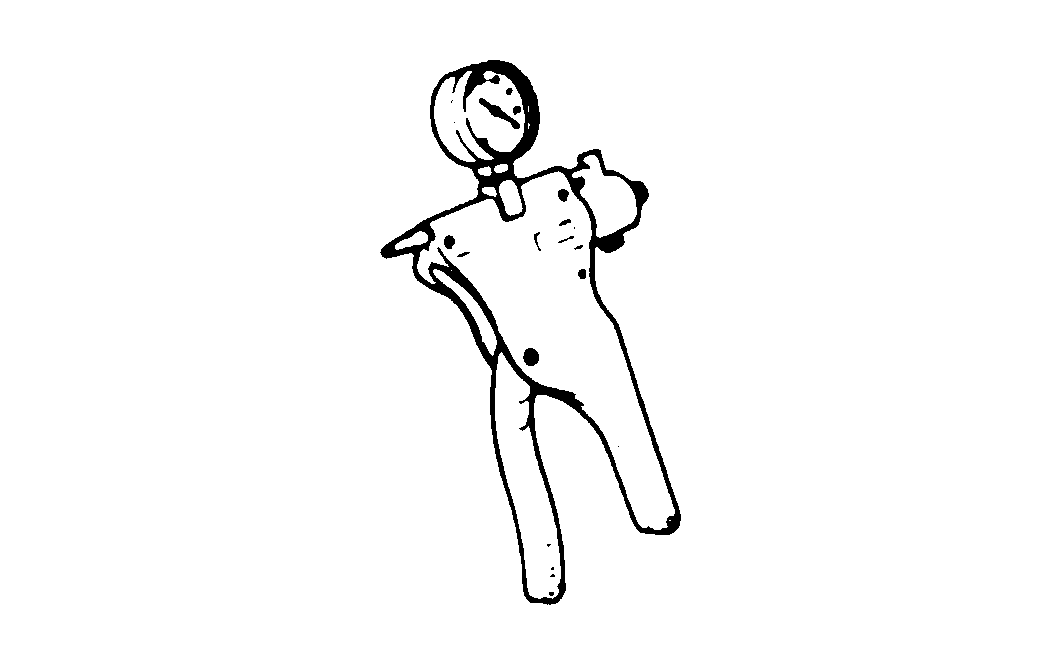

Vacuum pump
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Air tight
- Inspection of check valve
|
