Drain and Refill: Draining

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector or negative battery terminal. Refer to Removal and Installation .
  2. Connect a vinyl tube to bleeder valve.

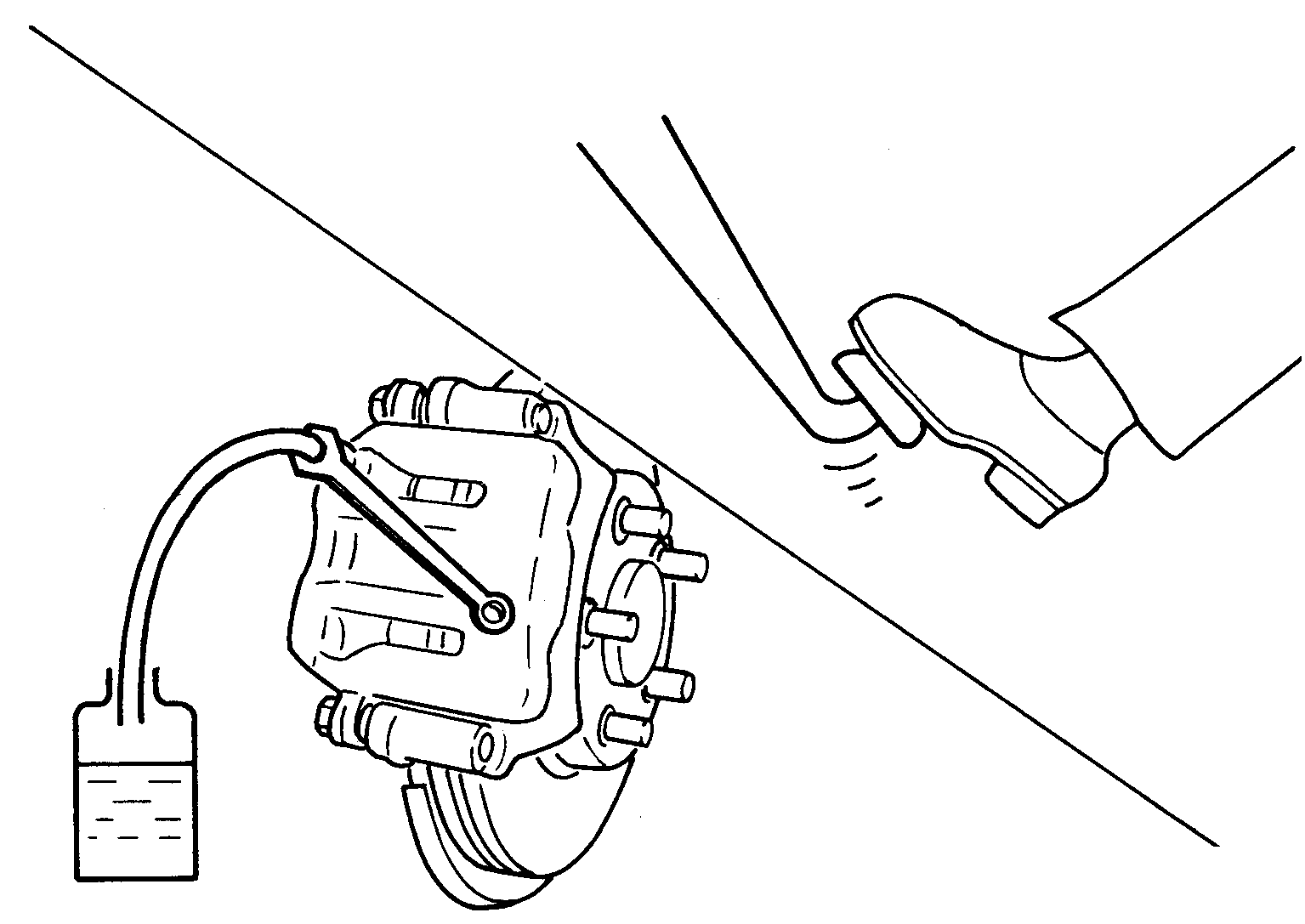

    GNSBRA07D-007Courtesy of NISSAN NORTH AMERICA, INC.
  3. Depress brake pedal, loosen bleeder valve, and gradually remove brake fluid.
