Depressed Brake Pedal Height

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

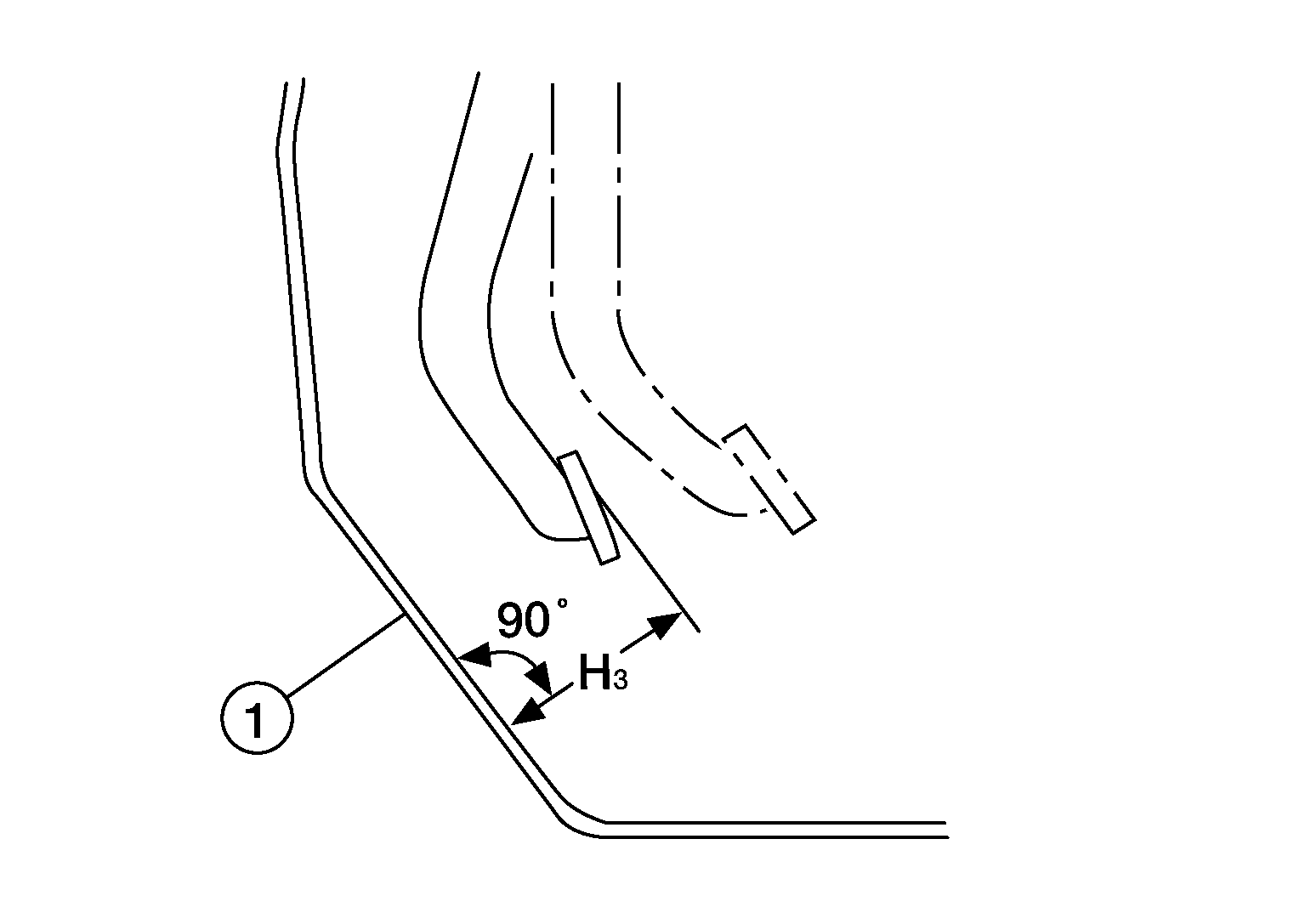

Check the brake pedal height (H ₃ ) between the dash lower panel (1) and the brake pedal upper surface when depressing the brake pedal at 490 N (50 kg, 110 lb) while turning engine ON.

Courtesy of NISSAN NORTH AMERICA, INC.

Depressed brake pedal height (H ₃₎

: Refer to Brake Pedal .

CAUTION: Check the depressed brake pedal height with the floor trim removed.
